6.0 Stage 1 Cam Package - 2003-2007 Ford 6.0L Power Stroke
Part # PP-CAMPKG6.0

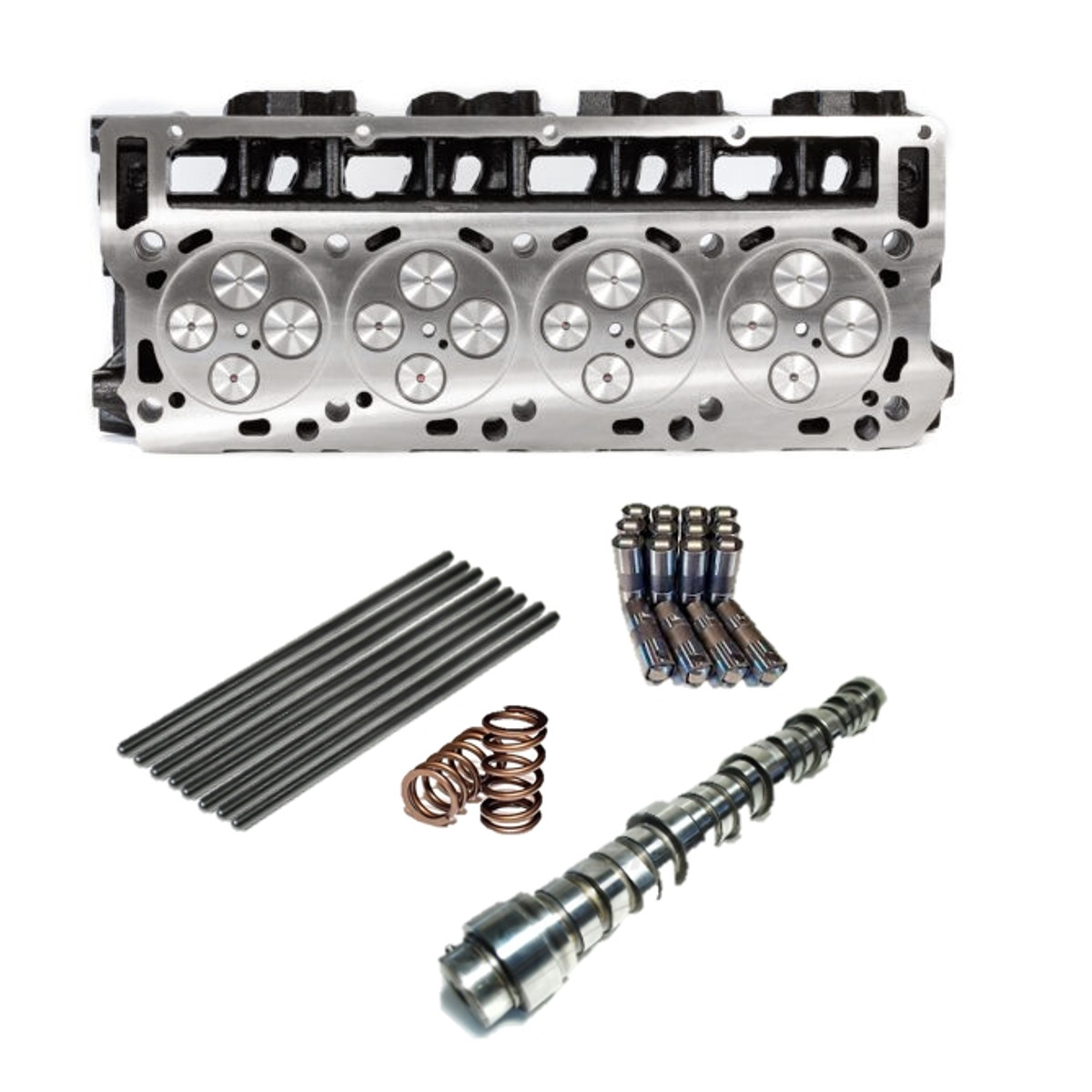

This package contains:
- 1 Stage 1 Performance camshaft 176/196 .255″:/.255″ lift
- 1 set of 4340 chrome moly 9.850 length pushrods
- 1 set of Power Stroke Products lifters
- 1 set of Power Stroke Products HD Springs
CAM
Stage 1 176/196 Camshaft. This Stage 1 cam is designed to give you more power, lower EGT’s and also increase spool-up of your turbocharger. Each camshaft comes ready to install and is backed by the Power-Stroke Products 1-year, unlimited mileage warranty. Drop-in replacement.
SPECIFICATIONS:
Duration @ .50: INT. 176 Deg, Cam Lift: 0.254, Valve Lift: 0.355, LSA: 107
Duration @ .50: EX. 196 Deg, Cam Lift: 0.255, Valve Lift: 0.362, LSA: 107
Rocker Ratio Int: 1.4-1, Exhaust 1.42-1
Application Note:
Zinc additive required.
While this camshaft is a drop-in replacement, clearances should always be checked!
LIFTERS:
These hydraulic roller lifters are sold in sets of 16 and can withstand the abuse from added power and RPM. Because the camshaft and lifters wear together, it is always recommended to replace your lifters whenever installing a new camshaft.
PUSHRODS:
4340 chrome moly 9.850 length pushrods. These pushrods were designed to withstand the stress that comes with building a high performance engine and prevent pushrod deflection which can result in reduced performance and even engine failure.
SPRINGS:
Push your Ford 6.0 Powerstroke to the limit without worry of valve float with a set of Powerstroke Products Heavy Duty Valve Springs. Heavy duty valve springs are a necessity when building large amounts of boost, adding an aggressive camshaft, or operating at higher engine RPM. Powerstroke Products valve springs keep the valves under control which means the valves won’t be forced open by turbo drive pressures either. Sold in a complete set of 32, these valve springs require no modification for installation and are best suited with heavy duty valve spring retainers for a completely upgraded valvetrain.
