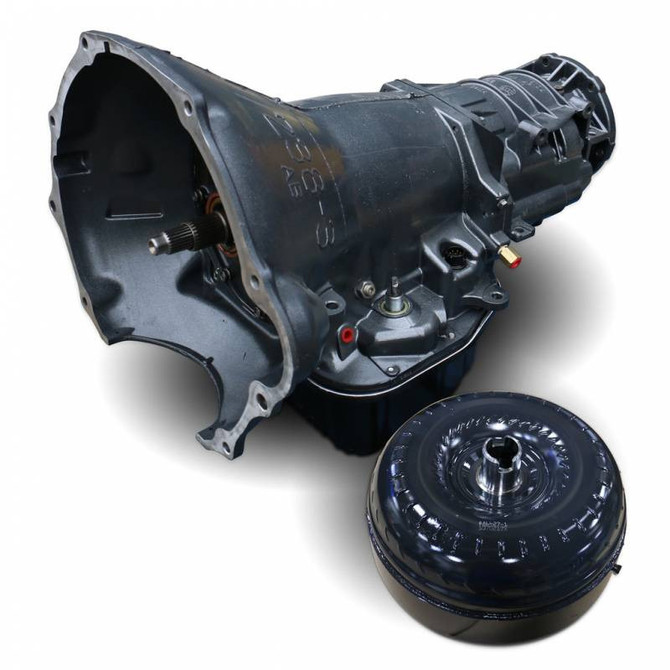

BD - 47RH Transmission Kit - 1994-1995 Dodge 4WD
Part # 1064154BM
- TRANSMISSION:
- Upgraded Valvebody
- Increased line pressure to 190-200psi
- Stock thrust bushings replaced with roller Torrington bearings
- Clutch Count: DIRECT 5
- Clutch Count: FORWARD 5
- Clutch Count: OD 6
- Clutch Count: OD DIRECT 10
- High temp Raybestos band
- Billet band strut
- Billet 300M input shaft
- BD rigid aluminum heavy duty transmission pan
- Pan adds 2qt extra oil capacity
- Pan heat-dissipating fins keep temperature down
- Magnetic drain plug
- Increase the durability of your drivetrain
- BD auxiliary full flow filter kit for extra protection
- Cooler line case saver in every transmission
- Every transmission is tested on a dyno
- Not warranted for Race or Sled Pull use
-
- TORQUE CONVERTOR:
- Triple Disc
- Enhanced Stall - Street/Towing applications
- Machined pistons
- HD springs absorb shock of engagement
- Stamp forged 1-piece cover
- Eliminates warpage from clutch heat
- Taller cover can be rebuilt more often
- Trapezoid teeth design
- Engineered tighter tolerances
- Self-centering teeth design increases contact decreases wear and chatter
- Thrust bearings - not plastic thrust washers
- Riveting process ensures alignment & eliminates vibration or embrittlement from welding
- Cast stator designs maximizes torque
- New sprag components ensure long term durability
- Furnaced brazed fins reduces internal leakage for improved fluid coupling efficiency
- Reduced overall weight by 12lbs compared to competitors
Warranty
Parts
Labour
Note
- No Race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.
