BDS - 4" Lift Kit W/ Radius Arm & T-Case Index Kit - Nitro NX2 Shocks - 2019-2024 Dodge RAM 2500 4WD Diesel 1660H
We will be closed December 24th & 25th for Christmas
and closed January 1st for New Years
We wish you a wonderful holiday season!
Part # 1714H

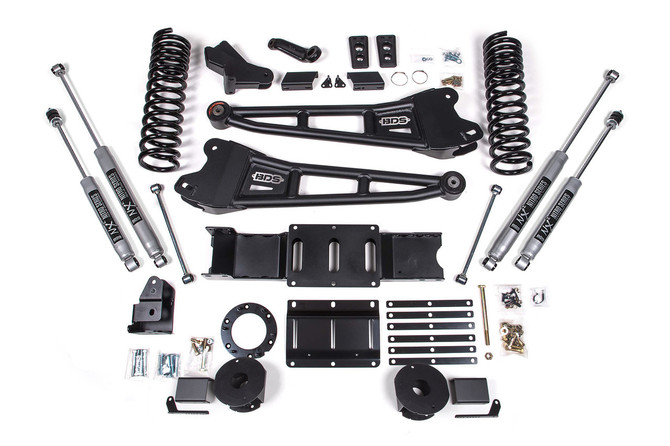

Kit Includes:
0 | BDS1714H | For Models Equiped with Factory Air Ride |
---|---|---|
1 | BDS012358 | 2019-2024 Ram 2500 - 3.5" Rear Air Ride Box Kit |
1 | BDS012431 | 2019-2024 Ram 2500 - 4" Front Box Kit |
1 | BDS122321 | 2013-2024 Ram 2500 - Radius Arm Box Kit |
2 | BDS032403 | 2019-2024 Ram 2500 - Coil 4" Diesel |
1 | BDS122624 | 2019-2024 Ram 2500 - T-Case Index - 6 Bolt - Diesel |
2 | BDS85752 | Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2 |
2 | BDS85764 | Shock- 24.80 x 14.80 x 2 - Special/EB1 |

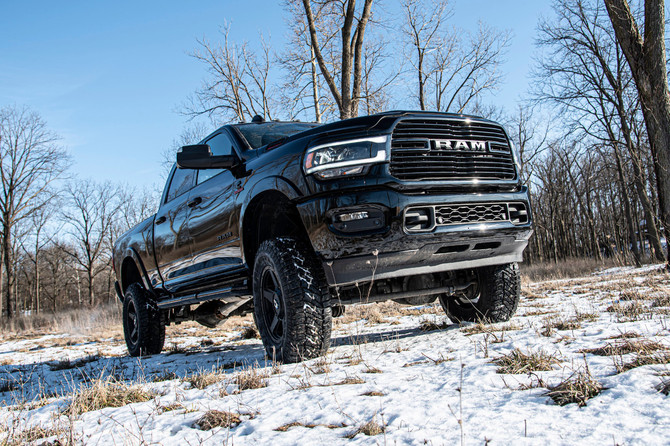

Take your RAM 2500 diesel powered truck to the next level with this 4-inch radius arm lift kit from BDS Suspension. Works with factory rear air ride equipped trucks only. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.
Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 nitrogen charged shocks.
At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes heavy duty rear air bag spacers, track bar relocation bracket to correct axle positioning, bump stop extensions, sway bar links and a matching set of NX2 Nitro Performance shocks.
Features & Benefits
In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.
A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Prevent front driveline issues on your lifted Diesel powered 2019-2024 2500 truck with the BDS transfer case indexing ring kit. At 4" of lift and above it is necessary to index the transfer case to allow the front driveline to reconnect and eliminate vibrations. Designed for 6-bolt flange transmissions, the BDS t-case index ring kit has optimal spline engagement and is dual-drilled to allow positioning for compatibility with a range of lift heights.
Recommended Tires & Wheels
(Trimming may be required)
Year | Make | Model | Submodel | Drive Type | Fuel Type |
---|---|---|---|---|---|
2019 | Ram | 2500 | Big Horn | 4WD | DIESEL |
2019 | Ram | 2500 | Laramie | 4WD | DIESEL |
2019 | Ram | 2500 | Laramie Limited | 4WD | DIESEL |
2019 | Ram | 2500 | Laramie Longhorn | 4WD | DIESEL |
2019 | Ram | 2500 | Limited | 4WD | DIESEL |
2019 | Ram | 2500 | Lone Star | 4WD | DIESEL |
2019 | Ram | 2500 | Tradesman | 4WD | DIESEL |
2020 | Ram | 2500 | Big Horn | 4WD | DIESEL |
2020 | Ram | 2500 | Laramie | 4WD | DIESEL |
2020 | Ram | 2500 | Laramie Limited | 4WD | DIESEL |
2020 | Ram | 2500 | Laramie Longhorn | 4WD | DIESEL |
2020 | Ram | 2500 | Limited | 4WD | DIESEL |
2020 | Ram | 2500 | Lone Star | 4WD | DIESEL |
2020 | Ram | 2500 | Tradesman | 4WD | DIESEL |
2021 | Ram | 2500 | Big Horn | 4WD | DIESEL |
2021 | Ram | 2500 | Laramie | 4WD | DIESEL |
2021 | Ram | 2500 | Laramie Longhorn | 4WD | DIESEL |
2021 | Ram | 2500 | Limited | 4WD | DIESEL |
2021 | Ram | 2500 | Limited Longhorn | 4WD | DIESEL |
2021 | Ram | 2500 | Lone Star | 4WD | DIESEL |
2021 | Ram | 2500 | Tradesman | 4WD | DIESEL |
2022 | Ram | 2500 | Big Horn | 4WD | DIESEL |
2022 | Ram | 2500 | Laramie | 4WD | DIESEL |
2022 | Ram | 2500 | Limited | 4WD | DIESEL |
2022 | Ram | 2500 | Limited Longhorn | 4WD | DIESEL |
2022 | Ram | 2500 | Lone Star | 4WD | DIESEL |
2022 | Ram | 2500 | Tradesman | 4WD | DIESEL |
2023 | Ram | 2500 | Big Horn | 4WD | DIESEL |
2023 | Ram | 2500 | Laramie | 4WD | DIESEL |
2023 | Ram | 2500 | Limited | 4WD | DIESEL |
2023 | Ram | 2500 | Limited Longhorn | 4WD | DIESEL |
2023 | Ram | 2500 | Lone Star | 4WD | DIESEL |
2023 | Ram | 2500 | Tradesman | 4WD | DIESEL |
2024 | Ram | 2500 | Big Horn | 4WD | DIESEL |
2024 | Ram | 2500 | Laramie | 4WD | DIESEL |
2024 | Ram | 2500 | Limited | 4WD | DIESEL |
2024 | Ram | 2500 | Limited Longhorn | 4WD | DIESEL |
2024 | Ram | 2500 | Lone Star | 4WD | DIESEL |
2024 | Ram | 2500 | Tradesman | 4WD | DIESEL |
WARNING : This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov
BDS stands behind its products and that's evident by their No Fine Print Warranty. This warranty protects the original retail purchaser against breakage, bending, sagging, or any other usage failure. We don't care if you jumped your truck off a cliff, lit it on fire, rolled it down a hill, installed Chevy parts on your Ford, or even if you didn't read the instructions and cross threaded a bolt with too many Ugga Duggas! This "no fine print" lifetime replacement warranty extends to cover all BDS hard parts and includes a lifetime warranty on bushings! Exclusions would be product finish and wearable items as described below. All warranties require the customer to provide a Proof of purchase including Name, product, purchase date and price paid.
No Fine Print Warranty ~ If you are the original purchaser of any BDS product and it breaks, they will give you a new part. Period.
BDS NX2 Series Shocks and BDS/Fox Performance Series Shocks:
Shock oil seals are not covered by this Limited Lifetime Warranty because they are subject to wear over time and use. At BDS's discretion, leaking shock seals less than 2 years from date of purchase, free from contamination, damage, or abnormal seal wear due to misuse can be considered for repair or replacement under warranty. A shock absorber is a wear item and over time will experience diminished damping resistance due to normal component wear. This is not a defect in material or workmanship and is therefore not warrantable. Defects in material and workmanship do not include such things as dented cylinders or bent rods caused by obvious side impact, rust or corrosion.
Fox Proprietary Shocks and Coil Overs:
Fox Proprietary parts are covered by their warranty and are not included in the BDS Warranty. BDS may offer to assist with the warranty of defective product, at our discretion. Other warranty concerns should be handled through the Fox Service program. Leaking shock seals less than 1 year from date of purchase, free from contamination, damage, or abnormal seal wear due to misuse can be considered for Warranty. FOX service information can be
found here: https://www.ridefox.com/service.php?m=truck
Ball Joints and Tie Rod Ends:
These items are subject to normal wear over time. However, Ball Joints and Tie Rod ends less than 3 years from the date of purchase, that have been properly greased, maintained, and do not show signs of abnormal use can be considered for warranty.
BDS Suspension's obligation under all warranties is limited to the repair or replacement, at BDS's option, of the defective material. BDS will cover the cost of ground shipping on warranty items, and a return shipping label if we require the warranty part to be returned to us. Any cost of removal, installation or reinstallation, expedited freight charges, incidental or consequential damages are expressly excluded from these warranties. Proof of purchase is required for all warranty claims.
