The Commuter 2.0 system is designed for the customer seeking the best on-road ride quality on a budget. Improve the ride of your daily driver with this entry level system built for comfort while keeping your wallet in mind.
| F250/350 Lift Height | TREMOR Lift Height |
| 3.5" Lift - 2020-2023 F250/350 4x4 Diesel 2.5" Lift - 2017-2019 F250/350 4x4 Diesel |
1.5″ |
| Front Travel | Rear Travel |
| 9″ | 12.3″ |
| Shock Diameter | Tire Fitment |
| 2″ | 37″ x 12.5″ |
The below two Systems are identical in configuration separated ONLY by the internal shock valving. The "PAP" (Progressive Add-a-Pack) suffix denotes an internal valving profile matched to those running stock rear springs. Whether the customer elects to run a factory spring, or a Carli progressive Add-a-Pack, this would be the proper selection. The "FSP" (Full Progressive Leaf Spring Pack) suffix denotes the better riding system as it is matched to the Carli Full Progressive Rear Leaf Spring that rides far better than the factory spring.

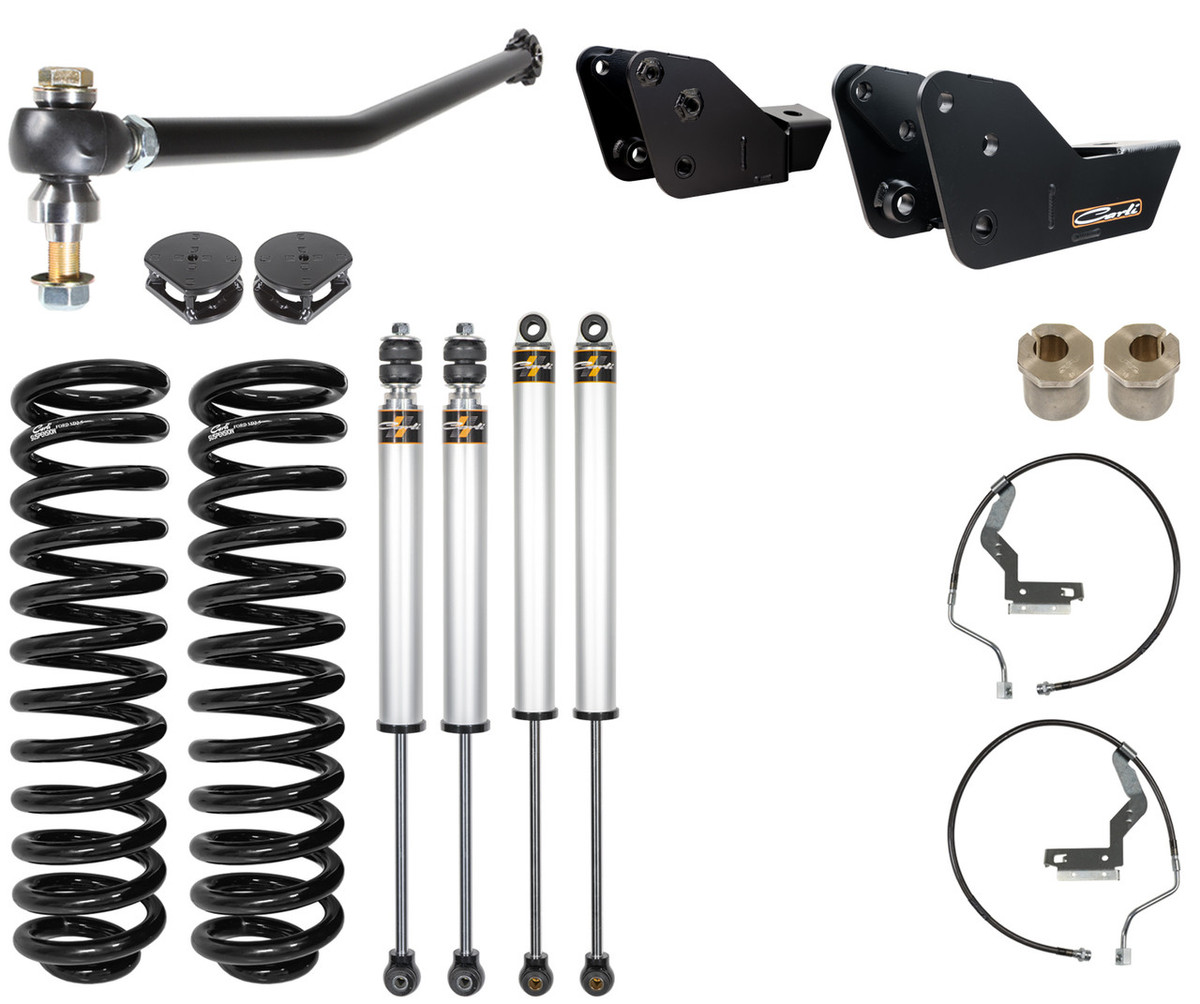

Base Kit Includes:
| CS-FLC-05 | Front Leveling Coils |
| AS-FLVLSPKG-CS20IFP-A OR AS-FLVLSPKG-CS20IFP-B |
Carli SPEC 2.0" IFP Shocks, Front and Rear, PAP or FSP Valving |
| CS-FBDF-25-17 | Front Bump Drops |
| CS-FORDBBL-LVL-17-F | Front Brake Lines |
| CS-FCASTERSHIM-25 | 2° Caster Shims |
| CS-FATB-17 | Track Bar |
*REQUIRED* - The Commuter System has been optimized for use with the Torsion Sway Bar; this sway bar upgrade is a HUGE ride quality upgrade. Maintaining the factory sway bar through use of the Sway Bar Drops or Extended Link Kit is only recommended for customers with snow-plows, in-bed campers or who are constantly hauling to the capacity of the truck.
Corrects Geometry in Carli Leveling Suspensions
*ONE REQUIRED* - Our "PAP" base kit pair to stock springs or Carli add-a-packs. The "FSP" system pairs to the Carli Full Leaf Springs. Optimal Ride Comfort and hauling capability will be the Carli FSP kit + Full Leaf Springs and an Airbag Supplement (contact your retailer for recommendations as we do not make airbags for the leveling height). For those not wanting to run airbags, the PAP kit combined with Stock leaf springs (or Carli Add-a-Packs) is the best option. This is far more limited in ride quality than the FSP counterpart but the tuning squeezes as much ride quality from the factory spring as possible with its massive capacity.
Or No Rear Leaf Spring Selection - See the long description below for more details on running no rear leaf spring option.
*OPTIONAL BUT RECOMMENDED* Much of the jarring ride of the Super Duty rear can be attributed to the factory vulcanized bushings in the leaf spring pack and shackle. The factory shackle is very strong BUT the design is not conducive to a smooth ride. The Carli shackle is constructed of 1/4″ American cold-rolled steel. The mid-length gusset ensures no deflection while the serviceable bushings offer a far superior ride to the bind of the factory bushings.
SKU: CS-FSHACKLE-11
- Greasable and Rebuildable
- Far Better Ride than Factory Shackle
- 1/4" Steel Construction
- Fits Factory and Carli Springs
*OPTIONAL BUT RECOMMENDED* When modifying the rear leaf springs (add-a-pack or Full Spring Pack) of the 2017+ Super Duty platform, there's a small chance you'll induce a driveline vibration around 70mph when under power from the rear drive-line. These pinion shims will correct the angle to 4°-5°, ideal for our lifted applications. Although these will not be "required" on every truck, we've found the 4°-5° spec to be superior in our applications and these are FAR easier to install initially than correctively.
SKU: CS-FPSKIT-3X2
- 2° Pinion Shim Kit
- Includes new Center Pin
*OPTIONAL* - Icing on the cake, these arms add Additional Tire Clearance, Limit Strap Protection for your Front Shocks, 1/4" Boxed Steel Constructions, Serviceable 17-4 Stainless Spherical Bearings and Adjustable Caster Correction up to 3.5° over stock specs to leave Death-Wobble in the rear-view.
SKU: CS-FARA-LVL-05
- 0.5°-2.5° of adjustable Caster correction
- 3/16 Construction, Fully Internal Gusseted with 1/2" Additional Tire Clearance
- 12" Limit Straps Kit Included
- 17-4 Stainless Spherical Joint for longevity and bind free Cycling
- Fitment: 2005-22 Ford F250/350 4x4
*OPTIONAL* - Bolt in replacement for the factory stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the right-hand pull inherent to tires like Toyo Mud Terrains.
SKU: CS-FHMSS-17
- Long Lasting Performance and Appearance
- Bolt in Replacement for OEM Stabilizer
- Works on leveled and lifted trucks ONLY
- Not Compatible with Drop Pitman Arms
*OPTIONAL* - Bolt in steering stabilizer which compliments a Carli, or factory, high mount stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers. Run in conjunction with the Carli High Mount for the ultimate Dual, Opposing Steering Stabilizer combination that's infinitely adjustable.
SKU: CS-FLMSS-05
- Custom Valved for Larger Tires, Adjustable Nitrogen Pressure
- Includes Differential Guard and Clamp
- Combines with High-Mount Stabilizer for Opposing Setup
- Fitment: 2005-22 Ford F250/350 4x4
- Optimized for Carli 2.5"-5.5" Systems
*OPTIONAL* - Get your over-sized spare out of your bed - crank it into the factory location and secure it with our 3-way tie-down with the Carli Trophy hitch. Boasting 16,000lbs. of capacity via the 3" hitch receiver, direct bolt in installation, and up to a 38" spare tire in the factory location!
SKU: CS-FHITCH-1723
- Direct Bolt in, Rated to 16,000lbs., 3" Hitch Receiver
- 3/16" and 1/4" Cold-Rolled American Steel
- Utilizes Factory Winch + 3-way Tie-Down to Secure Spare
- 38" Spare Tire in the Factory Location
- May Require Exhaust Modification
- Requires 5/8" x 4" (usable shank) Hitch Pin
COMMUTER LEVELING SYSTEM - IN DEPTH
The Super Duty Commuter 2.0 system is designed for people seeking the best on-road ride quality that don't plan to off-road their vehicle beyond low-speed trail driving. Utilizing Carli SPEC 2.0″ Diameter, Internal Reservoir shocks, we've developed a tune that delivers all-around comfort and ride quality designed for on-road, in town, highway, and towing/hauling.
The mono-tube, internal reservoir, Carli SPEC 2.0 boasts 6063 Aluminum construction, anodized body for corrosion resistance, 5/8″ hardened steel chrome plated shaft, full serviceability & rebuildability and are built with 1-peice bushings in the 6061 billet rod-ends. These shocks are spec'd with a premium 5WT oil to balance lubricity, consistent damping and the widest available range in temperature variation.
The truck will sit 3.5" higher in the front and have more wheel travel thanks to the lighter rate Carli Coil Springs. The Adjustable Track Bar centers the front axle and Stainless Brake Lines firm up braking and ensure there is enough line for the newfound travel. To round off the front end, we include Caster Shims to tighten the steering and a fabricated, High-Clearance Bump Stop Drop to keep the springs clear from the contacting the factory bump stop. The front Sway Bar Geometry will need to be addressed with your choice of a Sway Bar Drop Bracket (more economical, maintains the factory Sway Bar End Links) or our Extended Sway Bar links with relocation brackets - a FAR more robust option. For those seeking the most possible ride quality, we offer our full replacement Torsion Sway Bar that lightens the most neglected spring rate - the factory sway bar. From the Torsion Sway bar upgrade, one can expect a far more compliant feel and increased articulation with only slightly more body roll.
The rear can be outfitted with one of 3 options:
Wheel and Tire: Factory Wheels SHOULD NOT be run with oversized tires. They're known to rub the radius arm, sway bar and most concerning - Brake Lines. Factory tires and factory wheels will work without issue but we DO NOT recommend running oversized tires on factory wheels. On our 3.5" Ford Systems, we recommend 17"-18" wheels, no more than 9" wide with 5.5" of backspacing with Carli Fabricated Radius Arms or 5" Backspace with factory arms; 5" will require a bit more trimming. Tires, 37×12.5" will fit with some trimming; 35" will likely fit without trimming. The more rubber, the better the small bump compliance will be at proper inflation pressures. The ride will firm up as you go larger in wheel diameter.
