Carli High-Mount Stabilizers minimize resonation transfer of road obstacles to the front-end which helps combat handling issues like Death Wobble. A stainless body, hardened nitride shaft, and quallity bearings deliver reliable performance.
Carli Stainless High-Mount Steering Stabilizer Kit, 2019-24 Ram 2500/3500, 4x4
- Fits 2019-and-up Ram 2500/3500, 4×4, including Power Wagon
- Also fits 2014-18 Ram 2500/3500, 4×4 with '19-and-up drag link
- Simple, bolt-in installation with 3/16” gusseted rolled steel bracket
- Corrects right-hand tire pull, combats Death Wobble
- Unit is adjustable to fine-tune steering feedback
- Combines with Low-Mount Stabilizer for opposing stabilization
Carli High-Mount Stabilizers minimize resonation transfer from encountered road obstacles to the front-end assembly which adds a confident balanced feel during cornering and is critical to combat handling issues like Death Wobble. The stabilizers feature a stainless-steel body, hardened nitride shaft, and precision bearings for reliable, long-lasting performance in the harshest off-road situations. Their stainless-steel design is far superior to the factory unit boasting a custom valve profile improving control of larger aftermarket wheel and tire combinations, offered adjustability to combat right-hand tire pull and is fully rebuildable all while bolting into the factory location ensuring it’s not susceptible to trail damage like many aftermarket stabilizer units are that mount in front of lower steering linkage.
Base Kit Includes:
| Part Number |
Description |
| CS-DHMHK-19 |
19-24 RAM 2500/3500 4X4 HIGH MOUNT STEERING STABILIZER HARDWARE KIT |
| CS-HMSS-STK |
UNIVERSAL - HIGH MOUNT STABILIZER SHOCK & MISALIGNMENT STUD - SHORT ROD END |

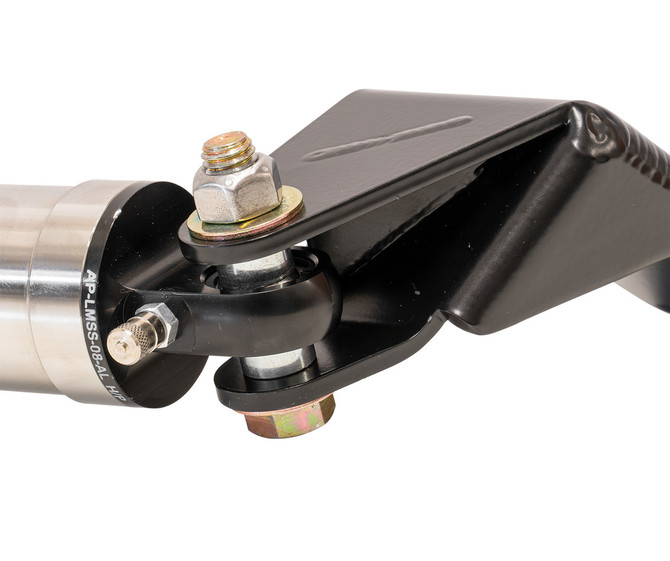

The 2019+ High Mount Steering Stabilizer saw a complete redesign from it's predecessor to fit the updated steering drag-link.We designed a bracket from doubled-up 3/16″, cold-rolled US steel welded together and gusseted to create the ultra-strong, 3/8″ thick bracket that sandwiches between the frame and the sway bar to hold the stabilizer's body-end.
Given the thickness of the body-side bracket, we include longer hardware and a powder-coated 3/8″ spacer to level the sway bar to the passenger side.
An in-house CNC billet clamp that's hard anodized butts-up to the adjustment collar to locate and secure the rod-end side via our 17-4 stainless steel high-misalignment stud.
Most impressive, YES, it'll fit the Power Wagon as well!
This High-Mount Steering Stabilizer will push to the LEFT to counter a right-hand radial tire pull (commonly found on Toyo MT tires) OR it can be adjusted to a neutral pressure to provide superior damping without offering any directional correction.
For the ultimate in stabilization, combine this High-Mount Steering Stabilizer with our Low Mount Steering Stabilizer which installs in place of the Factory stabilizer.
A higher nitrogen charge in the Low-mount stabilizer pushes to the RIGHT to counter-act a left hand tire pull. Running both our high and low mount steering stabilizers results in true, opposing stabilization that can be set to neutral or adjusted to correct radial pull in EITHER direction while providing one shock per steering link for unparalleled steering control!
Recommended Configurations:
- The High-Mount Steering Stabilizer is meant to work in conjunction with a Low-Mount Stabilizer (Factory or Carli). Running the High-Mount by itself will not damage the shock but will not provide the proper leverage to properly control the steering linkage.
- If installing the Carli high-mount with a factory lower steering stabilizer: Our Stabilizers come pre-charged with 200PSI of Nitrogen. If you encounter a left-hand pull, find a flat road with NO crown. Drive straight and let go of the wheel. If the truck drifts to the left, pull over, remove the schrader cap and remove N2 pressure by depressing the Schrader FOR A FRACTION OF A SECOND (RELEASE AS LITTLE AS POSSIBLE). Drive the truck and repeat until the truck drives straight. Best case, add the Carli-low mount stabilizer to alleviate with a secondary nitrogen charged unit!
- Combine the High Mount Stabilizer with the Carli Low-Mount Steering Stabilizer for a true, opposing steering stabilizer setup that's infinitely adjustable.
