Unlike the rigid stock bar, Carli Torsion Sway Bars allow a small amount of differentiation side-to-side motion before progressively engaging to add the needed control as leverage is applied, increasing ride comfort on the road or trail.

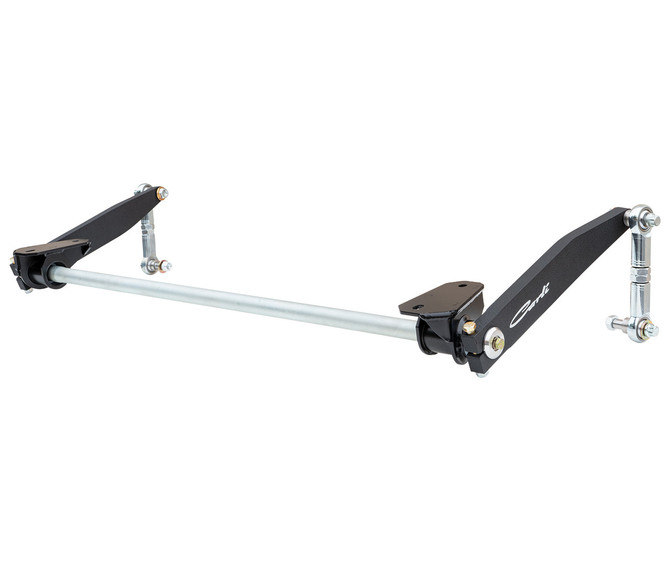

Carli Torsion Sway Bar, 0” to 4" Lift, 2013*-24 Ram 2500/3500, 4x4
- Fits 2014 to 2022 Ram 2500/3500, 4x4
- Compatible with zero to 4-inch lift
- Enhances ride quality by allowing front suspension to move freely without giving up control
- 2014 - 2024 RAM 2500 4x4
- 2013 - 2024 RAM 3500 4x4
The factory sway bar is nearly immobile. So, it’s no surprise that it’s the most neglected ride-oriented component on the vehicle as people fail to look past the front coils and rear leaf springs when looking to “soften” the factory ride. The factory sway bar is essentially a brace locking the axle to the frame. It is setup to perform at the vehicle’s max load so it can be a bit blunt when the truck is not fully laden. The Carli Torsion Sway Bar splits the difference allowing a small amount of differentiation side-to-side movement before progressively engaging to add the needed control as leverage is applied. Rip corners in the dirt with surgical precision knowing there’s exactly enough rate to hold the body steady while cutting your line through the turn. Hit the tarmac and enjoy the benefit of the lighter rate bar cruising around town with the vehicle’s on-road feel reminiscent of an independent front suspension – no more intrusive chassis chatter on small bumps.
PRODUCT NOTES
- Requires removal of electronic sway bar on Power Wagons
Base Kit Includes:
| Part Number |
Description |
| CS-DTSBBRKT3-1419 |
14-24 RAM 2500 - 13-24 RAM 3500 4X4 TORSION SWAY BAR FRAME BRACKET, BUSHINGS AND HARDWARE - 3" |
| CS-DTSBKIT |
03-24 RAM 2500/3500 4X4 TORSION SWAY BAR, ARMS & END LINK KIT |
CARLI - RAM TORSION SWAY BAR - IN DEPTH
Like any other spring native to a stock RAM HD, the factory Sway Bar is nearly immobile. Conversely, it's the most neglected spring on the vehicle as people fail to look past the front coils and rear springs when looking to "soften" the factory ride. Well, the factory sway bar is essentially a brace locking the axle to the frame. What does this mean? What you hit with one tire is immediately transferred to the other tire and into the frame causing a high frequency reverberation/chatter felt in the cab. If you've ever hit a manhole cover on the driver's side tire and felt a shake in the entire truck or you've ever entered an off-camber driveway and smacked your head on the window - you can thank the factory sway bar. Truth be told, it's responsible for many of the small-bump compliance gripes thanks to immobility.
So where does the factory sway bar come in? These trucks are heavy pigs… Even being radius arms (MUCH better for sway control than a 4-Link), a bit of supporting spring rate plays a substantial roll in keeping the body roll in check and suspension composed. The Factory sway bar is setup to load the truck to it's MAX legal weight and haul it safely - for this application, there's no better bar. Throw a 3,500 pound cab-over camper in the bed and hit some remote mountain roads en-route to your destination and it all starts to make sense why Ford did what they did.
For everyone that's not loaded to the GVWR daily, the Carli Torsion Sway Bar provides the final link lightening the last spring on the truck maximizing the ride quality of the RAM HD Platform. Keeping your factory bar limits comfort, removing it completely makes for questionable control when hauling or emergency maneuvering. After several revisions and years in development, the Carli Torsion Sway Bar Splits the Difference perfectly allowing a small amount of differentiation side to side before progressively engaging to add the needed control as leverage is applied. Rip corners in the dirt with surgical precision knowing there's exactly enough rate to hold the body steady while cutting your line through the dirt. Hit the tarmac and enjoy the benefit of the lighter rate bar cruising around town with it's on-road feel reminiscent of an independent front suspension - no more chassis reverberation on small bumps and let the suspension dance in the level cab while hitting off-camber driveways.
The arms are constructed of doubled and welded 3/8″ cold-rolled steel - 3/4″ thick at clamp area. The arms are locked to the bar by our in-house machined 17-4 stainless preload washers and Grade 8 pinch Bolts. The bar itself is a custom rate, heat treated torsion bar passing through fabricated brackets that house our extreme duty, service free bushings. Finishing off the assembly are Sway Bar End Links featuring legendary FK Bearing 5/8″ Heat-Treated, Chromoly Race Heims.
This bar is designed to work with 2.5-4″ lift systems. In typical Carli fashion, there are no disconnects on the end links nor multiple holes in the bar to change the leverage applied. This bar is refined to work in conjunction with our custom tuned suspensions to throw an exponent on the ride quality. The rate is set, the bar will not hinder articulation justifying a disconnect. The Rate is the perfect balance splitting control and comfort - install and enjoy!
