Choate Engineering Performance CHOATE 6.6L Workhorse - Long Block Engine - 2011-2016 GM 6.6L LML Duramax CEP66LLMLW
Choate Engineering Performance CHOATE 6.6L Workhorse - Long Block Engine - 2011-2016 GM 6.6L LML Duramax CEP66LLMLW
Choate Engineering Performance CHOATE 6.6L Workhorse - Long Block Engine - 2011-2016 GM 6.6L LML Duramax CEP66LLMLW

Choate Engineering Performance

CHOATE 6.6L Workhorse - Long Block Engine - 2011-2016 GM 6.6L LML Duramax CEP66LLMLW

0 review Write a Review
SKU: CHOCEP66LLMLW
$16,100.00
Freight (Continental US): +$750.00

Short Description

Refundable Core Charge: $1500

More Information

CORE CHARGE OPTIONS

Core Charge Agreement - If selecting to SEND CORE IN FIRST above, I understand that I will need to send in my core items first and have them accepted before the shipment of the new part or parts is authorized. If I select to pay the core charge, I understand that my part or parts can ship as soon as available.
Hurry up! Current stock:
Product Details

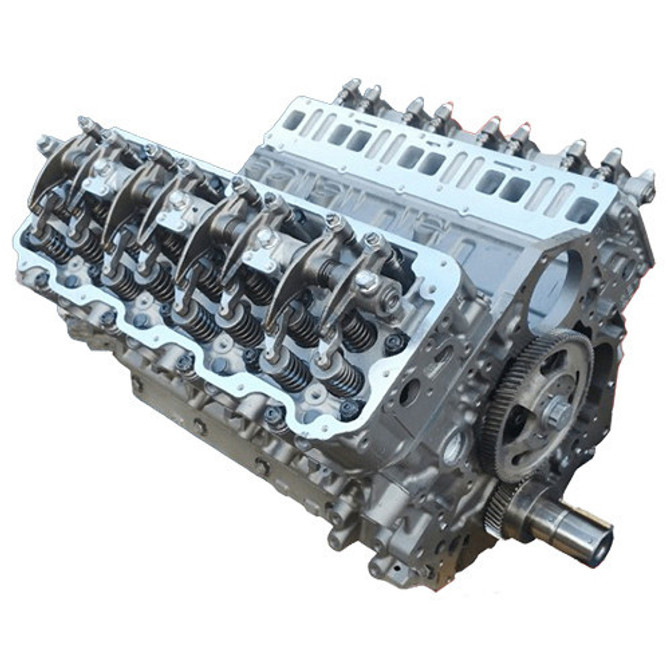

CHOATE 6.6L Workhorse - Long Block Engine - 2011-2016 GM 6.6L LML Duramax

Part # CEP66LLMLW

Workhorse series engines: 600 HP rated. Designed with the working man in mind. The perfect platform for those who do heavy hauling regularly. Fully balanced and blueprinted.

Upgrades to Workhorse include but are not limited to:

  • 6.6L 2011-2016 Duramax LML
  • Long Block Workhorse
  • Chromoly Pushrods
  • Stage 2 Cam Shaft
  • O-Ringed Heads
  • Coated, Flycut and Deliped Pistons, Torque Plate Honing
  • Head Studs
  • New Flex Plate
  • New Harmonic Balancer.

**Optional Parts are not installed. Optional parts are covered under the manufactures warranty and not by CHOATE.**

This build also includes:

– Full CNC blueprint machining, (bore, deck, hone, and line honed) – The Cylinder bores are blue print bored to a true 90 degrees from the crankshaft center line, prior to being diamond honed to within .0002″ for precise piston to cylinder bore clearances. We main bore and line hone the crankshaft which is honed to precisely align the crankshaft in the engine block. We bore the block back to the crankshaft center line and hone the block to RA13 finish. The piston diameter measured to the nearest .0001″ matched to cylinder bores. The Cylinder block is surfaced to a finish of RA30 or lower, which meets the factory specification in both flatness and smoothness for the block to head sealing surface. This is mandatory for proper sealing of a MLS Gasket.

– Connecting Rods, New Damper and New Flexplate with automatic transmissions. – Check both wrist pin and crank pin to rod clearances.

– New upgraded Pistons .10 – .30″ over – New Pistons, Rings, Pin Retainers weight matched prior to crank balancing

– Crankshaft – Balanced with the Rotational assembly checked for run-out inspected for fatigue. Crankshaft is Polished and ground to .0005 concentricity or less

-New Rod, Main and Cam Bearings

– Camshaft – Polished and Inspected

-Install Rear Main Seal

-Install New Bed Seals

-Install New Rear Cover Gasket

-Install Upper and Lower Oil Pan Gaskets

-Install Pickup Tube O-ring

-Rear Cover Installed

  • Assembled by Our Professional Team in house
  • Perfect for those who do heavy hauling regularly. (not intended for commercial use).
  • 5 year 100K limited warranty on our Workhorse builds with upgrade-able options

NOTES:

By buying you agree to have the engine core ready for pickup and return to us within 30 days of receiving the engine. Failure to do so will void your warranty.

Core will be inspected and must meet our specifications to deem it a good usable core. Mainline and crank must meet our specs as well. The engine will be shipped to Choate Engineering Performance in shrink wrap on a non returnable wooden pallet & the appropriate core charge due.

Once inspected appropriate core fees will be kept and balance remaining will be refunded promptly in the form of a check.

We require a like for like core- meaning if we send you a long block we require everything from your core long block to be usable and machinable.

We will need the year, make, model, and vin number to make sure you are buying the correct engine before we ship. We must know if the transmission is manual or automatic as this effects prices and usability. *if transmission is manual, we suggest purchasing a flywheel so we can balance it to a new flywheel. If customers flywheel is used the engine will be balanced to a stock flywheel.*

WARNING : This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov

Warranty Information

WORKHORSE SERIES ENGINE

5 Year / 100,000 Miles

THIS WARRANTY IS NOT A FULL COVERAGE WARRANTY. PLEASE REVIEW YOUR WARRANTY CAREFULLY.

  • This warranty covers Choate remanufactured Long Block Workhorse Series engines. Years 1-2 are 25,000 miles, parts, labor, and the remaining years 3-5 are 75,000 miles parts only.
  • Gasket and seal leaks are limited to 6 months or 12,500 miles for parts and labor, 1 year on parts. Except for short blocks, they are not covered at all for gasket and seal leaks
  • Accessory warranties, including Turbos and Injectors, are covered by the warranty of the supplying manufacturers.
  • Engine warranties are void if the engine is not installed with all the following: A new oil cooler, a new oil pump, a new water pump, new air compressor (if applicable), new lubricating oil, and all new filters (oil, air, fuel).
  • Labor rates are restricted to $50.00/hr. shop rate using Mitchell flat rate times.



LABOR RATE FOR PREFERED DEALER ONLY is a higher shop rate using Mitchel Flat rate time.

FITMENT
