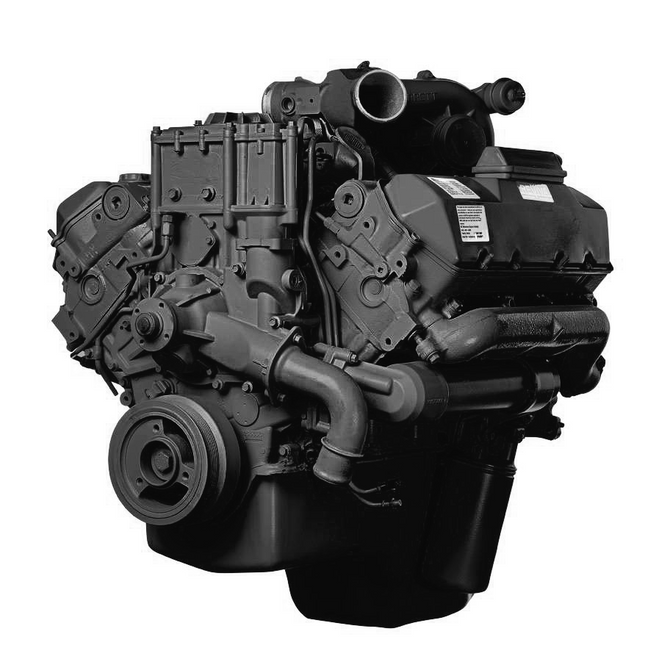

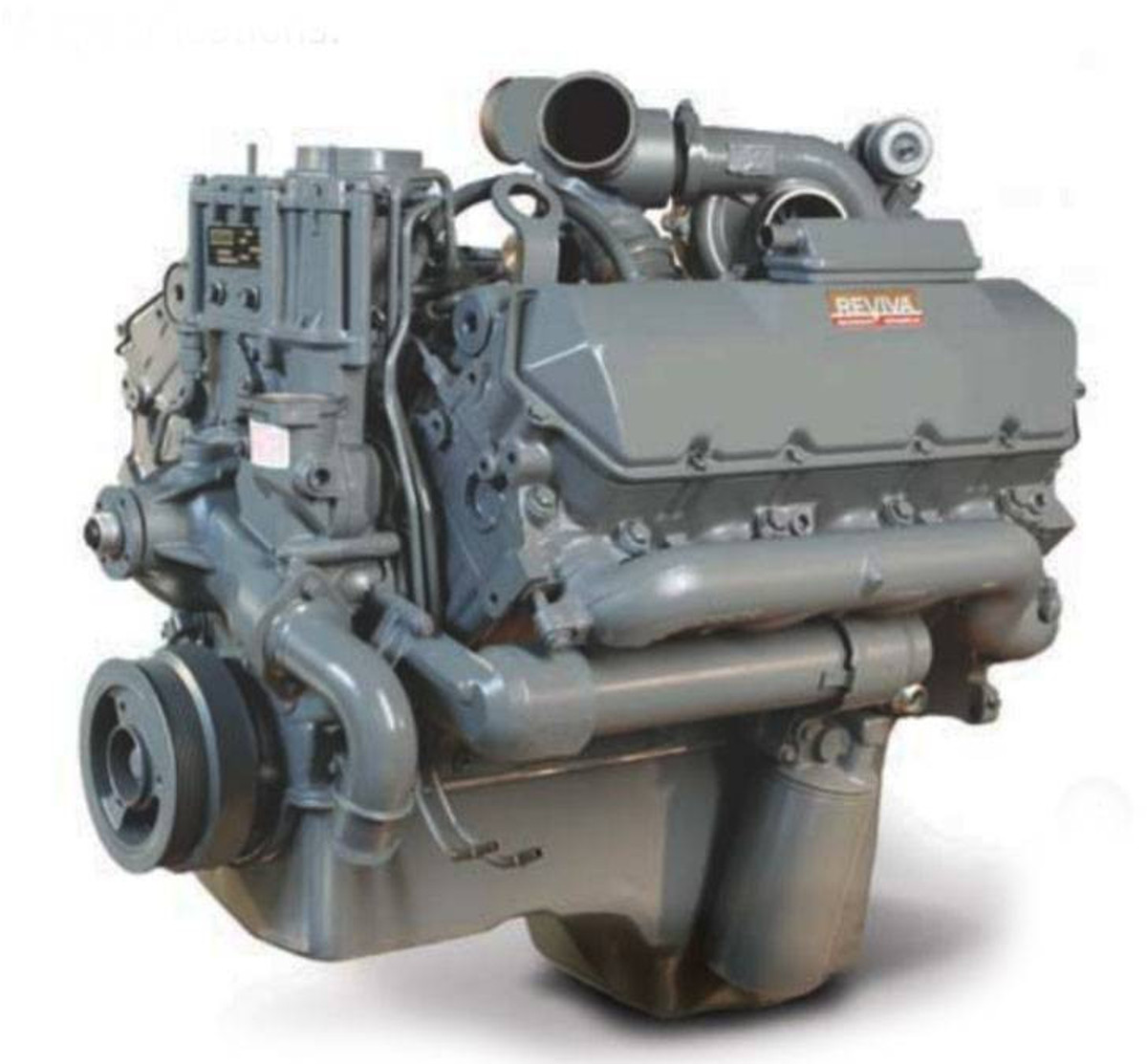

Reviva Remanufactured Diesel Engines Drop-In Engine - 1994-1995 Ford 7.3L Power Stroke F250 - F550 59F4D215F
Reviva Remanufactured Diesel Engines Drop-In Engine - 1994-1995 Ford 7.3L Power Stroke F250 - F550 59F4D215F
Reviva Remanufactured Diesel Engines Drop-In Engine - 1994-1995 Ford 7.3L Power Stroke F250 - F550 59F4D215F

Reviva Remanufactured Diesel Engines

Drop-In Engine - 1994-1995 Ford 7.3L Power Stroke F250 - F550 59F4D215F

0 review Write a Review
SKU: DMC59F4D215F
$9,989.45
Free Ground Shipping (Continental US)

Short Description

Refundable Core Charge: $2250

More Information

CORE CHARGE OPTIONS

Core Charge Agreement - If selecting to SEND CORE IN FIRST above, I understand that I will need to send in my core items first and have them accepted before the shipment of the new part or parts is authorized. If I select to pay the core charge, I understand that my part or parts can ship as soon as available.
Hurry up! Current stock:
Product Details
Reviva Drop-In Engine for 1994 - 1995 Ford 7.3L F250-F550

Part # 59F4D215F

Ford 7.3L F250 - F550 - Serial # 501 - 201680


Engine Package Contents

The Drop-In engine configuration from Reviva include all the contents from the Long Block, Long Block Supreme and then all the additional parts to make it a true drop-in engine.

Block Configurations

LONG BLOCK INCLUDES:

  • Block
  • Camshaft
  • Timing gears
  • Lifters
  • Piston cooling tubes
  • Rear seal
  • Rear cover & seal
  • Glow plugs
  • Gasket Set*
  • Crankshaft
  • Pistons/rings
  • Connecting rods
  • Main/rod bearings
  • Cam bearings
  • Heads
  • Valve train
  • Oil pump

*GASKET SET DOES NOT INCLUDE VALVE COVER GASKET

LONG BLOCK WILL NOT BE PAINTED

LONG BLOCK SUPREME INCLUDES:

ALL PARTS ON THE LONG BLOCK IN ADDITION TO:

  • HEUI injectors
  • Vibration damper
  • High pressure oil pump, regulator & lines
  • Camshaft positioning sensor
  • Oil pan & pickup tube
  • Valve covers
  • Oil filter

COMPLETE DROP-IN INCLUDES:

ALL PARTS ON THE LONG BLOCK & LONG BLOCK SUPREME IN ADDITION TO:

  • Turbo pedestal
  • Front cover & seal
  • Turbocharger
  • Low pressure fuel lines
  • Lift pump*
  • Intake manifold
  • Oil cooler
  • Turbo exhaust plumbing
  • EBP valve*
  • Damper pulley
  • Fuel filter/heater assembly
  • Water pump
  • Exhaust manifolds

*WHERE REQUIRED


Dynomometer Testing

All of Reviva’s Complete Drop-In engines are 100% dyno tested prior to shipment. Computer controls ensure that each engine dyno test is conducted under standard, repeatable settings. Every engine is run through a warm up cycle; three separate cruise segments simulating light, medium and heavy throttle conditions; maximum torque and horsepower tests; both high and low idle tests; and a black light leak detection test with dyed oil, coolant and fuel.


Warranty Coverage

On-Road Complete Drop-In configurations: 2yr/unlimited mileage.
**2nd year long block coverage only. Transit applications: 1 year.
Off-Road Complete Drop-In configurations: 1yr/2,000 hours.
On-Road Long Block configuration: 1yr/unlimited miles.


Some restrictions apply; see limited warranty details or call for more information.

1(800)823-4444

WARNING : This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov

Warranty Information

Reviva’s Limited Standard Warranty

The term of the Standard Limited Warranty is dependent on the engine or product you purchase. Parts coverage and labor coverage varies from length of time to the product failure. Most engine warranties are 1 year or 2 years depending on the unit purchased. Any labor warranties provided herein shall only be provided to a maximum of ninety-five ($95.00) dollars USD per hour using Standard Labor Guide flat rate times. Labor coverage varies from long block engine and drop-in engines. Please contact us for more information.

FITMENT
