Reviva Remanufactured Diesel Engines Drop-In Engine - 2004.5-2005.5 Dodge Cummins 325 hp ISBO2 (Lift pump in fuel tank) 55G4D325D
Reviva Remanufactured Diesel Engines Drop-In Engine - 2004.5-2005.5 Dodge Cummins 325 hp ISBO2 (Lift pump in fuel tank) 55G4D325D
Reviva Remanufactured Diesel Engines Drop-In Engine - 2004.5-2005.5 Dodge Cummins 325 hp ISBO2 (Lift pump in fuel tank) 55G4D325D

Reviva Remanufactured Diesel Engines

Drop-In Engine - 2004.5-2005.5 Dodge Cummins 325 hp ISBO2 (Lift pump in fuel tank) 55G4D325D

0 review Write a Review
SKU: DMC55G4D325D
$16,006.51
Free Ground Shipping (Continental US)

Short Description

Refundable Core Charge: $2800

More Information

CORE CHARGE OPTIONS

Core Charge Agreement - If selecting to SEND CORE IN FIRST above, I understand that I will need to send in my core items first and have them accepted before the shipment of the new part or parts is authorized. If I select to pay the core charge, I understand that my part or parts can ship as soon as available.
Hurry up! Current stock:
Product Details

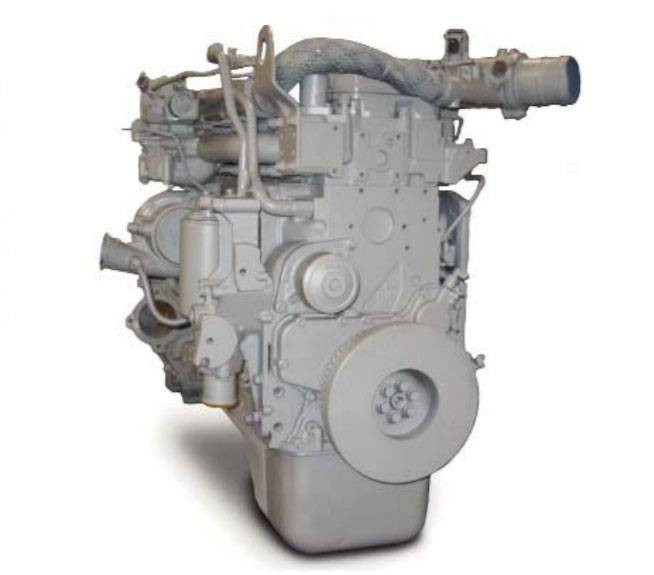

Complete Drop-In Engine for 2004.5 - 2005.5 Dodge Cummins 5.9L ISB02

Part # 55G4D325D


Lift pump located in fuel tank - 325 hp @ 2900 RPM
HPCRI - High Pressure Common Rail Injection
CPL Listing: 8344, 8345, 8346, 8347, 8348, 8350, 8351, 8421, 8423



Identification

To determine correct part number and configurations available, please gather the following information from the engine data tag on the valve cover:

  • Original Engine Serial Number
  • Original Engine CPL

The serial number is also stamped on the cylinder block above the oil cooler assembly.



Engine Package Contents


Long Block Supreme
  • Block
  • Block
  • Rods
  • Crank Gear
  • Piston assemblies
  • Head
  • Rear cover & seal
  • Oil filter assembly
  • Water pump
  • Side cover/crankcase breather
  • Valve train (lifters, pushrods, & rocker arms)
  • Crankshaft
  • Oil pump
  • Cam gear
  • Camshaft
  • Front gear housing
  • Oil cooler
  • Valve cover(s)
  • Gasket set

Complete Drop-In

all the parts on the long block supreme plus:

  • Lift pump
  • Low & high pressure lines
  • Fuel filter assembly
  • Turbocharger
  • Intake cover & connection
  • Oil pickup tube
  • Injector pump
  • Injectors
  • Damper pulley
  • Thermostat
  • Thermostat Housing
  • Turbo exhaust plumbing
  • Exhaust manifold
  • Oil pan
  • Gear cover & seal
  • Wiring harness
  • Sensors & Switches

Dynomometer Testing

All of Reviva’s Complete Drop-In engines are 100% dyno tested prior to shipment. Computer controls ensure that each engine dyno test is conducted under standard, repeatable settings. Every engine is run through a warm up cycle; three separate cruise segments simulating light, medium and heavy throttle conditions; maximum torque and horsepower tests; both high and low idle tests; and a black light leak detection test with dyed oil, coolant and fuel.


Warranty Coverage

On-Road Complete Drop-In configurations: 2yr/unlimited mileage.
**2nd year long block coverage only.
Off-Road Long Block or Complete Drop-In configurations: 1yr/2,000 hours.
On-Road Long Block configuration: 1yr/unlimited miles.
Transit applications: 1 year.


Some restrictions apply; see limited warranty details or call for more information.

1(800)823-4444

WARNING : This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov

Warranty Information

Reviva’s Limited Standard Warranty

The term of the Standard Limited Warranty is dependent on the engine or product you purchase. Parts coverage and labor coverage varies from length of time to the product failure. Most engine warranties are 1 year or 2 years depending on the unit purchased. Any labor warranties provided herein shall only be provided to a maximum of ninety-five ($95.00) dollars USD per hour using Standard Labor Guide flat rate times. Labor coverage varies from long block engine and drop-in engines. Please contact us for more information.
