Reviva Remanufactured Diesel Engines

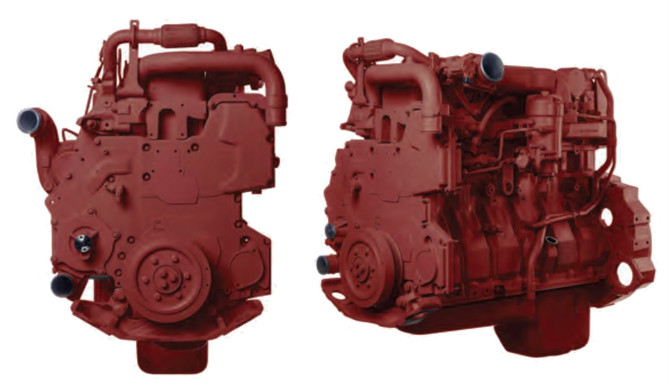

Drop-In Engine - 2005 DT-466EGR 7.6L (210HP-225HP Rear Sump) International - 54G5D210ARH

0 review Write a Review
SKU: DMC54G5D210ARH
$22,704.75
Free Ground Shipping (Continental US)

Short Description

Refundable Core Charge: $4050

More Information

CORE CHARGE OPTIONS

Core Charge Agreement - If selecting to SEND CORE IN FIRST above, I understand that I will need to send in my core items first and have them accepted before the shipment of the new part or parts is authorized. If I select to pay the core charge, I understand that my part or parts can ship as soon as available.
Hurry up! Current stock:
Drop-In Engine - 2005 DT-466EGR 7.6L (210HP-225HP Rear Sump) International

Part # 54G5D210ARH

DT-466E, 210-225HP 12NPL, 12NPM, 12NPN, 12NPR turbo=HMRO, Rear Sump, SAE#2 Bus

All Reviva engines are assembled in the USA. To ensure our engines will stand the test of time, Reviva uses OEM or equivalent pistons, rings, bearings, valves and gaskets.

ABOUT THE REVIVA DT-466EGR

  • All Reviva engines are assembled in the USA.
  • Reviva replaces 100% of pistons, rings, bearings, bushings, gaskets, and seals.
  • All heads get new valves and are vacuum tested to ensure the quality of the valve job.
  • Reviva grinds and polishes 100% of camshaft lobes.
  • All connecting rods are de-magnetized.
  • All high pressure oil pumps are remanufactured and tested to ensure performance.
  • Core plugs are 100% stainless steel to avoid corrosion.
  • Blocks, heads, and crankshafts are magnaflux tested to avoid any possible cracks.
  • Cylinder heads are pressure tested before assembly to eliminate possibility of coolant leak.
  • Blocks are resurfaced and have counterbores remachined to ensure proper sleeve protrusion and head gasket sealing.
  • Connecting rods have new bushings installed and both large and small ends are remachined to OEM specifications.
  • Crankshaft is checked for size, reground, if necessary, and polished to OEM specifications.

REVIVA’S DYNO TEST

All of Reviva’s Complete Drop-In engines are 100% dyno tested prior to shipment. Computer controls ensure that each engine dyno test is conducted under standard, repeatable settings. Every engine is run through a warm up cycle; three separate segments simulating light, medium, and heavy throttle conditions; maximum torque and horsepower tests; both high and low idle tests; and a black light leak detection test with dyed oil, coolant, and fuel.

WARRANTY COVERAGE

On-Road Complete Drop-In configurations: 2yr/unlimited mileage.*
Long Block configurations: 1 year/unlimited mileage.
Transit Bus Applications: 1 yr/unlimited miles on all configurations.

Some restrictions apply; see limited warranty details or call for more information.
*2nd year long block coverage only.



COMPLETE DROP-IN ENGINE INCLUDES:

ALL PARTS ON THE RUNNING ENGINE PLUS

  • EGR Cooler
  • EGR Pipes
  • EGR Valve

RUNNING ENGINE INCLUDES:

ALL PARTS ON THE LONG BLOCK PLUS

  • Oil pan
  • Pickup tube
  • Oil filter
  • Thermostat housing
  • Front engine mount
  • Turbocharger
  • Exhaust manifolds
  • Complete fuel system (injectors, high & low pressure lines & fuel filter assembly)
  • Oil cooler
  • Water pump (no pulley)
  • Thermostat
  • Flywheel housing
  • Dipstick guide (lower portion)
  • Intake manifold & air inlet
  • All sensors

*GASKET SET TO COMPLETE RUNNING ENGINE AVAILABLE FOR PURCHASE

LONG BLOCK INCLUDES:

  • Block
  • Rods
  • Valve cover
  • Piston/Sleeve assemblies
  • Timing gears
  • Front cover & seal
  • High pressure oil pump
  • Crankshaft
  • Oil pump
  • Valve train
  • Camshaft
  • Head
  • Crankshaft hub & damper

*GASKET SET TO COMPLETE LONG BLOCK AVAILABLE FOR PURCHASE



WARNING : This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov

Reviva’s Limited Standard Warranty

The term of the Standard Limited Warranty is dependent on the engine or product you purchase. Parts coverage and labor coverage varies from length of time to the product failure. Most engine warranties are 1 year or 2 years depending on the unit purchased. Any labor warranties provided herein shall only be provided to a maximum of ninety-five ($95.00) dollars USD per hour using Standard Labor Guide flat rate times. Labor coverage varies from long block engine and drop-in engines. Please contact us for more information.
