Reviva Remanufactured Diesel Engines

Drop-In Engine - 2010-2014 MaxxForce DT 7.6L (245HP-270HP Rear Sump) International - 54H0D245BR

0 review Write a Review
SKU: DMC54H0D245BR
$24,975.34
Free Ground Shipping (Continental US)

Short Description

Refundable Core Charge: $4050

More Information

CORE CHARGE OPTIONS

Core Charge Agreement - If selecting to SEND CORE IN FIRST above, I understand that I will need to send in my core items first and have them accepted before the shipment of the new part or parts is authorized. If I select to pay the core charge, I understand that my part or parts can ship as soon as available.
Hurry up! Current stock:

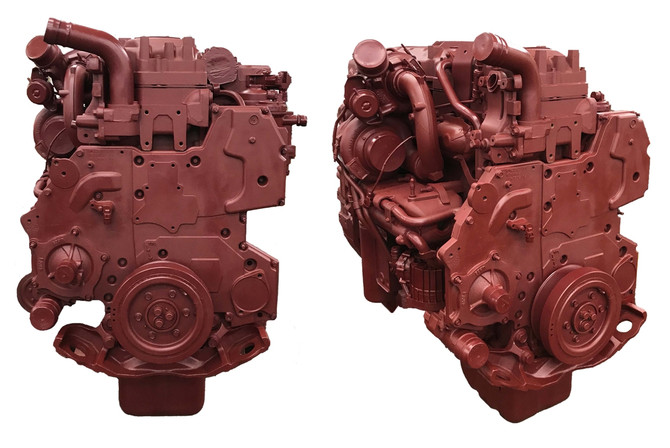

Drop-In Engine - 2010-2014 MaxxForce DT 7.6L (245HP-270HP Rear Sump) International

Part # 54H0D245BR

MaxxForce DT, 245-270 HP, Piston: 1891008C1, HPOP: 1889323C93 (12CC), Oil Pan=rear sump, Has truck flywheel housing: 1840100C5, Has interstage cooler, no engine brake. *** WATER OUTLET restricted or non restricted,  *** FUEL FILTER - with heater or without heater, 12NUN, 12NUP, 12NUR - 5010942R91

All Reviva engines are assembled in the USA. To ensure our engines will stand the test of time, Reviva uses OEM or equivalent pistons, rings, bearings, valves and gaskets.

ABOUT THE REVIVA MAXXFORCE DT

  • All Reviva engines are assembled in the USA.
  • Reviva replaces 100% of pistons, rings, bearings, bushings, gaskets and seals.
  • All heads get new valves and are vacuum tested to ensure the quality of the valve job.
  • Reviva grinds and polishes 100% of camshafts’ lobes.
  • All connecting rods are de-magnetized.
  • All high pressure oil pumps are remanufactured and tested to ensure performance.
  • Core plugs are 100% stainless steel to avoid corrosion.
  • Blocks, heads and crankshafts are magnaflux tested to avoid any possible cracks.
  • Cylinder heads are pressure tested before assembly to eliminate possibility of coolant leak.
  • Blocks are resurfaced and have counterbores re-machined to ensure proper sleeve protrusion and head gasket sealing.
  • Connecting rods have new bushings installed and both large and small end are re-machined to OEM specifications.
  • Crankshaft is checked for size, reground, if necessary, and polished to OEM specifications.

REVIVA'S DYNO TEST

All of Reviva’s Complete Drop-In engines are 100% dyno tested prior to shipment. Computer controls ensure that each engine dyno test is conducted under standard, repeatable settings. Every engine is run through a warm up cycle; three separate segments simulating light, medium and heavy throttle conditions; maximum torque and horsepower tests; both high and low idle tests; and a black light leak detection test with dyed oil, coolant and fuel.

WARRANTY COVERAGE

On-Road Complete Drop-In configurations: 2yr/unlimited mileage.*

Long Block configurations: 1 year/unlimited mileage.

Transit Bus Applications: 1 yr/unlimited miles on all configurations.

Some restrictions apply; see limited warranty details or call for more information.
*2nd year long block coverage only.

COMPLETE DROP-IN ENGINE INCLUDES

ALL PARTS ON THE LONG BLOCK, PLUS+

  • Complete fuel system (injectors & fuel filter assembly)
  • Dual stage turbocharger assembly
  • Exhaust manifold
  • EGR cooler
  • EGR valve
  • EGR coolant & air pipes
  • Intake manifold & inlet duct with heater**
  • Oil cooler & filter base assembly
  • Front engine mount
  • Sensors
  • Thermostat

*INLET DUCT WITH HEATER DOES NOT INCLUDE INTAKE THROTTLE VALVE

LONG BLOCK INCLUDES

  • Block
  • Crankshaft
  • Camshaft
  • Piston assemblies
  • Cylinder head
  • Valve train
  • Oil pump
  • Timing gears
  • Front cover & seal
  • Crankshaft hub & damper
  • Valve cover
  • Oil pan
  • Flywheel housing
  • Breather assembly
  • High pressure oil pump

*GASKET SET TO COMPLETE LONG BLOCK AVAILABLE FOR PURCHASE

**GASKET SET DOES NOT INCLUDE VALVE COVER GASKET FOR MODELS WITH THE ENGINE BRAKE**

WARNING : This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov

Reviva’s Limited Standard Warranty

The term of the Standard Limited Warranty is dependent on the engine or product you purchase. Parts coverage and labor coverage varies from length of time to the product failure. Most engine warranties are 1 year or 2 years depending on the unit purchased. Any labor warranties provided herein shall only be provided to a maximum of ninety-five ($95.00) dollars USD per hour using Standard Labor Guide flat rate times. Labor coverage varies from long block engine and drop-in engines. Please contact us for more information.
