UEM - Dualoy Diesel Pistons

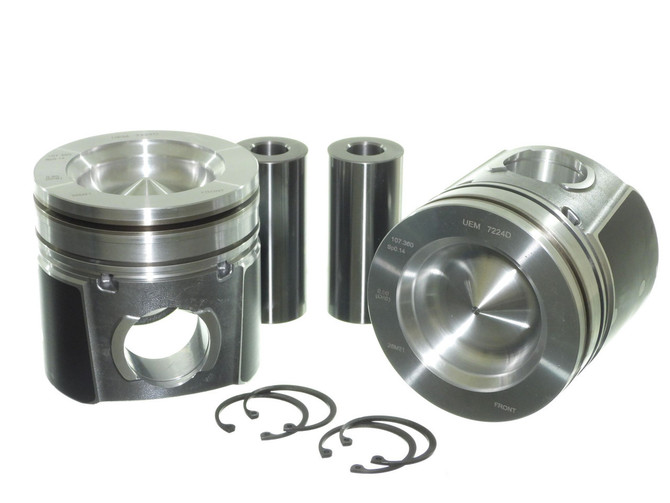

DUALOY Piston Kit (0.5MM OVER) - 2013-2018 Dodge 6.7L Cummins 7224DKT.5MM
Part # 7224DKT.1.0MM
Dualoy Diesel pistons are cast and machined in-house to maintain the highest level of quality and consistency. Available for most popular diesel light and medium-duty truck applications, and engine codes. All Dualoy pistons feature a high strength top ring carrier to improve strength of the top land, and resistance to the extreme heat of diesel engines. Oil cooling galleries are cast into the pistons, as required depending on the specific application.
Sold As | KIT of 6 W/RINGS |
---|---|
Engine Manufacturer | Cummins ISB |
Engine Family | Cummins ISB |
Eng. Disp. In. | 406 |
Eng. Disp Liters | 6.7 |
Year Range | 2013-2018 |
Bore (in) | 4.212 |
Bore (mm) | 107 |
Stroke (in) | 4.921 |
Stroke (mm) | 124 |
Oversized | Yes |
Oversize | 1.0mm |
Ring Pack | 2.8K, 2.5mm, 3.5mm |
Top Land | 0.315 |
Pin Number | 7201D-GP |
Pin Type | Floating |
Pin Diameter (in) | 1.574 |
Pin Diameter (mm) | 39.99 |
Compression Height IN | 2.734 |
Compression Height MM | 69.45 |
Crown (cc) | 39.73 |
