Edge Revolver Switch Chip - Box Code NQW2- 2002-2003 Ford Excursion 7.3L Power Stroke
Part # 14011
IMPORTANT NOTE:
Edge Part number 14011 is designed for build date 2002-2003 Ford Excursion 7.3L Power Stroke. The Master ECU Code for the 14011 is NQW2. This Master ECU code supports the following ECU codes MAP, NQW, QLJ, and SHT. See the table below to make sure that you are ordering the correct chip for your truck.

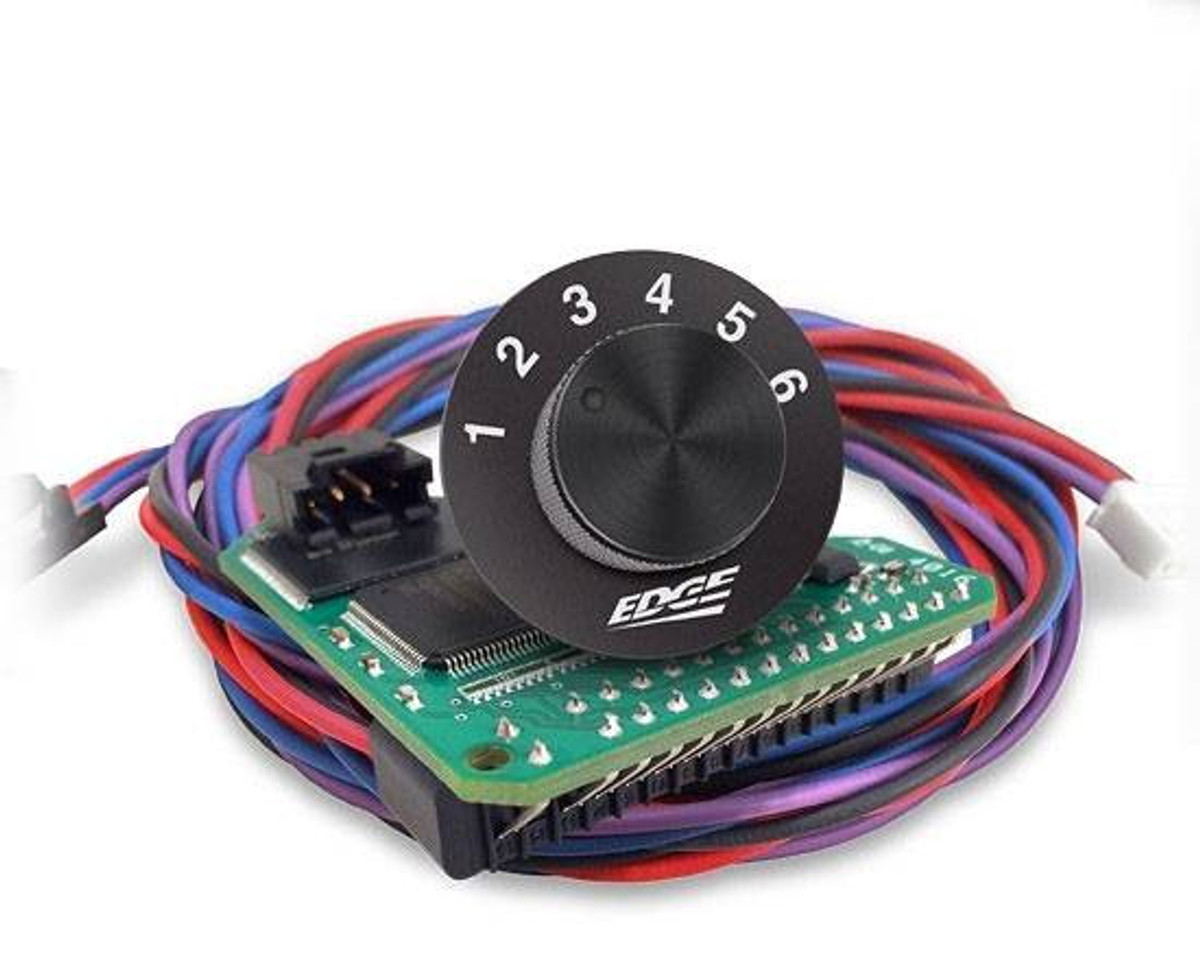

The new Edge Revolver Performance Chip is designed for Ford 7.3L
Power Stroke diesels and can make up to 150 HP (Depending on Model Year) with
up to 6 performance programs switchable on the fly using the included switch!
Edged Up Performance for your 7.3L
The biggest benefit of using the Edge Revolver chip over the competition is
simple: Edge makes the BEST Diesel tunes. At Edge products, diesel performance
is our passion. Every day we install cool new toys on our in-house diesel fleet
in order to create an extraordinary driving experience. Our engineers build
the products for people like themselves- Diesel Nuts! You can expect better
tunes, better performance gains (level for level) and better drivability from
an Edge Revolver chip than any other chip around for your 7.3L.
• Power Level 1 - Stock Setting
• Power Level 2 - High Idle
• Power Level 3 - 50 HP & 100 lb-ft
• Power Level 4 - 75 HP & 150 lb-ft
• Power Level 5 - 100 HP & 200 lb-ft
• Power Level 6 - 140 HP & 350 lb-ft
• Transmission Tuning - Edge Optimized
• Tow Tune
• Economy Tune
• Adjustable Power Switch
Switch on the Fly for Tuning for your 7.3L Powerstroke

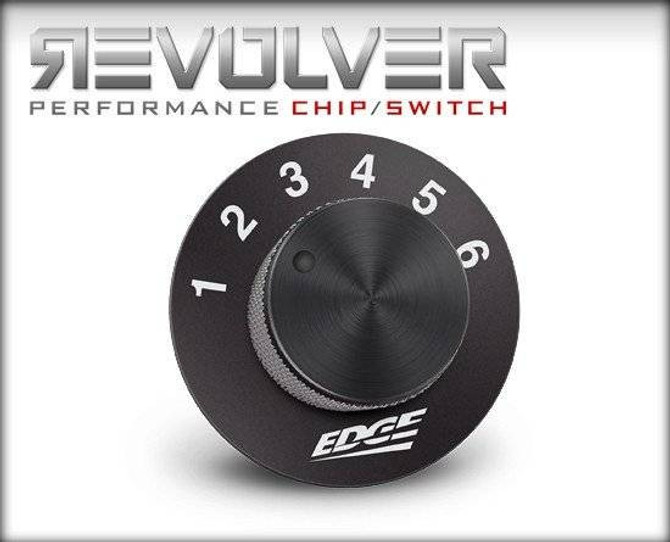

Every Revolver chip comes with a 6-position switch that will let you change
the power level while driving. This might not seem like a big deal at first,
but imagine you are getting ready to go on a camping trip and have your camping
trailer hooked up. You probably want to use your tow setting for that so you
flip the switch down to your tow setting. When you get to the camp ground and
drop your trailer off, you want to head down to the nearest market for some
more camping supplies, and you want to do it FAST to show your buddy- just switch
to your performance level! The bottom line is that all of your performance levels
are available to you at the flick of a switch, no re-programming required and
the change is instant!
How to Order an Edge Revolver Chip
You will need some information from your truck before you order an Edge Revolver
Chip. First, you will need the “ECU Code” from your truck’s ECU. It is easy
to find- just look for your ECU which will be located behind the Driver’s Side
Kick Panel where there is a black plug that will have a sticker on the plug
that shows the ECU code. In the case that this sticker isn’t there or the plug
has been removed then you can look in the engine compartment where the main
harness connection connects to the ECU. In some cases you can put your phone
down by the connector and take a picture of it to reveal the ECU code. If you
can’t see it then you may need to remove the ECU. There will be a large 4 Digit
Code there that are 3 letters and 1 number. These “ECU Codes” identify what
ECU is in your truck, and they come in groups. Some examples might be NVK2 and
NVK4, which share the same tunes which would have the same “Box Code”, but have
different ECM codes. You will need to give your ECM code to the dealer that
is burning your chip, or buy the chip pre-programmed for your ECM code (or box
code family). Here is an example of what your ECM code will look like on the
ECM:
| Edge Part Number |
Support Description |
Master Box Code |
Support ECU Codes |
| 14001 |
7.3 Ford 95-97 Auto 6-Chip Master Box Code TDE1 |
Master Box Code TDE1 |
LKM MIF NAW PRE PRY TDE TEE YBT ZAA |
| 14002 |
7.3 Ford 95-97 Manual 6-Chip Master Box Code MLE1 |
Master Box Code MLE1 |
ALF AUG BEG GOB MLE SOD |
| 14003 |
7.3 Ford build date 98 Auto 6-Chip Master Box Code XLE7 |
Master Box Code XLE7 |
FUT GLF HPA XLE |
| 14004 |
7.3 Ford 99 Manual 6-Chip Master Box Code AWA4 |
Master Box Code AWA4 |
AWA BDT CLB DYK |
| 14005 |
7.3 Ford 99.5-01 Auto 6-Chip Master Box Code NVK4 |
Master Box Code NVK4 |
AGD BKA CNH FIF HAM JLJ KRK LVS MNM MRT NVK PMT RXM YEV |
| 14006 |
7.3 Ford 00 Manual 6-Chip Master Box Code DAC3 |
Master Box Code DAC3 |
BAW BIS DAC NBD QEK VRP VXY XPC ZHL |
| 14007 |
7.3 Ford 01 Manual 6-Chip Master Box Code APX1 |
Master Box Code APX1 |
APX ZXG |
| 14008 |
7.3 Ford 02-03 Auto 6-Chip Master Box Code VDH4 |
Master Box Code VDH4 |
BXE KEK NWM PBY PRW TMA VDH VDU |
| 14009 |
7.3 Ford 02-03 Manual 6- Chip Master Box Code AEB3 |
Master Box Code AEB3 |
AEB GDU |
| 14010 |
7.3 Ford 00-01 Excursion 6-Chip Master Box Code MQJ2 |
Master Box Code MQJ2 |
AVB EBM MQJ NMC UKN |
| 14011 |
7.3 Ford 02-03 Excursion 6-Chip Master Box Code NQW2 |
Master Box Code NQW2 |
MAP NQW QLJ SHT |
Getting the chip installed
You can easily install the Edge Revolver Performance Chip yourself. Follow the
directions included with the product for specifics, but for a basic over-view
here is what is involved.
1. Make sure you do not have your truck’s key in the ignition
2. Find your ECU in your truck
3. Open the “J” port which is on the side of your ECM
4. Use the included Scrubby pad/alcohol wipe to clean any goo or dust off the
port (Make it REALLY clean)
5. Hook your chip’s switch up to the chip itself
6. Insert the chip over the exposed electronics port
7. Run the switch wire off to the side
8. Cover the port with the 4×4 sticker to make sure the ECM does not get additional
dust in it
9. Run your switch to the desired location and mount it
10. Enjoy your performance tunes!
