Head Gasket Set - Upper - 2003-2007 Dodge 5.9L Cummins
Part # 4089819

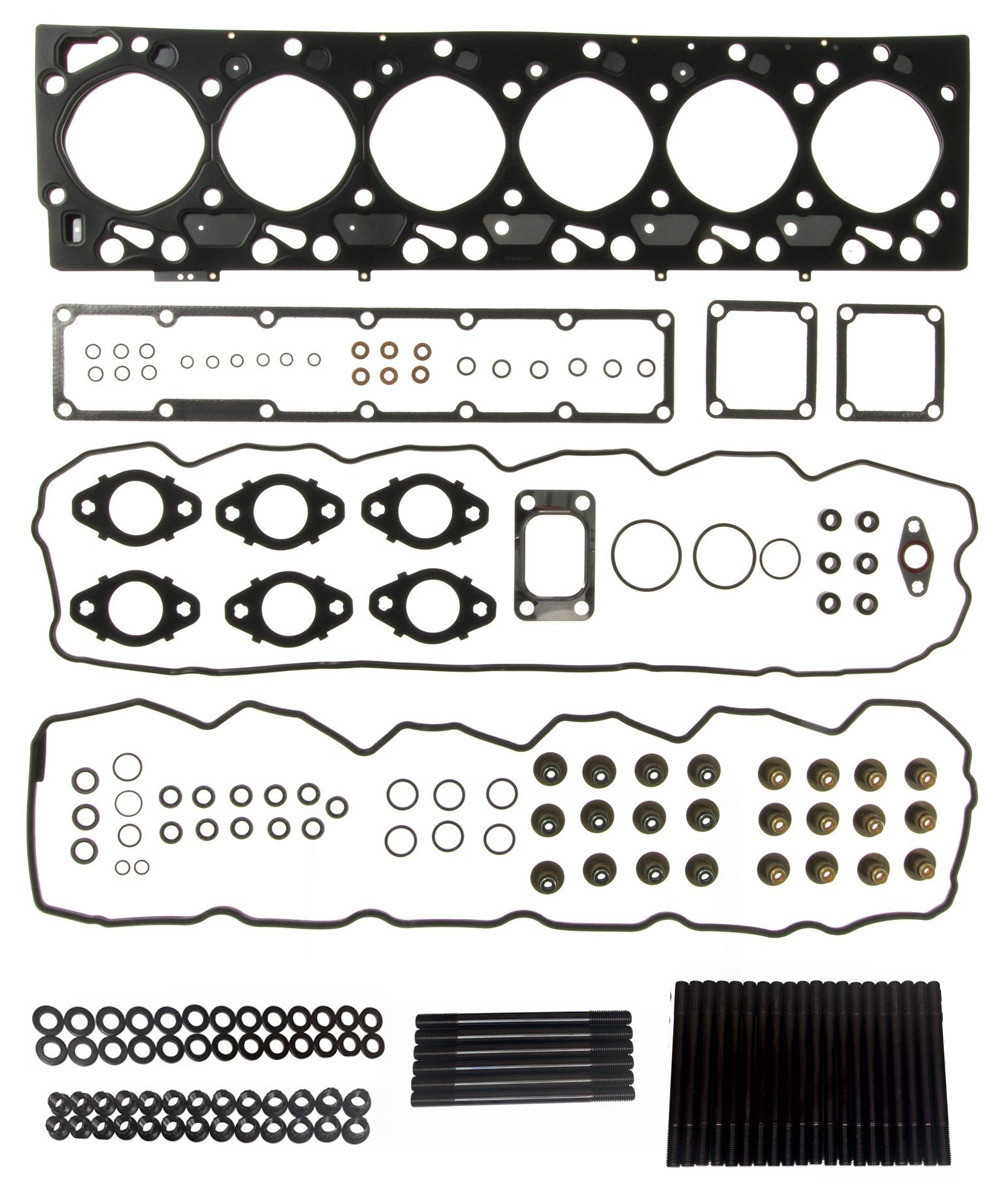

This is a complete upper gasket set for 2003-2007 5.9L Cummins engines. Multilayer steel head gaskets which are size graded. The graded gaskets eliminate the need for piston grading. For proper engine rebuild use the head gasket from the gasket set which matches the gasket that was removed. Contact us if you have any difficulty with application determination.
Kit includes:
- 3073966 - Seal - O-Ring1
- 3963988 - Washer - Sealing3
- 3946275 - Gasket6
- 3947530 - Gasket - Intake Manifold Cover1
- 4062328 - Seal - O-Ring6
- 3969988 - Gasket2
- 4931365 - Gasket - Oil Drain1
- 3949530 - Gasket - Turbocharger1
- 3954324 - Gasket - Rocker Cover1
- 3954829 - Seal - Thermostat1
- 3963379 - Gasket - Rocker Cover Housing1
- 3087740 - Seal - O-Ring6
- 3955393 - Seal - Valve Stem12
- 3955394 - Seal - Valve Stem12
- 3958644 - Gasket - Cylinder Head1
- 3958645 - Gasket - Cylinder Head1
- 4933628 - Plate - Lock2
- 4890926 - Seal - O-Ring6
- 3089240 - Seal - O-Ring1
- CG69 PR - Navistar D/C 36" X 10" X 1-1/21
- LABEL NUMBER 1 - 9-1/2X5 7/8" Fan Folder Pinfed2
- W-INT-75-0169 - Installation Instructions1
- 3973512 - Seal - O-Ring1
- 3678603 - Seal - O-Ring2
- 3678786 - Seal - O-Ring1
- 3922794 - Seal - O-Ring - Turbo Hose2
- 3931824 - Seal - O-Ring1
- 3963983 - Washer - Sealing11
- 3937142 - Seal - Injector6
Kit does NOT include head studs or head bolt so you can pick your preference.
Recommended Head Bolts: Part # 3927063 (26 Required)
