Kryptonite SS Series Center Link Tie Rod Package - 2011-2020 GM 2500/3500 HD
Part # KRCLP11
This insanely strong Center Link has been engineered to maintain all factory alignment specs and steering geometry. This steering system is modeled after the Center Link on the H1 Military Hummer. This is a much stronger design when compared to whats offered from factory on all non Hummer GM HD Trucks. Can be used with GM or aftermarket Idler/Pitman arms. Will work with Cognito PISK support system.
If installing KRYPTONITE series center link on a leveled truck you may need to install longer swaybar endlinks depending on how high the torsion bars have been adjusted. We recommend the Kryptonite HD swaybar endlinks available for Trucks with 0"-2" of lift, Trucks with 4"-6" of lift or Trucks with 7"-9" of lift.
Disclaimer: - Center Link can not be used with lift kits that drop the center link from the factory location. Will not work with Fabtech Lift Kits.
Includes:

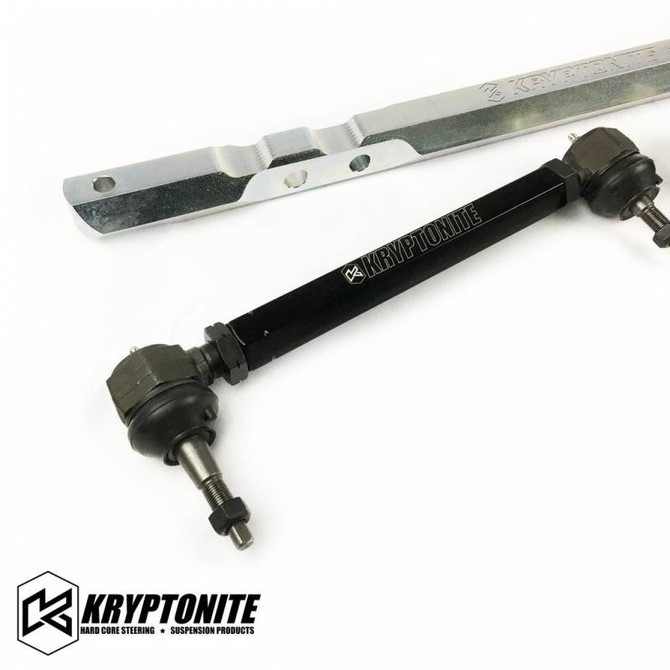

- 1 x Kryptonite Series Solid Center Link
- 2 x Kryptonite Series Tie Rods
Details:
| |
1144 Stress Proof Carbon steel |
~VS~ |
4140-4130 chromoly steel |
| Tensile Strength |
115,000 psi (Min.) |
85,000–110,000 psi |
| Yield Strength |
100,000 psi (Min.) |
70,000–85,000 psi |
