SPE has always pushed the envelope in 6.7 Powerstroke reliability and performance from our 6.7 Powerstroke dragster to Super Dutys performing their daily tasks. So whether you are commuting, towing, or racing, we have you covered.
Through years of testing at SPE our team has developed an oil filter housing that not only utilizes CAT filtration but also adds the huge flow needed to keep these engines alive under extreme conditions. This kit uses the CAT 1R-1807 or CAT 324-2598 filter. Both filter options are 100% efficient at 20 micron and 20% efficient at 4 micron, with 1R-1807 having the most oil capacity.
The CAT Filters easily out-flow the factory FL2051S. This is basically a given just from the sheer size; however, during testing, we have found that the flow restrictions were not the factory filter but the filter housing itself. We knew to gain proper filtration and flow we would need a housing rather than an adapter to slap a larger filter on. The SPE oil filter housing design increases flow by 30%. Our billet design allowed us to manufacture it in a way the factory couldn't. In some instances during testing, the additional flow even lowered oil temperatures.

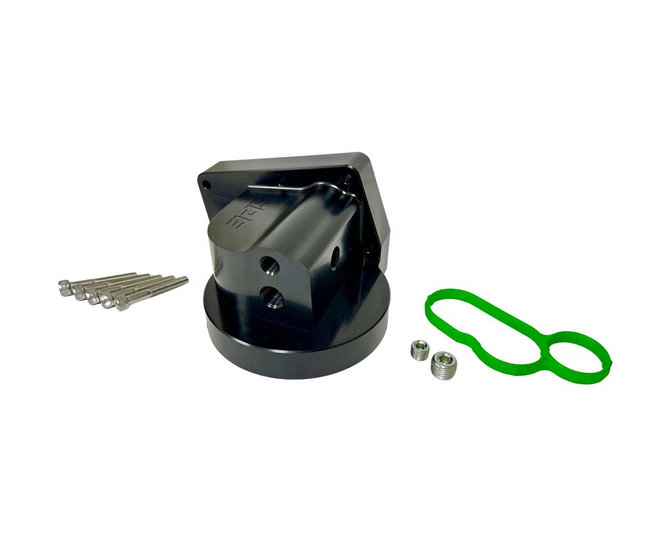

SPE's housing is made in-house out of a solid chunk of billet aluminum. The design integrates all of the factory sensors and their original locations. The design also keeps the filters as high as possible to offer the best clearance. They also use a factory-style gasket which is convenient if it needs to be replaced in the future; however, SPE does provide you with their upgraded factory style injection molded gasket made out of a high quality Buna N material. Additionally, they have included two auxiliary oil ports that can be used for turbocharger oil supply or temperature/pressure sensors. Furthermore, the SPE 6.7L Powerstroke Oil Filter Housing was designed to work with the SPE Cast Lower Oil Pan while still allowing access to the drain back bungs and with the additional oil pan heater installed. It can also be used in stock applications as well.

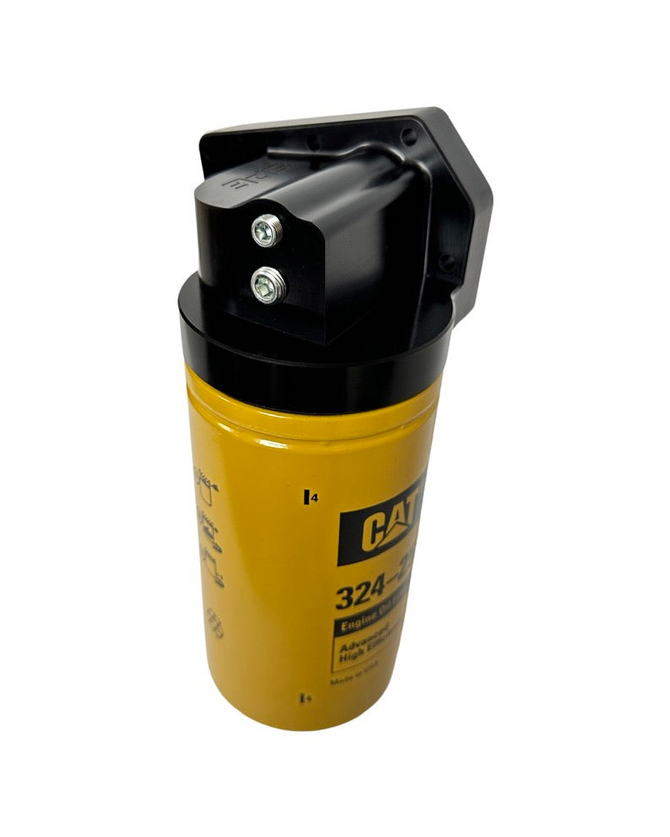

This listing comes with the Short CAT 324-2598 Filter but will also work with the Long CAT 1R-1807 Filter. The advantage to the CAT 324-2598 is the shorter length for off-road or even lowered applications. Even though it's the shorter of the two it is still much larger than the FoMoCo factory FL2051s in terms of capacity. Running either CAT filter option is a huge upgrade from the factory one. While the Long CAT 1R-1807 Filter will allow even longer intervals between filter changes, we've found it is almost too long in most clearance situations.
