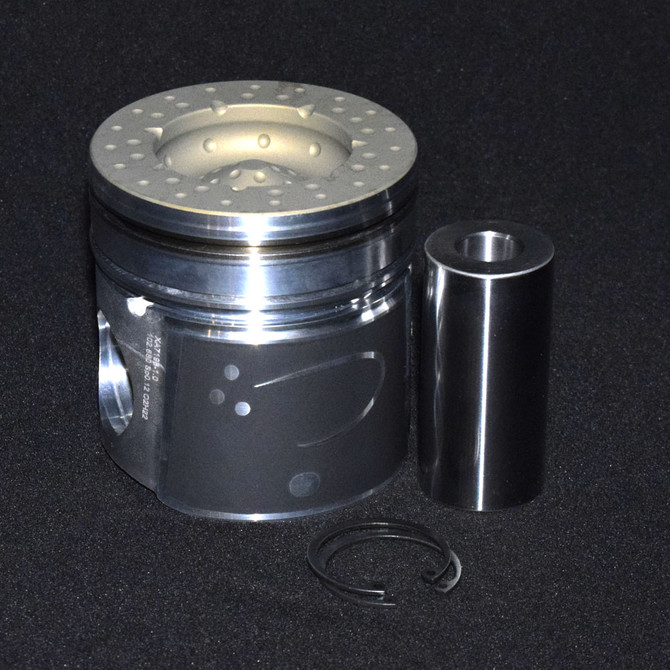

Speed of Air Piston & Ring Set (0.5MM OVER) - 1998-2002 Cummins 5.9L ISB 24V
Part #
Speed of Air's patented engine technology creates a drastically more efficient combustion process which results in a number of closely related benefits. Our technology creates sufficient lean burn to significantly reduce NOx while also reducing CO and HC emissions. Because more fuel is being completely burned in the combustion chamber, fuel consumption is decreased per Brake-Specific Horse Power. Likewise, available horsepower and torque are increased per specific fuel consumption. Finally, the reduction in carbon deposits—which resolve as soot in the engine oil—allows for extended oil change service intervals while prolonging the life of all lubricated bearing surfaces.
Speed of Air Hyperformance diesel pistons are proudly manufactured under license by United Engine & Machine Co. Every set of Hyperformance Pistons is custom made under the strictest quality control processes in the industry and designed to provide you unparalleled performance over the life of your engine. To learn more about Speed of Air Technologies or United Engine & Machine Co.
Features & Advantages of an SOA Piston Ring Set
- Increase in Fuel Economy
- Reduced Oil Change Intervals
- Reduced ReGen Cycles and DEF Use
- Decrease in NoX Emissions
- Reduction in Visible Exhaust/Opacity
- Smoother and Quieter Engine Operation
Specs:
| Sold As |
Piston Set with Rings |
| Engine Manufacturer |
Dodge |
| Engine Family |
Cummins 5.9L ISB 24V 1998-2002 |
| Vin Code |
6 |
| Oe Assembly |
3946153 |
| Eng. Disp Liters |
5.9 |
| Eng. Disp. In. |
369 |
| Bore (in) |
4.015 |
| Bore (mm) |
102 |
| Crown (cc) |
+47.2cc |
| Compression Ratio |
17.2:1 |
| Top Land |
0.405 |
| Pin Type |
Floating |
| Crown Type |
CONTOURED HEAD |
| Cylinder Bore Diameter MM |
102 |
| Compression Height IN |
2.818 |
| Rod (in) |
7.56 |
| Stroke (in) |
4.724 |
| Cylinder Bore Diameter IN |
4.015 |
| Bore Diameter MM |
102 |
| Bore Diameter IN |
4.015 |
| Year To |
2002 |
| Pin Diameter (mm) |
40 |
| Compression Height MM |
71.6 |
| Ring Pack |
3.0K, 2.35mm, 4.0mm |
| Includes Ring Set |
20028.5MM |
| Year Range |
1998.5-2002 |
| Stroke (mm) |
120 |
| Oversize |
.50mm |
| Model |
Truck |
| Pin Configuration |
Centered |
| Base Number |
7198D |
| Alloy |
332 |
| Year From |
1998.5 |
| Make For Engine Family |
Cummins |
| Oversized |
Yes |
| Oversizes |
STD .50mm 1.0mm |
| Pin Number |
7195D-PP |
| Rod (mm) |
192 |
| Pin Diameter (in) |
1.575 |
