UEM - Speed of Air Hyperformance Pistons

Speed of Air Piston & Ring Set (1.0MM OVER) - 2009-2013 Cummins 6.7L I6 24V ETJ XA7202-1.0K1

0 review Write a Review
SKU: UEMXA7202-1.0K1
$3,778.00
Free Ground Shipping (Continental US)

Short Description

Hurry up! Current stock:
Speed of Air Piston & Ring Set (1.0MM OVER) - 2009-2013 Cummins 6.7L I6 24V ETJ

Part # XA7202-1.0K1

Speed of Air's patented engine technology creates a drastically more efficient combustion process which results in a number of closely related benefits. Our technology creates sufficient lean burn to significantly reduce NOx while also reducing CO and HC emissions. Because more fuel is being completely burned in the combustion chamber, fuel consumption is decreased per Brake-Specific Horse Power. Likewise, available horsepower and torque are increased per specific fuel consumption. Finally, the reduction in carbon deposits—which resolve as soot in the engine oil—allows for extended oil change service intervals while prolonging the life of all lubricated bearing surfaces.

Speed of Air Hyperformance diesel pistons are proudly manufactured under license by United Engine & Machine Co. Every set of Hyperformance Pistons is custom made under the strictest quality control processes in the industry and designed to provide you unparalleled performance over the life of your engine. To learn more about Speed of Air Technologies or United Engine & Machine Co.



Features & Advantages of an SOA Piston Ring Set
  •  Increase in Fuel Economy
  •  Reduced Oil Change Intervals
  •  Reduced ReGen Cycles and DEF Use
  •  Decrease in NoX Emissions
  •  Reduction in Visible Exhaust/Opacity
  •  Smoother and Quieter Engine Operation



Specs:

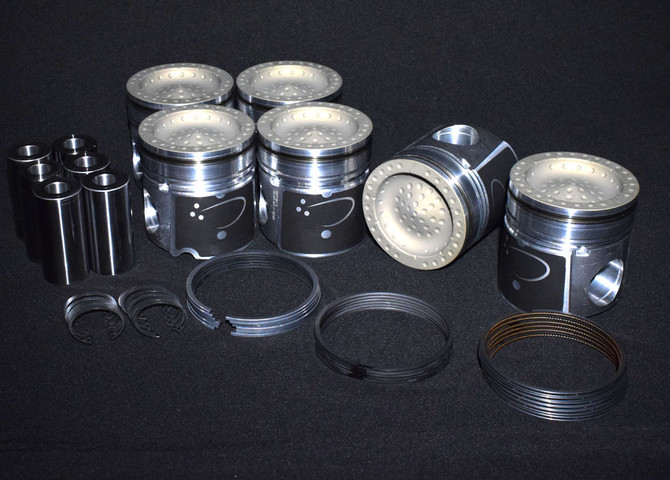

Sold As Piston Set with Rings
Engine Manufacturer Dodge
Engine Family Cummins 6.7L I6 24V ETJ 2009-2013
Vin Code A, L,
Oe Assembly 4931888
Eng. Disp Liters 6.7
Eng. Disp. In. 409
Bore (in) 4.212
Bore (mm) 107
Crown (cc) +51.6cc
Compression Ratio 17.2:1
Top Land 0.315
Pin Type Floating
Bore Diameter IN 4.212
Ring Pack 2.87K, 2.5mm, 3.46mm
Crown Type CONTOURED HEAD
Bore Diameter MM 107
Cylinder Bore Diameter MM 107
Oversizes STD .50mm 1.0mm
Stroke (mm) 124
Stroke (in) 4.882
Pin Diameter (mm) 40
Cylinder Bore Diameter IN 4.212
Compression Height MM 69.5
Compression Height IN 2.736
Alloy 332
Rod (mm) 191.97828
Rod (in) 7.56
Year From 2009
Oversize 1.0mm
Pin Configuration Offset
Oversized Yes
Model Truck
Base Number 7202D
Pin Number 7201D-GP
Includes Ring Set 20025.1.0MM
Pin Diameter (in) 1.575
Make For Engine Family Cummins
Year To 2013
Year Range 2009-2013
