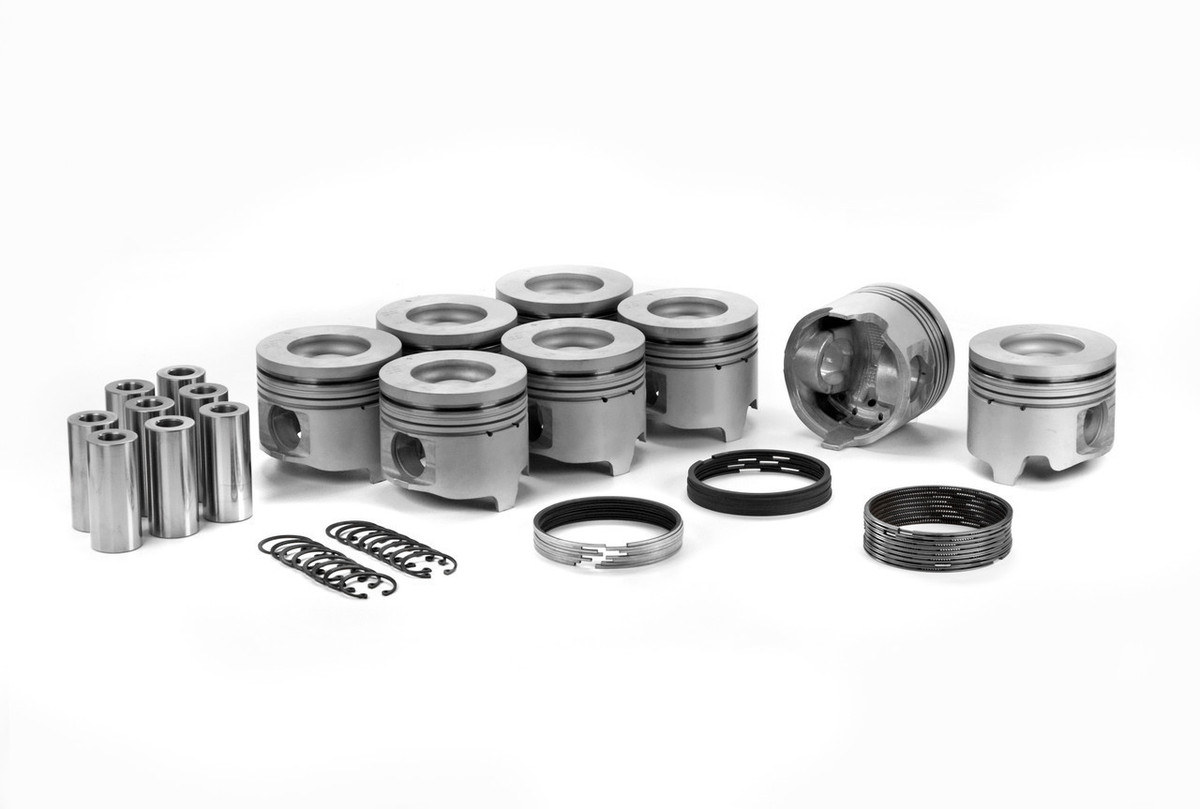

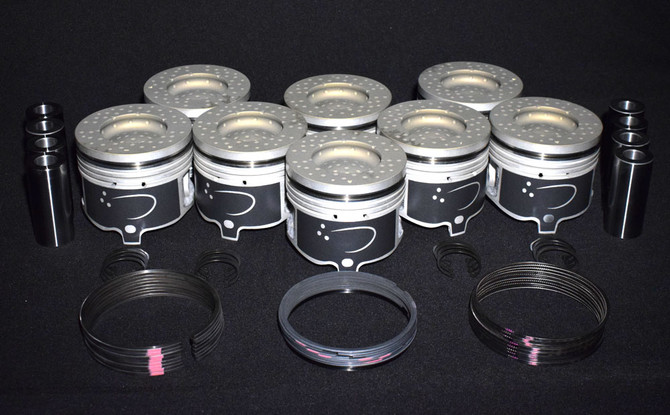

Speed of Air Piston & Ring Set (.5MM Over) - 2001-2005 GM 6.6L LB7/LLY Duramax
Part # XA7208-0.5K1

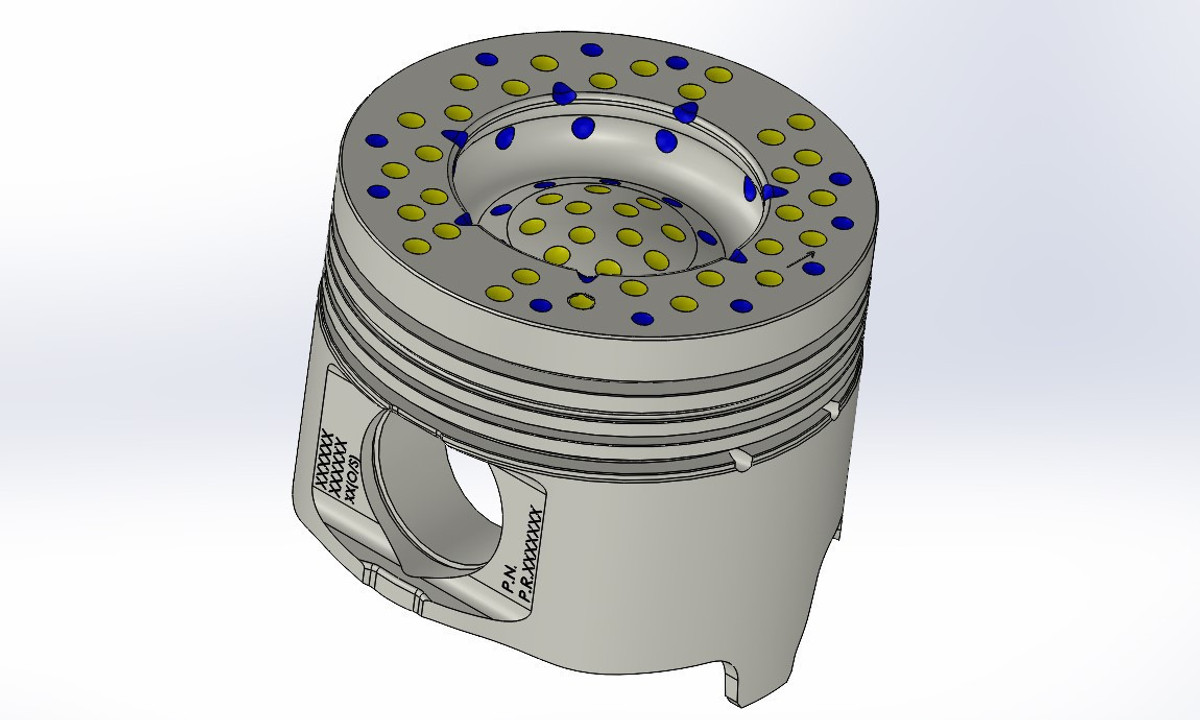

Speed of Air's patented engine technology creates a drastically more efficient combustion process which results in a number of closely related benefits. Our technology creates sufficient lean burn to significantly reduce NOx while also reducing CO and HC emissions. Because more fuel is being completely burned in the combustion chamber, fuel consumption is decreased per Brake-Specific Horse Power. Likewise, available horsepower and torque are increased per specific fuel consumption. Finally, the reduction in carbon deposits—which resolve as soot in the engine oil—allows for extended oil change service intervals while prolonging the life of all lubricated bearing surfaces.
Speed of Air Hyperformance diesel pistons are proudly manufactured under license by United Engine & Machine Co. Every set of Hyperformance Pistons is custom made under the strictest quality control processes in the industry and designed to provide you unparalleled performance over the life of your engine. To learn more about Speed of Air Technologies or United Engine & Machine Co.
Features & Advantages of an SOA Piston Ring Set
- Increase in Fuel Economy
- Reduced Oil Change Intervals
- Reduced ReGen Cycles and DEF Use
- Decrease in NoX Emissions
- Reduction in Visible Exhaust/Opacity
- Smoother and Quieter Engine Operation
Specs:
| Sold As |
Piston Set with Rings |
| Engine Manufacturer |
General Motors |
| Engine Family |
LB7/LLY Duramax |
| Oe Assembly |
97303755-R, 224-3452-R |
| Year Range |
2001-2005 |
| Bore (in) |
4.055 |
| Bore (mm) |
103 |
| Stroke (in) |
3.898 |
| Stroke (mm) |
99 |
| Eng. Disp. Liters |
6.6 |
| Eng. Disp. In. |
403 |
| Oversizes |
STD, .5mm, .75mm, 1.0mm |
| Rod (in) |
6.42 |
| Rod (mm) |
163 |
| Compression Height IN |
1.96 |
| Compression Height MM |
49.8 |
| Crown (cc) |
+38cc |
| Compression Ratio |
17.5:1 |
| Pin Type |
Floating |
| Pin Diameter (in) |
1.358 |
| Pin Diameter (mm) |
34.5 |
| Ring Pack |
3.0K, 2.0mm, 3.0mm |
| Top Land |
0.394 |
