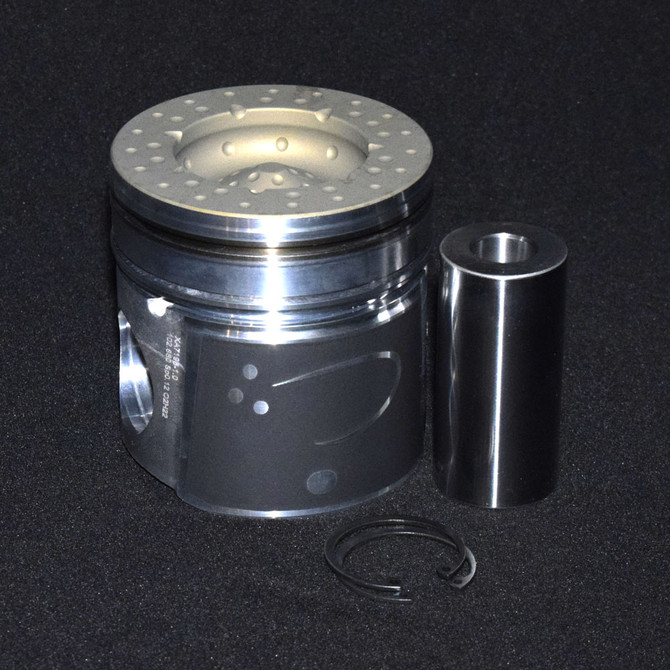

Speed of Air Piston & Ring Set (Standard) - 1998-2002 Cummins 5.9L ISB 24V HO
Part # XA7200-STDK1
Speed of Air's patented engine technology creates a drastically more efficient combustion process which results in a number of closely related benefits. Our technology creates sufficient lean burn to significantly reduce NOx while also reducing CO and HC emissions. Because more fuel is being completely burned in the combustion chamber, fuel consumption is decreased per Brake-Specific Horse Power. Likewise, available horsepower and torque are increased per specific fuel consumption. Finally, the reduction in carbon deposits—which resolve as soot in the engine oil—allows for extended oil change service intervals while prolonging the life of all lubricated bearing surfaces.
Speed of Air Hyperformance diesel pistons are proudly manufactured under license by United Engine & Machine Co. Every set of Hyperformance Pistons is custom made under the strictest quality control processes in the industry and designed to provide you unparalleled performance over the life of your engine. To learn more about Speed of Air Technologies or United Engine & Machine Co.
Features & Advantages of an SOA Piston Ring Set
- Increase in Fuel Economy
- Reduced Oil Change Intervals
- Reduced ReGen Cycles and DEF Use
- Decrease in NoX Emissions
- Reduction in Visible Exhaust/Opacity
- Smoother and Quieter Engine Operation
Specs:
| Sold As |
Piston Set with Rings |
| Engine Manufacturer |
Dodge |
| Engine Family |
Cummins 5.9L I6 24V HO 1998-2002 |
| Vin Code |
7 |
| Oe Assembly |
3946051, 3934047 |
| Eng. Disp Liters |
5.9 |
| Eng. Disp. In. |
369 |
| Bore (in) |
4.015 |
| Bore (mm) |
102 |
| Crown (cc) |
+45.0cc |
| Compression Ratio |
17.5:1 |
| Top Land |
0.405 |
| Pin Type |
Floating |
| Rod (in) |
7.56 |
| Cylinder Bore Diameter MM |
102 |
| Bore Diameter IN |
4.015 |
| Compression Height IN |
2.818 |
| Compression Height MM |
71.6 |
| Cylinder Bore Diameter IN |
4.015 |
| Bore Diameter MM |
102 |
| Pin Diameter (mm) |
40 |
| Ring Pack |
3.0K, 2.39mm, 4.0mm |
| Year To |
2002 |
| Year Range |
2001-2002 |
| Crown Type |
CONTOURED HEAD |
| Pin Number |
7195D-PP |
| Stroke (in) |
4.724 |
| Rod (mm) |
191.97828 |
| Includes Ring Set |
20028.STD |
| Pin Configuration |
Centered |
| Make For Engine Family |
Cummins |
| Pin Diameter (in) |
1.575 |
| Oversized |
No |
| Model |
Truck |
| Oversizes |
STD .50mm 1.0mm |
| Stroke (mm) |
120 |
| Oversize |
STD |
| Base Number |
7200D |
| Year From |
2001 |
| Alloy |
332 |
