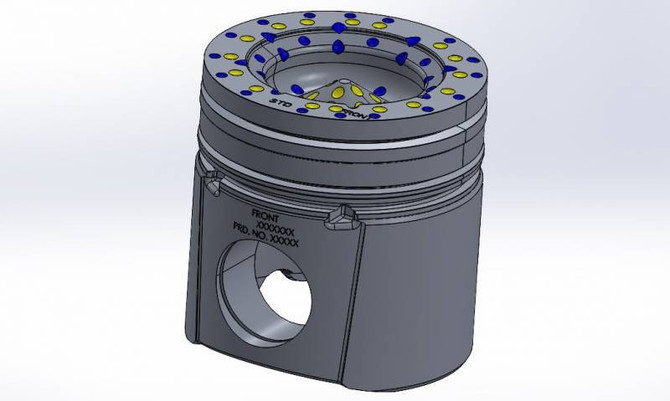

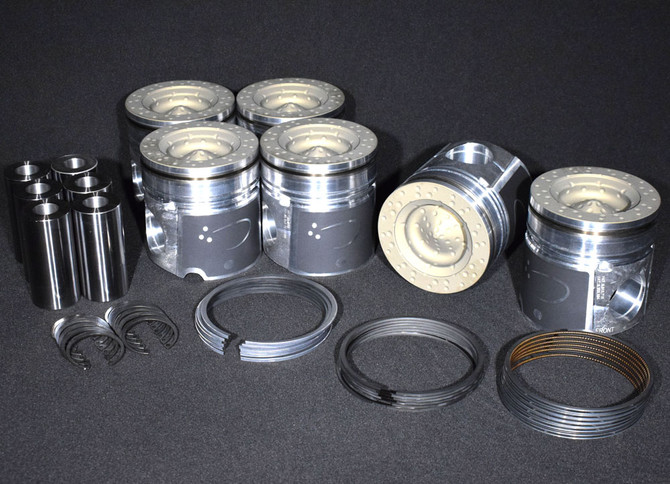

Speed of Air Piston & Ring Set (Standard) - 2003-2004 Cummins I6 ETC/Non-HO
Part # DU10037-STDK1
Speed of Air's patented engine technology creates a drastically more efficient combustion process which results in a number of closely related benefits. Our technology creates sufficient lean burn to significantly reduce NOx while also reducing CO and HC emissions. Because more fuel is being completely burned in the combustion chamber, fuel consumption is decreased per Brake-Specific Horse Power. Likewise, available horsepower and torque are increased per specific fuel consumption. Finally, the reduction in carbon deposits—which resolve as soot in the engine oil—allows for extended oil change service intervals while prolonging the life of all lubricated bearing surfaces.
Speed of Air Hyperformance diesel pistons are proudly manufactured under license by United Engine & Machine Co. Every set of Hyperformance Pistons is custom made under the strictest quality control processes in the industry and designed to provide you unparalleled performance over the life of your engine. To learn more about Speed of Air Technologies or United Engine & Machine Co.
Features & Advantages of an SOA Piston Ring Set
- Increase in Fuel Economy
- Reduced Oil Change Intervals
- Reduced ReGen Cycles and DEF Use
- Decrease in NoX Emissions
- Reduction in Visible Exhaust/Opacity
- Smoother and Quieter Engine Operation
Specs:
| Sold As |
Piston Set with Rings |
| Engine Manufacturer |
Dodge |
| Engine Family |
Cummins 5.9L I6 HO 2003-2004 |
| Vin Code |
C |
| Oe Assembly |
3965497 |
| Eng. Disp Liters |
5.9 |
| Eng. Disp. In. |
369 |
| Bore (in) |
4.015 |
| Bore (mm) |
102 |
| Crown (cc) |
+44.9cc |
| Compression Ratio |
17.1:1 |
| Top Land |
0.38 |
| Pin Type |
Floating |
| Year From |
2003 |
| Oversize |
STD |
| Alloy |
332 |
| Crown Type |
CONTOURED HEAD |
| Stroke (mm) |
120 |
| Pin Diameter (mm) |
40 |
| Cylinder Bore Diameter MM |
102 |
| Bore Diameter MM |
102 |
| Cylinder Bore Diameter IN |
4.015 |
| Compression Height MM |
71.3 |
| Compression Height IN |
2.809 |
| Pin Diameter (in) |
1.575 |
| Oversized |
No |
| Pin Configuration |
Centered |
| Rod (in) |
7.568 |
| Pin Number |
7195D-PP |
| Stroke (in) |
4.724 |
| Ring Pack |
3.0K, 2.39mm, 4.0mm |
| Includes Ring Set |
20024.STD |
| Oversizes |
STD .5mm 1.0mm |
| Make For Engine Family |
Cummins |
| Lock |
7195D-CP |
| Rod (mm) |
192.227 |
| Base Number |
7197D |
| Year To |
2004 |
| Year Range |
2003-2004 |
