BD Diesel Performance

BD - 48RE Transmission with Billet Input & Converter Package - 2003-2004 Dodge 2WD 1064192BM

0 review Write a Review
SKU: B/D1064192BM
$6,179.00
Freight (Continental US): +$600.00

Short Description

Refundable Core Charge: $2500

More Information

CORE CHARGE OPTIONS

Core Charge Agreement - If selecting to SEND CORE IN FIRST above, I understand that I will need to send in my core items first and have them accepted before the shipment of the new part or parts is authorized. If I select to pay the core charge, I understand that my part or parts can ship as soon as available.
Hurry up! Current stock:
Product Details

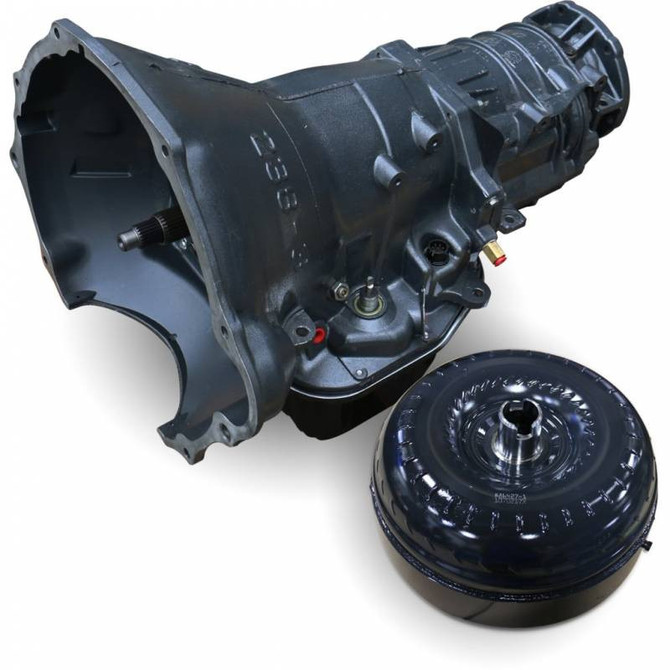

BD - 48RE Transmission with Billet Input & Converter Package - 2003-2004 Dodge 2WD

Part # 1064192BM

  • TRANSMISSION:
  • Upgraded Valvebody
  • Upgraded governor solenoid
  • Upgraded governor pressure transducer (47RE/48RE) - Twice the burst pressure than stock
  • Increased line pressure to 190-200psi
  • No shuttle shifting problems
  • Modified manual valve for lube in all positions
  • Stock thrust bushings replaced with roller Torrington bearings
  • Clutch Count: DIRECT 6
  • Clutch Count: FORWARD 5
  • Clutch Count: OD 6
  • Clutch Count: OD DIRECT 10
  • High temp/energy Raybestos band
  • Billet band lever
  • Billet band strut
  • Billet Input Shaft to take the "snap" from rapid throttle and high horsepower
  • Billet "Big" fine spline input shaft
  • Drilled intermediate shaft for increased lubrication
  • BD rigid aluminum heavy duty transmission pan
  • Pan adds 2qt extra oil capacity
  • Pan heat-dissipating fins keep temperature down
  • Magnetic drain plug
  • Increase the durability of your drivetrain
  • BD auxiliary full flow filter kit for extra protection
  • Cooler line case saver in every transmission
  • Every transmission is tested on a dyno
  • Not warranted for Race or Sled Pull use
  • TORQUE CONVERTOR:
  • Triple Disc
  • Enhanced Stall - Street/Towing applications
  • Machined pistons
  • HD springs absorb shock of engagement
  • Stamp forged 1-piece cover
  • Eliminates warpage from clutch heat
  • Taller cover can be rebuilt more often
  • Trapezoid teeth design
  • Engineered tighter tolerances
  • Self-centering teeth design increases contact decreases wear and chatter
  • Thrust bearings - not plastic thrust washers
  • Riveting process ensures alignment & eliminates vibration or embrittlement from welding
  • Cast stator designs maximizes torque
  • New sprag components ensure long term durability
  • Furnaced brazed fins reduces internal leakage for improved fluid coupling efficiency
  • Reduced overall weight by 12lbs compared to competitors

Warranty

Parts
  • 36-Months
  • 150,000 Miles
Labour
  • 24,000 miles
  • 12-Months
Note
  • No Race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.
