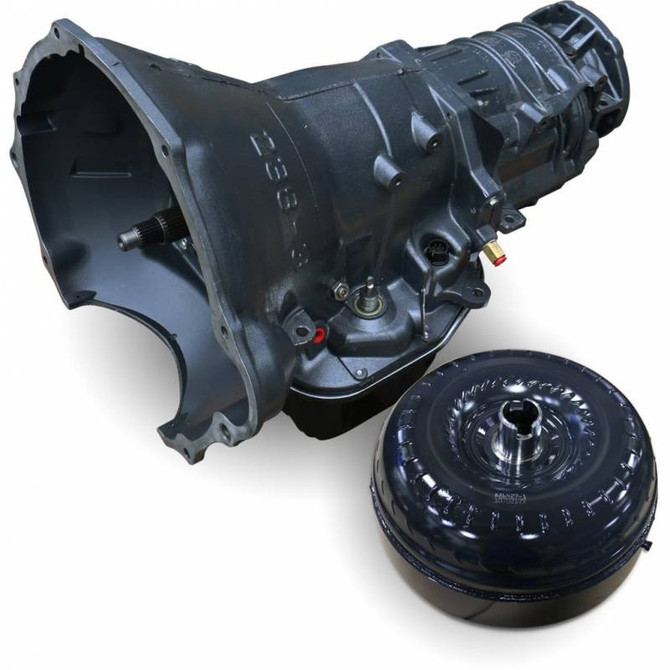

BD Diesel Performance BD - 48RE Transmission with Billet Input & Converter Package - 2003-2004 Dodge 4WD 1064194BM

BD Diesel Performance

BD - 48RE Transmission with Billet Input & Converter Package - 2003-2004 Dodge 4WD 1064194BM

Name: BD - 48RE Transmission with Billet Input & Converter Package - 2003-2004 Dodge 4WD 1064194BM
Brand: BD Diesel Performance
SKU: B/D1064194BM
Price: 6554.95 USD
Availability: InStock

SKU: B/D1064194BM

Write a Review

Freight (Continental US): +$600.00

Short Description:

2003 - 2004 4WD Dodge 5.9L Cummins with 48RE Transmission

Note: Must ship to an address with either a loading-dock or fork-lift. Item may not be available for Residential delivery. Expedited delivery is typically NOT available for freight items. If you select shipping options other than Ground or default method we may have to contact you if that service is not available or charges are different for your area. If you are unsure of any requirements, please contact usbefore making your order.

Core charge is for both Transmission and converter. Both cores must be returned in order to receive a full refund.

This item requires a Core Return or Core Charge

Please see link below for more information

Visit: Core Return Policy and Information

Refundable Core Charge: $2500

CORE CHARGE OPTIONS

Core Charge *

I understand and agree to terms of paying or defering my core charge. *

Core Charge Agreement - If selecting to SEND CORE IN FIRST above, I understand that I will need to send in my core items first and have them accepted before the shipment of the new part or parts is authorized. If I select to pay the core charge, I understand that my part or parts can ship as soon as available.

Hurry up! Current stock:

Total: $6,554.95

Quantity:

Product Details
Fitment

Product Details

BD - 48RE Transmission with Billet Input & Converter Package - 2003-2004 Dodge 4WD

Part # 1064194BM

TRANSMISSION:
Upgraded Valvebody
Upgraded governor solenoid
Upgraded governor pressure transducer (47RE/48RE) - Twice the burst pressure than stock
Increased line pressure to 190-200psi
No shuttle shifting problems
Modified manual valve for lube in all positions
Stock thrust bushings replaced with roller Torrington bearings
Clutch Count: DIRECT 6
Clutch Count: FORWARD 5
Clutch Count: OD 6
Clutch Count: OD DIRECT 10
High temp/energy Raybestos band
Billet band lever
Billet band strut
Billet Input Shaft to take the "snap" from rapid throttle and high horsepower
Billet "Big" fine spline input shaft
Drilled intermediate shaft for increased lubrication
BD rigid aluminum heavy duty transmission pan
Pan adds 2qt extra oil capacity
Pan heat-dissipating fins keep temperature down
Magnetic drain plug
Increase the durability of your drivetrain
BD auxiliary full flow filter kit for extra protection
Cooler line case saver in every transmission
Every transmission is tested on a dyno
Not warranted for Race or Sled Pull use
TORQUE CONVERTOR:
Triple Disc
Enhanced Stall - Street/Towing applications
Machined pistons
HD springs absorb shock of engagement
Stamp forged 1-piece cover
Eliminates warpage from clutch heat
Taller cover can be rebuilt more often
Trapezoid teeth design
Engineered tighter tolerances
Self-centering teeth design increases contact decreases wear and chatter
Thrust bearings - not plastic thrust washers
Riveting process ensures alignment & eliminates vibration or embrittlement from welding
Cast stator designs maximizes torque
New sprag components ensure long term durability
Furnaced brazed fins reduces internal leakage for improved fluid coupling efficiency
Reduced overall weight by 12lbs compared to competitors

Warranty

Parts

36-Months
150,000 Miles

Labour

24,000 miles
12-Months

Note

No Race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.

WARNING : This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov

FITMENT
