BD Diesel Performance

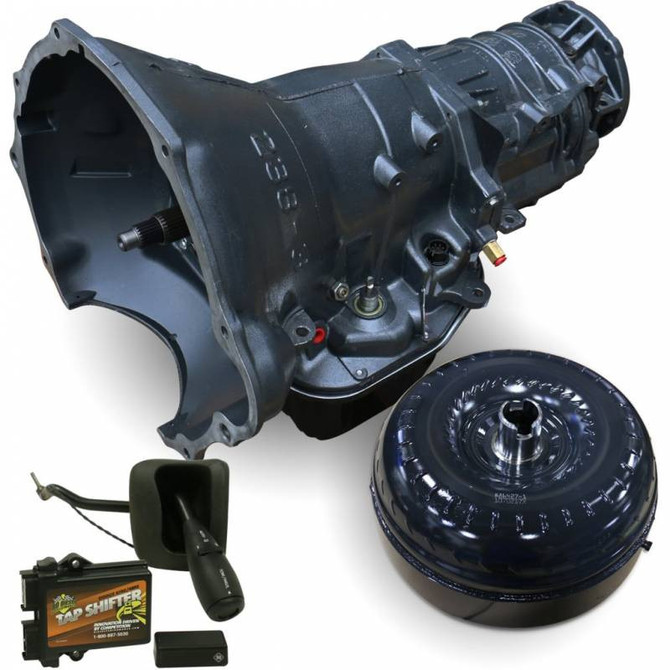

BD - 48RE Transmission with Billet Input & Converter Package with TapShifter - 2005-2007 Dodge 4WD w/TVV Stepper Motor 1064234BMT

0 review Write a Review
SKU: B/D1064234BMT
$7,493.00
Freight (Continental US): +$600.00

Short Description:

2005 - 2007 Dodge 4WD 48RE Transmission w/TVV Stepper Motor

Note: Must ship to an address with either a loading-dock or fork-lift. Item may not be available for Residential delivery. Expedited delivery is typically NOT available for freight items. If you select shipping options other than Ground or default method we may have to contact you if that service is not available or charges are different for your area. If you are unsure of any requirements, please contactus before making your order.

Core charge is for both Transmission and converter. Both cores must be returned in order to receive a full refund.


Refundable Core Charge: $2500

More Information

CORE CHARGE OPTIONS

Core Charge Agreement - If selecting to SEND CORE IN FIRST above, I understand that I will need to send in my core items first and have them accepted before the shipment of the new part or parts is authorized. If I select to pay the core charge, I understand that my part or parts can ship as soon as available.
Hurry up! Current stock:
Product Details
BD - 48RE Transmission with Billet Input & Converter Package with TapShifter - 2005-2007 Dodge 4WD w/TVV Stepper Motor

Part # 1064234BMT

  • TRANSMISSION:
  • Upgraded Valvebody
  • Upgraded governor solenoid
  • Upgraded governor pressure transducer (47RE/48RE) - Twice the burst pressure than stock
  • Increased line pressure to 190-200psi
  • No shuttle shifting problems
  • Modified manual valve for lube in all positions
  • Stock thrust bushings replaced with roller Torrington bearings
  • Clutch Count: DIRECT 6
  • Clutch Count: FORWARD 5
  • Clutch Count: OD 6
  • Clutch Count: OD DIRECT 10
  • High temp/energy Raybestos band
  • Billet band lever
  • Billet band strut
  • Billet Input Shaft to take the "snap" from rapid throttle and high horsepower
  • Billet "Big" fine spline input shaft
  • Drilled intermediate shaft for increased lubrication
  • BD rigid aluminum heavy duty transmission pan
  • Pan adds 2qt extra oil capacity
  • Pan heat-dissipating fins keep temperature down
  • Magnetic drain plug
  • Increase the durability of your drivetrain
  • BD auxiliary full flow filter kit for extra protection
  • Cooler line case saver in every transmission
  • Every transmission is tested on a dyno
  • Not warranted for Race or Sled Pull use
  • TORQUE CONVERTOR:
  • Triple Disc
  • Enhanced Stall - Street/Towing applications
  • Machined pistons
  • HD springs absorb shock of engagement
  • Stamp forged 1-piece cover
  • Eliminates warpage from clutch heat
  • Taller cover can be rebuilt more often
  • Trapezoid teeth design
  • Engineered tighter tolerances
  • Self-centering teeth design increases contact decreases wear and chatter
  • Thrust bearings - not plastic thrust washers
  • Riveting process ensures alignment & eliminates vibration or embrittlement from welding
  • Cast stator designs maximizes torque
  • New sprag components ensure long term durability
  • Furnaced brazed fins reduces internal leakage for improved fluid coupling efficiency
  • Reduced overall weight by 12lbs compared to competitors

Warranty

Parts
  • 36-Months
  • 150,000 Miles
Labour
  • 24,000 miles
  • 12-Months
Note
  • No Race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.

WARNING : This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov

FITMENT
