BD Diesel Performance

BD - Duramax Allison 1000 Transmission w/ Billet Input and Triple Torque Converter Package - GM 2001-2004 LB7 4WD 1064704BM

0 review Write a Review
SKU: B/D1064704BM
$6,530.00
Freight (Continental US): +$600.00

Short Description

Refundable Core Charge: $2100

More Information

CORE CHARGE OPTIONS

Core Charge Agreement - If selecting to SEND CORE IN FIRST above, I understand that I will need to send in my core items first and have them accepted before the shipment of the new part or parts is authorized. If I select to pay the core charge, I understand that my part or parts can ship as soon as available.
Hurry up! Current stock:
Product Details

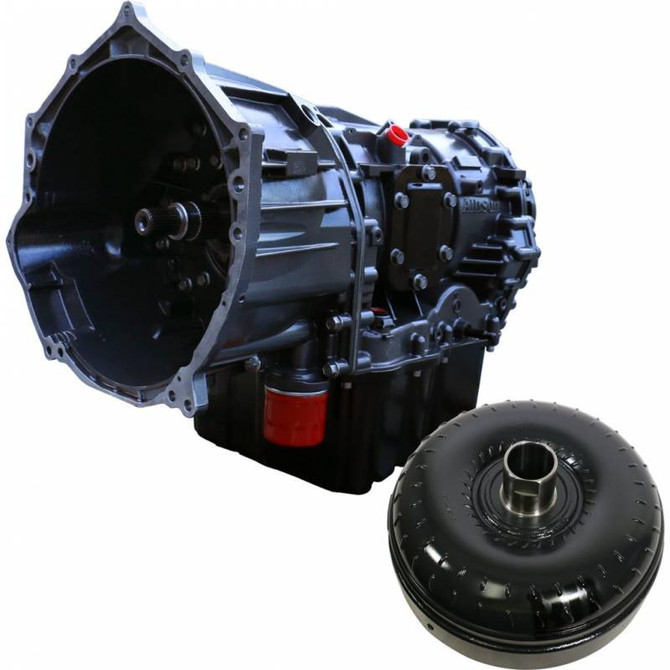

BD - Duramax Allison 1000 Transmission & Converter Package - GM 2001-2004 LB7 4WD

Part # 1064704BM

  • TRANSMISSION:
  • Increase the durability of your drivetrain
  • BD Aluminum HD deep transmission pan, increases oil capacity by 3.5qt
  • High energy clutch material
  • Revised oil circuits
  • New convertor lock up valve to boost lock-up pressures
  • New A & B trim valves deliver full line pressure to the clutches
  • Increased clutch count
  • Clutch Count: C1 8 clutches (14% increase over stock)
  • Clutch Count: C2 7 clutches (17% increase over stock)
  • Clutch Count: C3 6 clutches (50% increase over stock)
  • Clutch Count: C4 6 clutches (0% increase over stock)
  • Clutch Count: C5 7 clutches (17% increase over stock)
  • Each transmission is dyno tested
  • Billet Input Shaft to take the "snap" from rapid throttle and high horsepower
  • TORQUE CONVERTOR:
  • Triple Disc
  • Enhanced Stall - Street/Towing applications
  • Machined pistons
  • HD springs absorb shock of engagement
  • Stamp forged 1-piece cover
  • Eliminates warpage from clutch heat
  • Taller cover can be rebuilt more often
  • Trapezoid teeth design
  • Engineered tighter tolerances
  • Self-centering teeth design increases contact decreases wear and chatter
  • Thrust bearings - not plastic thrust washers
  • Riveting process ensures alignment & eliminates vibration or embrittlement from welding
  • Cast stator designs maximizes torque
  • New sprag components ensure long term durability
  • Furnaced brazed fins reduces internal leakage for improved fluid coupling efficiency
  • Reduced overall weight by 12lbs compared to competitors

Warranty

Parts
  • 36-Months
  • 150,000 Miles
Labour
  • 24,000 miles
  • 12-Months
Note
  • No Race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.
