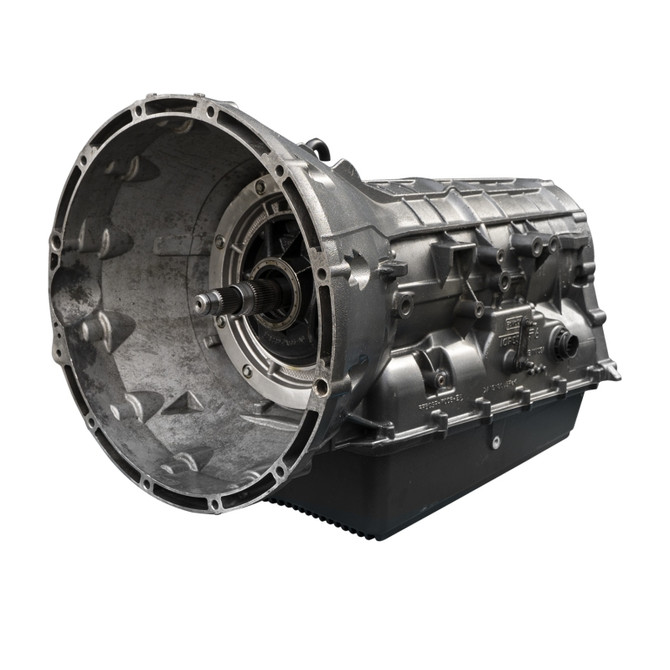

BD - Roadmaster 6R140 2WD/4WD Transmission & Converter Package Ford 6.7L Power Stroke 2011-2016 1064524SS

Part #1064524SS

The Roadmaster 6R140 transmission is BD's base transmission for stock, non-modified trucks that are looking to increase reliability and longevity. This transmission comes with OEM clutch counts, an OEM valve body, and BD's Deep Transmission Pan. Every one of our 6R140 Roadmaster Transmission Packages includes a ProForce Torque Converter and a BD Pressure Controller.

TRANSMISSION:

• Brand new OEM valve body
• BD Deep Sump Pan
• Stock Clutch Counts

PRESSURE CONTROLLER:

• 76% more clutch holding power
• Delivers up to 300psi line pressure at WOT
• Only active when boost over 15psi, unlike solenoid foolers or plugs which are active all the time
• Does not create parasitic load or extra heat when inactive

TORQUE CONVERTOR:

• Ideal replacement for tired stock torque converter
• Great for street and towing applications
• Dual surface clutch assembly
• Machined steel reaction ring replaces flexible factory stamping
• Furnace-brazed pump and turbine fins
• Fully remanufactured for long service life

• 12 Hours
• Will need Ford Scanner

• 24-Months

• 12-Months

• No Race abuse covered

• 2WD applications require the yoke adapter and rear mount bracket be transferred over during installation
• Early 2011 model years will require 6 bolt flexplate (Approx. Pre Jan 2012 build date) See BD #1041245 or contact Ford
• Ford scanner required to update the TCM with the new solenoid code and initiate a relearn - very critical component to make sure the transmission works properly
• Transmission is compatible with both 2wd and 4wd applications

• This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4)
