Carli Dominator: The ultimate no compromise, utilitarian suspension system. Carli King 3.0” shocks, custom-tuned and ready for any obstacles. This system can handle the toughest of terrain while still getting you around town in comfort.
Carli Dominator Leveling/Lift, Base, 3” Lift, 03-09 Ram 2500/3500, Diesel, Long Arm
- The Carli Dominator Long Arm system utilizes Carli-tuned King 3.0 shocks paired with fabricated long arms that take the truck to the next level of performance.

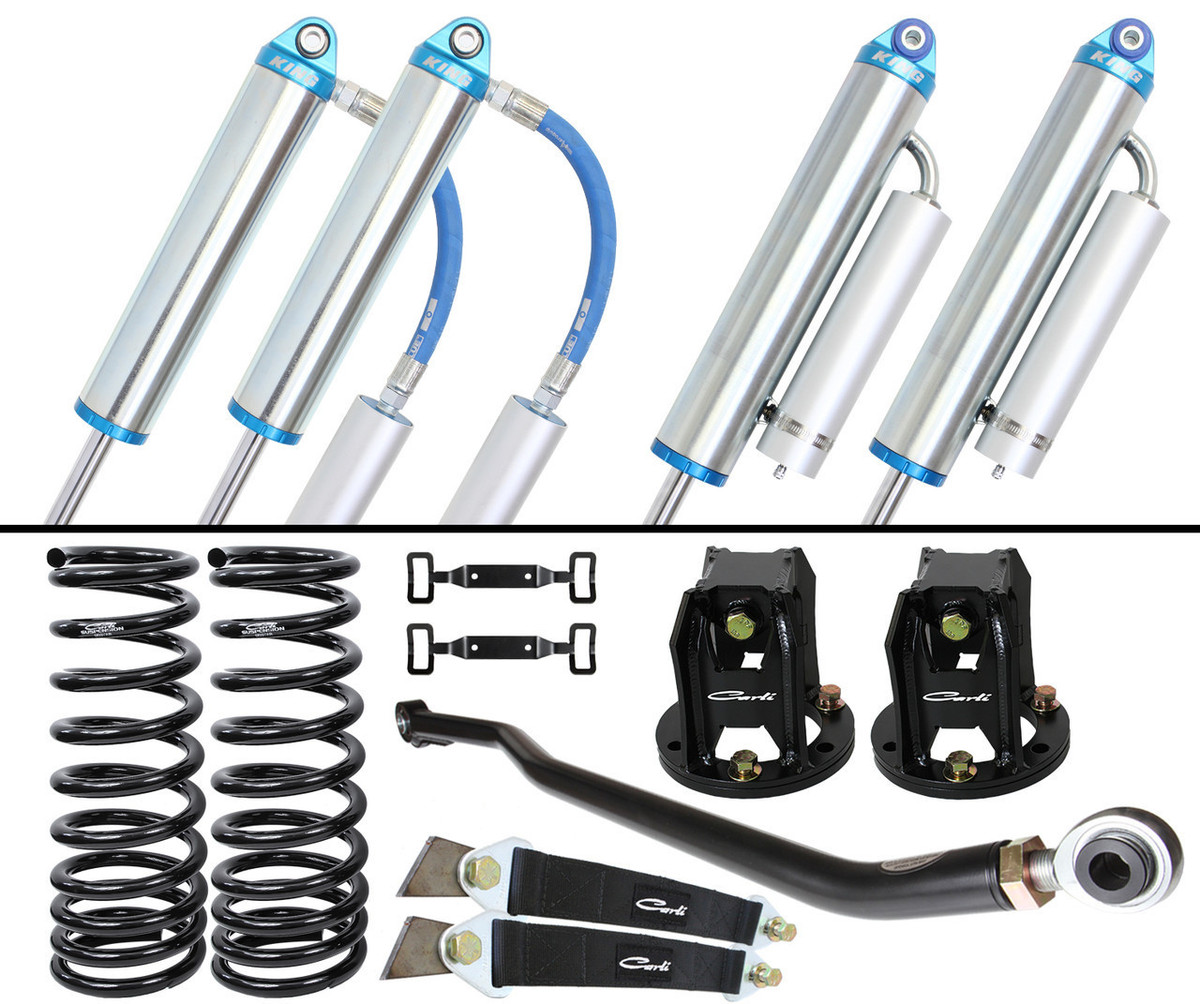

- System Includes front and rear shock package, long arm system, front bump drops, braided brake lines, multi rate coil springs, fabricated shock towers, rear crossmember gusset and adjustable track bar.
- Included rear crossmember gusset requires welding.
- Allows for 12" of front suspension travel and 13" rear.
- This system requires Torsion Sway Bar and Full Progressive Leaf Springs to properly function.
- 2003-2007 Rams MUST convert to factory “T-Style” steering
Base Kit Includes:
| Part Number |
Description |
| AS-DD30SPKG-03-D-LA |
03-12 RAM 2500/3500 4X4 DIESEL CARLI TUNED KING 3.0" RR 3" LONG ARM LIFT FRONT & REAR SHOCK PKG |
| CS-D30GUSSET |
03-12 RAM 2500/3500 4X4 DOMINATOR REAR CROSSMEMBER GUSSET KIT - WELD IN |
| CS-D3BBL-03 |
03-11 RAM 2500/3500 3" LIFT EXTENDED BRAKE LINE KIT (SINGLE REAR LINE - NON TC) |
| CS-DATB-03 |
03-12 RAM 2500/3500 ADJUSTABLE TRACK BAR 0-3" LIFT |
| CS-DCM3-03-S |
03-12 RAM 2500/3500 4X4 LONG ARM DROP BRACKET TO TRANSMISSION X-MEMBER BRACE |
| CS-DFBD-1 |
03-24 RAM 2500/3500 4X4 1" FRONT BUMPSTOP DROP |
| CS-DFST625 |
94-12 RAM 2500/3500 FABRICATED SLIDE-OVER SHOCK TOWER - 6.25" TALL (EXTENDED TRAVEL APPLICATION) |
| CS-DLA3-DROP |
03-12 RAM 2500 4X4 LONG ARM FRAME DROP BRACKETS |
| CS-DLAPKG-03 |
03-09 RAM 2500/3500 RAM LONG ARMS, CRATED AND ASSEMBLED |
| CS-DLRC-10-D |
10-12 RAM 2500/3500 (& 03-12 LONG ARM) 4X4 DIESEL 3" LIFT FRONT LINEAR RATE COILS SPRINGS |
| CS-DLSK315 |
03-12 RAM 2500/3500 4X4 15" LIMIT STRAP KIT |
| CS-HOLESAWKIT-4.5 |
4" HOLE SAW AND ARBOR |
| CS-SRM-25 |
UNIVERSAL SHORT RESERVOIR MOUNTS 2.5" |
Sway Bar Options
*ONE REQUIRED* - As this is a high-performance, no compromise system, we recommend the Carli Torsion Sway Bar, The factory sway bar with extended links would be severely limiting to the performance of this system boasting 50% more suspension travel than factory.
Rear Leaf Options
*ONE REQUIRED* - For the same reason as the above sway bar replacement, we only offer this system with the option for Full Progressive Leaf springs; add-a-packs and stock leaf springs are NOT recommended. Selecting "NO Rear Leaf Spring Selection" will result in an unknown ride quality and height result. *The HD Options is ONLY for those running a CONSTANT 1,000lbs in the bed at all times.*
Leaf Spring Shackle
Much of the jarring ride of the leaf-spring rear can be attributed to the factory vulcanized bushings in the leaf spring pack and shackle. The factory shackle is very strong BUT the design is not conducive to a smooth ride. The Carli shackle is constructed of 1/4″ American cold-rolled steel. The mid-length gusset ensures no deflection while the serviceable bushings offer a far superior ride to the bind of the factory bushings.
Long Travel Airbag Option
*OPTIONAL* - Restores Factory capacity to reduced rate Carli Leaf Springs. Provides the best of both ends of the spectrum - ride on Carli's soft-rate leaf springs when unloaded then air the bags up to level the chassis and support your load!
Add Steering Stabilizer
*OPTIONAL* - when adding oversized tires, it's always recommended to upgrade one's stabilizers. We recommend the low-mount for those running 35s and an opposing setup for those with 37s.
Axle Truss Option
*OPTIONAL*
- MASSIVE axle support ensures the axle stays true no matter the beating
- 1/4" Cold Rolled Steel Construction with full-length internal X-Bracing
- Includes Upper C Gussets & Lower C Doubler Plates
- WELD-ON Fabrication Part
Front Hydraulic Bump Stops
*OPTIONAL* - Front Hydro Bump Systems are a perfect addition for any hardcore off-roader wanting to squeeze every drop of performance from their Carli Dominator or Unchained System.
Dominator Long Arm System
This system requires customers to cut off the factory control arm mounts in favor of the Carli Drop Brackets to house our internally gusseted, fully fabricated Long Arm System. These arms are over 50% longer than the factory arms boasting 3/16” construction, internal gusseting, extended travel capability, more linear travel stroke and a better ride quality given their length and position parallel to the ground.
To take advantage of the Long Arm’s capability, we’ve included a 6.25” tall, slide over-design shock tower to ease installation and accommodate the longer (12” Travel) shocks. Included 1” front bump stop drops and limit straps ensure customers can dish repetitive beatings to their King 3.0” shocks with confidence of full & safe utilization of the shock’s travel. In a short arm truck, it’s not uncommon to see 7” of up-travel (metal to metal) and 3” of down-travel. The combination of the long arm system’s 6.25” tall tower and 1” bump drop allows for our 12” travel shock and shifts the front axle’s operating range down 1”; the result, 3” more down-travel when compared to a short-arm system only sacrificing 1” of up-travel. This is a far more balanced setup spec’d with 6” of up travel and 6” of down-travel ensuring the front end maintains contact over rough terrain.
This system boasts Carli specific, blueprinted, Long-Travel King 3.0” shocks on all four corners. We run an OD end cap and weld on rod end with custom fittings to ensure perfect fitment with our slid-over shock towers (MUCH easier installation). We also developed an entirely new valving profile to suit the extended travel application and long arm geometry. We round off ALL our King shocks with shafts machined and polished from a solid piece of 17-4 Stainless. Unlike King’s standard shafts, there is no coating to wear off, weather is far less likely to hurt them and if there is a small chip, you can round the edges with emery cloth to ensure the seal housing isn’t damaged as they’re not brittle like the stock, hardened shafts. The shocks are finished with King oil good to -55* F. Note that all King shocks are built with a plated steel body. If subjected to inclement weather for extended periods, we recommend wrapping your shocks in 3M to provide a moisture barrier that’s replaceable.
Your truck will sit 3”-3.25” higher in the front (year/cab configuration dependent) with 70% more suspension travel than the factory platform thanks to the taller, linear rate coil springs. These systems require the extended travel capability of the linear spring as the free-height of the multi-rate coils was too short to reach the droop potential.
As this is a high-performance, no compromise system, it includes the Carli Torsion Sway Bar and Full Progressive Leaf Springs (No option for extended sway bar links or add-a-packs). The Carli Torsion Sway Bar removes the entire factory sway bar assembly replacing it with a torsion bar supported by fabricated drop brackets and delrin bushings. Fabricated sway bar arms and dual 5/8” FK heim end links round off the package.
The Full Progressive Leaf Pack lift the rear 1.5-2” by replacing the entire factory leaf spring assembly increasing travel and drastically increasing comfort throughout the entire usable travel stroke at the cost of a 15% payload reduction from a standard 2500. This payload reduction can be supplemented back to factory 3500 SRW capacity with the addition of the Long Travel Airbags for the best of both worlds; ride quality and payload capacity/load control.
When lifting the front end of a straight axle truck, the front axle is pulled off-center unless the proper linkages are addressed. Three inches of front lift equates to an axle shifted toward the driver’s side ¾” and back toward the cab ½”. This system includes an Adjustable Track Bar to push the axle back toward the passenger side and provide a stronger link with less deflection for the lifted application.
Wheel and Tire: This system will fit up to a 37”x12.5” tire with on 17”-18” wheels with 4.5” of backspacing. Significant trimming of stock fenders and front bumper will be required. If considering Fiberglass Fenders, a 37×13.5” wide tire would be possible. This system was tuned with 17” wheels on, 37” Toyo M/T at 40F/35R. The more rubber, the better the small bump compliance will be at proper inflation pressures. The ride will firm up as you go larger in wheel diameter.
