2003 - 2007 Dodge 5.9L Cummins Applications
Required Information: Your Vehicle year and VIN # will give us all info needed to get you the exact replacement engine for your power-train and electronics to match up. If you are buying for a conversion, please contact us before purchase and we can help!
Shipping/Handling & Core Return: Free Flat-Rate freight to commercial address with either a loading dock or fork lift. Residential delivery is available for additional charge. Lift-Gate truck service available at an additional charge. Customer is responsible for freight on core return only. Cores must be like for like and in usable condition to be eligible for core refund.
Break-In Procedure: All Industrial Injection short blocks and long blocks are required to be ran with Joe Gibbs Break In Oil (not included) for the initial 300-500 miles.
Part # PDM-59STLB

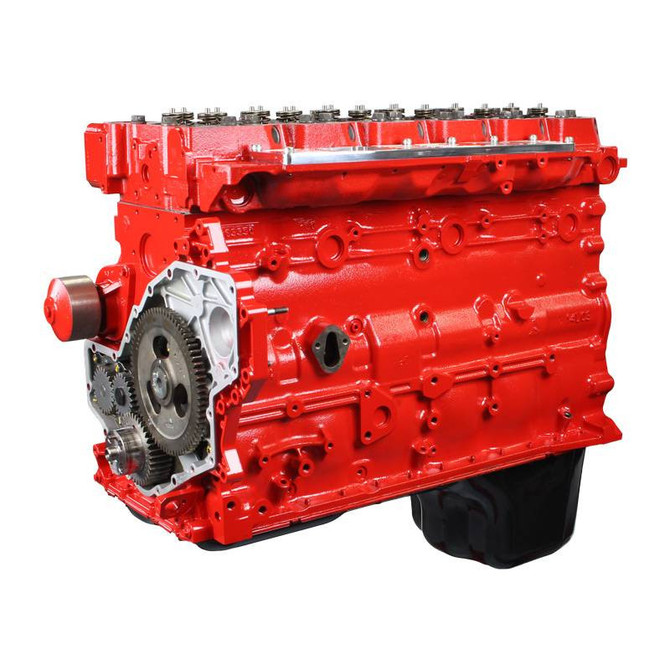

The Industrial Injection Stage 1 Long Block Engine is built for 2003-2007 Dodge Ram 5.9L Cummins Common Rail owners who want a powerful, reliable engine capable of handling increased horsepower while maintaining exceptional durability. Engineered with premium components, advanced machining processes, and over 40 years of diesel performance expertise, this long block is designed for towing, street performance, and demanding work applications.
Every engine starts with a balanced and blueprinted rotating assembly that is Sim-tested to ensure precision, reliability, and long service life. The foundation includes Industrial Injection X Series Coated & Chamfered Pistons, a 12mm Gorilla Girdle with ARP Main Studs, balanced Cummins connecting rods and crankshaft, and ARP rod bolts for superior bottom-end strength.
The engine is equipped with an Industrial Injection Stage 1 188/220 Camshaft, coated H-Series bearings, billet freeze plugs, new tappets, and a complete oiling and cooling system refresh featuring a new oil pump, water pump, and oil cooler.
Topping off the build is our Stage 1 CNC Ported & Polished Cylinder Head with Fire Ring Grooves. This premium cylinder head features stainless steel nitride-coated valves, hardened alloy valve guides, oversized high-temperature valve seats, drilled and tapped coolant freeze plugs, and 95lb performance valve springs to improve airflow, durability, and head gasket sealing.
WARNING : This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov
