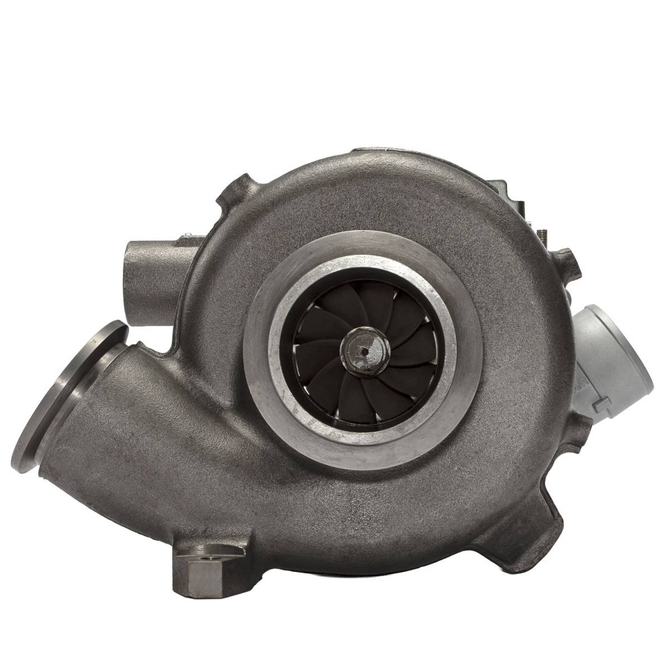

Stealth MACH-2 (67mm) Drop-In Turbo - 2003-2007 Ford 6.0L Power Stroke - CPS200333

Part # CPS200333

The class-leading charger has the turbine and compressor design to outflow and outmuscle the competition but none of the compromises that you've been conditioned to expect.  Whether you're simply replacing a stock turbo on your tune-only truck, looking for a turbo to clean up a mild set of injectors on your 550HP setup, or laying the foundation for a 750HP build you'll be glad you chose the Stealth.

FEATURES & BENEFITS:

• 750HP capable in competitive use
• 65.7mm - 11 Blade Extended Tip Billet 2618 Aluminum Alloy Compressor Wheel
• 70.4mm - 10 Blade 713C - Nickel Alloy Turbine Wheel
• Stock Appearing
• 11mm Billet high flow vanes and matched unison ring and proprietary doll pin spacing
• Ported exhaust outlet
• Fully Functional Exhaust Brake
• Quick Spool-Up = Useable Horsepower
• Wide Torque Curve
• Distinctive Throaty Howl
• 12-month Warranty



The 11-blade design is engineered to maximize peak power while minimizing the potential for surge while towing at altitude.  We do also offer a 6-blade compressor wheel that still drives great and makes a lot more WHISTLE! While it is louder, we would not recommend this option if you are towing at higher altitudes.  Redesigning the compressor to maximize power and drivability meant pouring over every detail from MWE groove width and placement to diffuser clearance.

The 6.0 Stealth 67 center section is fitted with a 360-degree thrust bearing to minimize thrust wear during competition use.

The turbine side innovation rivals the compressor side.  This turbine dwarfs the factory turbine and the Garrett Powermax in every way.  The turbine inducer is taller, allowing much higher flowing vanes that are actuated using a matched unison ring.  The 6.0 Stealth 67 features the largest turbine and vanes available in this frame.  Increasing turbine size dramatically reduces drive pressure under heavy load, helping you achieve nearly a 1:1 drive to boost ratio under most operating conditions.  Controlling drive pressure helps make more power and significantly lowers EGT's.

Calibrated Power offers a 1-year, unlimited-mile, warranty on this turbo.


Supersedes DM1583090302000
