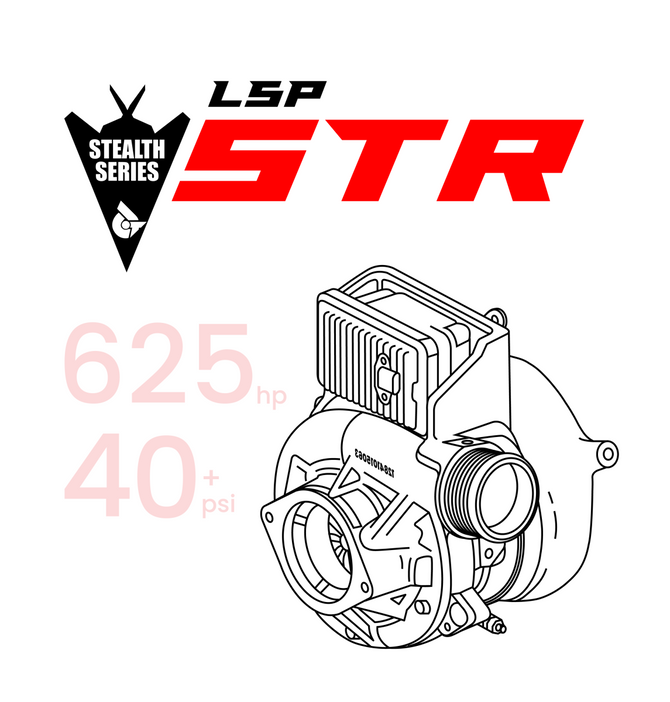

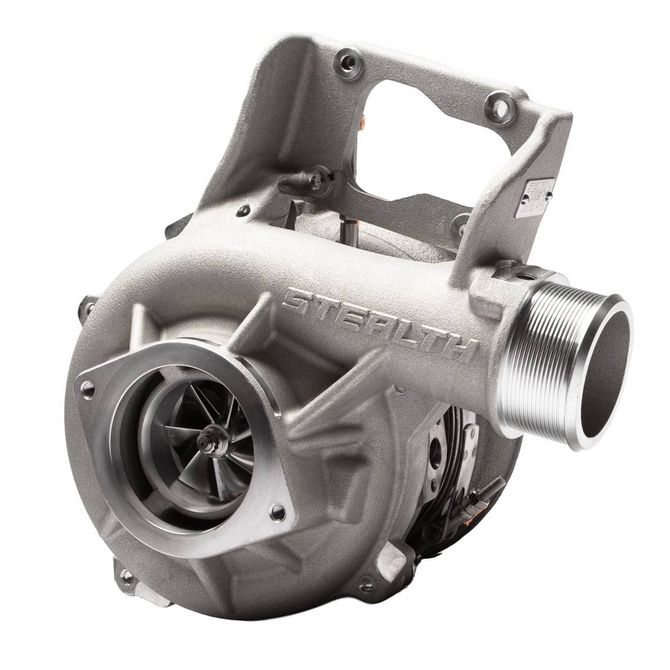

Stealth STR Drop-In VGT Turbo - 2017-2023 GM L5P 6.6L Duramax - CPS200143

Calibrated Power

Stealth STR Drop-In VGT Turbo - 2017-2023 GM L5P 6.6L Duramax - CPS200143

Name: Stealth STR Drop-In VGT Turbo - 2017-2023 GM L5P 6.6L Duramax - CPS200143
Brand: Calibrated Power
SKU: C/PCPS200143
Price: 2149 USD
Availability: InStock

SKU: C/PCPS200143

Write a Review

Free Ground Shipping (Continental US)

Short Description:

2017 - 2023 GM L5P 6.6L Duramax
Chevy/GMC - Silverado/Sierra - 2500/3500

Proven to support up to 625 RWHP with stock emissions
Extra airflow to make 80-100rwhp over 'Tune only' L5P
Works great with box tuners, custom tuning, or without tuning
Lower average EGTs and better overall EGT control
Built to last with more durable components
Lighter rotating assembly than stock
Lightning fast spool-up and immediate throttle response
62.5mm - 7+7 Blade Extended Tip Billet 2618 Aluminum Alloy Compressor Wheel
65mm - 9 Blade 713C - Nickel Alloy Turbine Wheel
Loud turbo whistle from 9-blade turbine
Zero surge even when towing heavy loads
Brand New Parts - No core charges

Does NOT include actuator. You can retain your factory actuator, but it must be recalibrated professionally to stock Minimum and Maximum Vane Position tables to not void your turbocharger's warranty.

Select Model Year *

Hurry up! Current stock:

Total: $2,149.00

Quantity:

Experienced Techs In-House

Dealer Inquiries Welcome

(406) 728-7620

Call for Availability and Ship Times

Product Details
Fitment

Product Details

Stealth STR Drop-In VGT Turbo - 2017-2023 GM L5P 6.6L Duramax

Part # CPS200143

There's nothing better than upgrading your parts instead of just replacing them. That's why the Stealth STR is the perfect upgrade for your 2017, 2018, or 2019 Chevy Silverado/ GMC Sierra 2500/3500 L5P Duramax. It combines the affordability of a stock turbo replacement with some of the best upgrades you can get in a drop-in L5P charger. Whether you’re looking for more power or simply a do-it-all kind of turbo with some added durability the STR delivers.

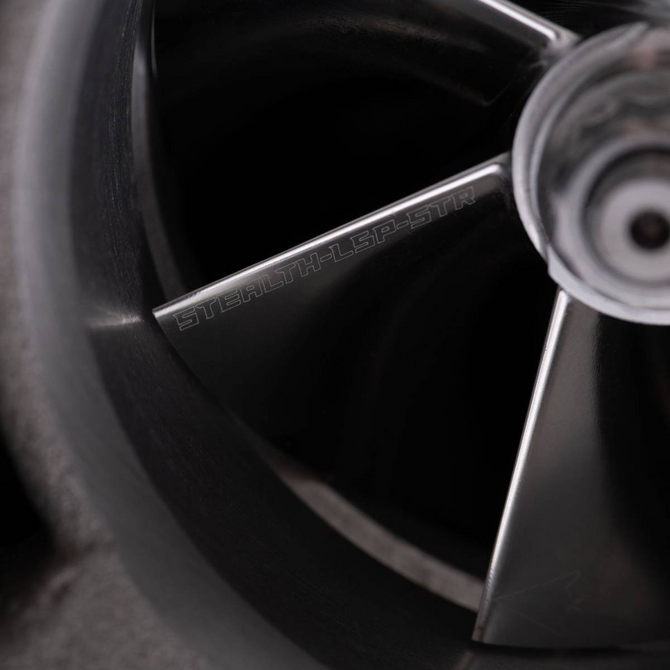

63mm Compressor Wheel

62.5mm - 7+7 Blade Extended Tip Billet 2618 Aluminum Alloy Compressor Wheel
Air flow to support 625rwhp (dynojet) with emissions in-tact
7-blade design provides higher airflow than stock
63mm sizing for peak weight to efficiency optimization
Lighter wheel design provides unmatched spool-up
Featuring the latest advancements in compressor wheel design
Made out of aerospace-grade billet aluminum
Peak boost of 40+psi

65mm High Flow Inconel™ Wheel

65mm - 9 Blade 713C - Nickel Alloy Turbine Wheel
65mm exducer compared to 62.5mm Stock
Noticeable turbo whistle
9-blade design provides higher flow and lower EGTs under load
Excellent boost to drive pressure ratio
Better durability than stock

Rotating Assembly (Compressor and Turbine Wheels)

6% lighter than the stock rotating assembly
Provides lightning fast spool-up
Boosts turbo efficiency and lowers drive pressures
Precision balanced in-house

Ported Exhaust Housing

Larger exhaust port opening to match larger turbine
Better exhaust gas flow post-turbine
Less back pressure

Stealth Turbo Benefits

Absolutely no core charges
Brand new parts and accessories
Brand new actuators available
1-year warranty on all of our turbos
Extended warranties available
Live on-site customer support team here to help

This turbo is a great fit if you...

Have reliability and performance as your top priorities
Want immediate response and great daily drivability
Have a Box Tuner or Custom Tuning installed on your truck
Want to make 625+rwhp or less
Tow with your truck often
Have a completely stock truck (this turbo does not require tuning)
Need a new replacement turbo for your L5P

DO YOU NEED AN ACTUATOR?

If you're wondering whether or not you should buy a new actuator to compliment your Stealth turbo, allow us to share our thoughts. The L5P actuator has a very low failure rate in the field. The fact that it's well-cooled and not in close proximity to the hot parts of the turbo means that it's out of harm's way. Unless you're experiencing codes that indicate actuator issues or know for a fact that your actuator is somehow damaged, we would suggest saving your money and retaining your factory actuator.

IMPORTANT NOTICE:
This turbo must only be operated with tuning that uses stock Minimum and Maximum Vane Position tables. Failure to do so can lead to excessive exhaust pressure and boost which may shorten the life of the turbo or engine and may void the turbo warranty.

Damage caused as a result of non-stock vane position tuning modifications will be the responsibility of the owner, not Calibrated Power Solutions Inc.

WANT EVEN MORE POWER?
Check out the Stealth MACH-1 (64mm) and Stealth MACH-2 (67mm)!

Replaces the following GM Part #s: 12709701044, 11547786, 12683985, 12689094

WARNING : This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov

FITMENT
