DUALOY Piston Kit (0.75MM OVER) - 2008-2010 Ford 6.4L Power Stroke 7205DKT.75MM

0 review Write a Review
MPN: 7205DKT.75MM
$1,214.76
Free Ground Shipping (Continental US)

Short Description

Hurry up! Current stock:
Product Details

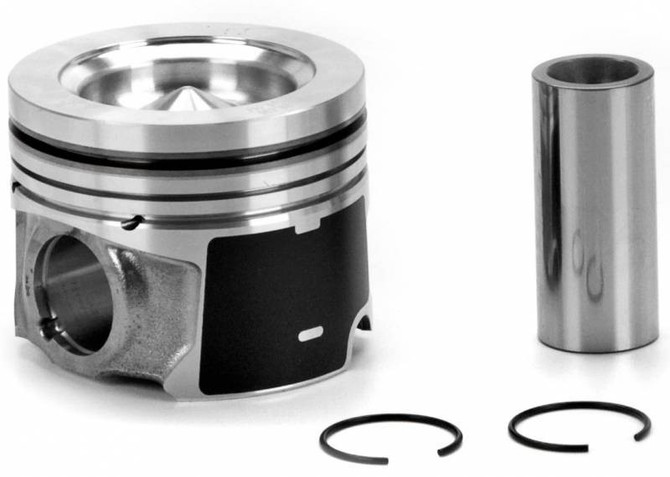

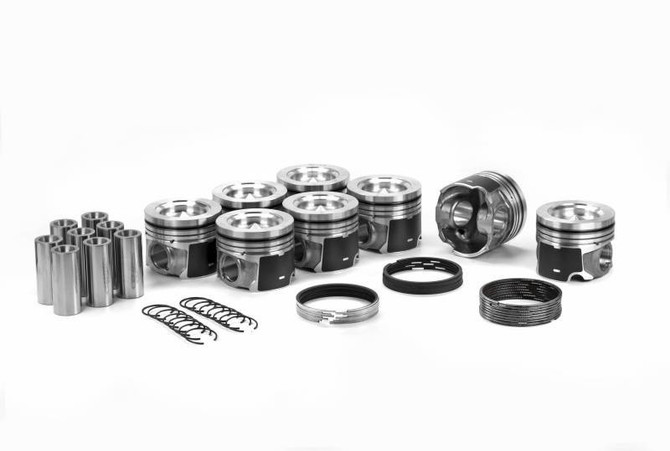

DUALOY Piston Kit (0.75MM OVER) - 2008-2010 Ford 6.4L Power Stroke

Part # 7205DKT.75MM

Dualoy Diesel pistons are cast and machined in-house to maintain the highest level of quality and consistency. Available for most popular diesel light and medium-duty truck applications, and engine codes. All Dualoy pistons feature a high strength top ring carrier to improve strength of the top land, and resistance to the extreme heat of diesel engines. Oil cooling galleries are cast into the pistons, as required depending on the specific application.

Specs:
Sold As Piston Set with Rings
Engine Manufacturer Ford
Engine Family 6.4L Power Stroke
Eng. Disp. In. 390
Eng. Disp Liters 6.4
Year Range 2007-2010
Vin Code R
Oe Assembly 1878410C1
Bore (in) 3.866
Bore (mm) 98.2
Stroke (in) 4.134
Stroke (mm) 105.0
Oversized Yes
Oversize .75mm
Ring Pack 2.5K, 2.0mm, 3.0mm
Top Land .368
Pin Number 7205D-CP
Pin Type Floating
Pin Diameter (in) 1.516
Pin Diameter (mm) 38.5
Lock 7205D-PP
Compression Height IN 2.059
Compression Height MM 52.3
Crown (cc) +37.8
Alloy 332
Compression Ratio 17.2:1
