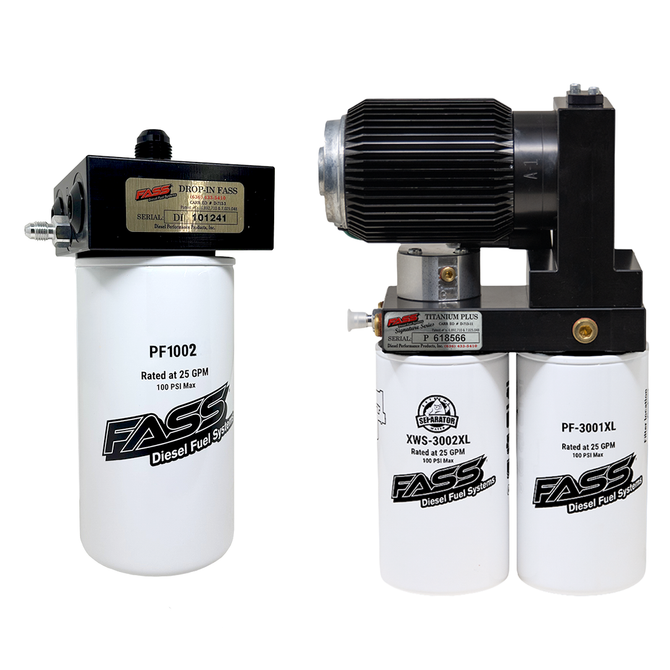

FASS - Ultimate Industrial Fuel System Upgrade - Class 8 - Semi - 290GPH
Part # INDP290G3001SD
Industrial Series PLUS + Drop-In Series HD Fuel Air Separation System
Fits: Class 8 Diesel Trucks, Commercial Vehicles, Heavy Equipment, Agricultural Equipment, Marine Applications, Industrial Equipment and Most Diesel Engines
Includes:
- FASS Industrial Series PLUS Fuel System — INDP290G
- FASS Drop-In Series Universal HD Fuel Air Separation System — DIFSHD3001
When maximum fuel system protection, reliability, and uptime matter, the FASS Ultimate Industrial Fuel System Upgrade combines two of our most advanced heavy-duty fuel system technologies into one complete package.
The Industrial Series PLUS provides dependable fuel delivery, Extreme water separation, Continuous Fuel Polishing, 2-micron absolute filtration, and FASS air/vapor separation technology. The Drop-In Series HD System adds an additional high-capacity 2-micron absolute filtration and air-separation stage, providing another level of protection before fuel reaches your diesel injection system.
Together, these systems are engineered for demanding diesel applications where fuel quality, injector protection, and dependable operation are critical.
Ultimate Fuel System Protection
This package combines fuel delivery, water separation, particulate filtration, air/vapor removal, and continuous fuel conditioning into one comprehensive diesel fuel system solution.
- Extreme Water Separation: Removes over 99% of water from diesel fuel through the Industrial Series Extreme Water Separator.
- Dual 2-Micron Absolute Filtration: Both systems utilize high-efficiency synthetic microglass particulate filtration capable of capturing contaminants smaller than OEM filters.
- Advanced Air & Vapor Removal: FASS technology removes entrained air and fuel vapor that can contribute to poor combustion, injector wear, and inconsistent engine performance.
- Continuous Fuel Polishing (CFP): Continuously recirculates fuel through the Extreme Water Separator before it is supplied to the injection system.
- Additional Filtration Protection: The Drop-In Series provides another high-capacity filtration and air-separation stage for demanding commercial and industrial applications.
- Injector & Injection Pump Protection: Cleaner, water-free, air-free fuel helps dramatically extend the life of expensive fuel injection components.
Peace of Mind. Efficiency. Power.
Injector Protection
FASS fuel conditioning technology will TRIPLE the life of your fuel injection system by reducing damaging water, particulates, entrained air, and vapor before they reach the injection system.
Maximized Horsepower
Improved fuel quality promotes better fuel atomization, more consistent injection timing, improved throttle response, and a smoother, more balanced engine.
Optimized MPG
Removing contaminants and entrained air helps promote more efficient and complete combustion, helping maximize fuel economy. Results will vary by application and operating conditions.
Cleaner Operation
Improved fuel quality and combustion can help reduce soot production and DPF regeneration frequency in emissions-equipped diesel engines.
Improved Fuel Lubricity
FASS fuel conditioning technology can improve diesel fuel lubricity by at least 10%, helping protect high-pressure fuel system components.
Industrial Series PLUS Technology
The Industrial Series PLUS serves as the foundation of this Ultimate package, delivering conditioned fuel to your diesel engine while continuously protecting the fuel supply.
Extreme Water Separation
Third-party verified technology removes over 99% of water from diesel fuel, helping protect sensitive injection components from corrosion and premature wear.
Continuous Fuel Polishing
FASS Continuous Fuel Polishing (CFP) technology repeatedly circulates fuel through the Extreme Water Separator before the fuel is delivered to the engine.
Rather than simply filtering the fuel once, CFP continually conditions the fuel supply to help ensure the engine receives the cleanest diesel fuel possible.
2-Micron Absolute Microglass Filtration
High-efficiency synthetic microglass filtration removes extremely fine debris that can pass through many factory filtration systems.
Patented Air/Vapor Removal
FASS technology removes entrained air and fuel vapor that can interfere with fuel delivery, injection timing, fuel atomization, and overall combustion efficiency.
Industrial Series PLUS Features
- 2-micron absolute synthetic microglass particulate filtration
- Removes over 99% of water from diesel fuel
- Patented FASS air/vapor removal technology
- Continuous Fuel Polishing technology
- Improves fuel lubricity by at least 10%
- 1,000,000+ mile motor life
- Approximately 30,000-mile filter life expectancy
- Optional electric fuel heater kits available
- Heavy-duty bolt-on steel mounting brackets
- Designed for demanding commercial and industrial diesel applications
Whisper Technology
Engineered to provide extremely quiet fuel pump operation while maintaining dependable fuel delivery.
Performance Radius Cuts (PRC)
Internal fuel passages utilize smooth radius transitions instead of sharp restrictions to promote more efficient fuel flow throughout the system.
Aluminum Motor Heat Sink
A black anodized aluminum motor heat sink helps lower internal motor temperatures by up to 20°F, helping extend the life of the proven FASS million-mile motor while providing an upgraded finished appearance.
Drop-In Series HD Additional Protection
The FASS Drop-In Series Universal HD Fuel Air Separation System adds another extremely flexible filtration and air-separation stage to the Ultimate package.
Designed for universal diesel applications, the Drop-In Series can be incorporated into a wide variety of fuel system configurations and can operate alongside OEM filtration or as a final filtration stage where appropriate.
Drop-In Series Features
- 2-micron absolute synthetic microglass particulate filtration
- Advanced air and vapor separation
- 500 GPH maximum flow rate
- Rated up to 300 PSI with the included PF1002 particulate filter
- Machined in the USA from 6061-T6 billet aluminum
- Type III hardcoat black anodized finish for corrosion resistance
- Multiple inlet locations for flexible installation
- Can be used with OEM filtration or as a final filtration stage
- Ideal for heavy-equipment and OEM diesel applications
- Universal configuration allows adaptation to a wide range of diesel engines
Drop-In Series Port Configuration
The Drop-In Series provides multiple connection options for flexible mounting and fuel routing:
- 2 × 1/4" male JIC air-separation ports
- 2 × 1/8-27 NPT fuel inlet pressure ports
Fuel inlet and air-separation ports can be utilized from either side of the assembly, while the fuel outlet is positioned on top of the filter base.
Key Benefits of the Ultimate Upgrade
- Maximum Fuel System Protection: Combines water separation, particulate filtration, air/vapor removal, and Continuous Fuel Polishing.
- Additional Filtration Capacity: Adds a second high-capacity synthetic microglass 2-micron absolute filtration stage.
- Improved Reliability: Helps protect injectors, injection pumps, and other expensive fuel system components.
- Reduced Downtime: Cleaner fuel helps reduce fuel-system-related failures in demanding commercial environments.
- Improved Combustion: Cleaner, air-free fuel supports better atomization and more complete combustion.
- Restored Performance: Helps maintain proper fuel delivery, throttle response, horsepower, and injection performance.
- Cleaner Emissions-System Operation: Improved combustion can help reduce soot output and DPF regeneration frequency.
- Cold Weather Confidence: Compatible with available FASS fuel heater options for operation in extreme cold-weather climates.
- Heavy-Duty Construction: Engineered for commercial vehicles, equipment, fleets, and other demanding diesel applications.
Built for More Than Class 8 Trucks
The FASS Ultimate Industrial Fuel System Upgrade is designed for an extremely wide range of diesel-powered applications.
Compatible applications may include:
- Class 8 semi-trucks
- Medium- and heavy-duty commercial trucks
- Fleet vehicles
- Construction equipment
- Agricultural equipment and tractors
- Mining equipment
- Diesel generators
- Rail and locomotive applications
- Material-handling equipment
- Fire and emergency apparatus
- Motorhomes and RVs
- Commercial marine applications
- Industrial diesel engines
- Defense and military applications
- Stationary diesel equipment
- Custom and specialty diesel applications
Because every commercial and industrial diesel application is different, fuel pressure, flow requirements, plumbing configuration, and installation should be verified for the specific engine and fuel system.
Built for Extreme Duty
Commercial diesel engines operate for thousands of hours under conditions that can expose their fuel systems to water, fine particulate contamination, entrained air, heat, vibration, inconsistent fuel quality, and extreme temperatures.
The FASS Ultimate Industrial Fuel System Upgrade was created for applications where preventing one fuel-system failure can mean avoiding thousands of dollars in repairs and costly equipment downtime.
From highway fleets and construction equipment to agriculture, marine, defense, and stationary diesel applications, this package provides an exceptionally comprehensive approach to diesel fuel conditioning.
Warranty Coverage
Industrial Series PLUS
5-Year Limited Warranty with required product registration.
Drop-In Series
Limited Lifetime Warranty with required product registration.
Warranty coverage applies according to the individual warranty terms of each FASS product included in the package.
Why Choose FASS?
At FASS, we don't rush products to market. We “Strive for perfection & settle for excellence.”
FASS Fuel Systems are engineered around one goal: supplying your diesel engine with the cleanest, most consistent fuel possible while protecting some of the most expensive components in the fuel system.
With proven water separation, 2-micron absolute filtration, patented air/vapor removal, Continuous Fuel Polishing, heavy-duty construction, and an exceptionally low system failure rate, FASS technology is trusted by diesel owners, fleets, equipment operators, and commercial applications across the country.
For operators who want the highest level of fuel system protection FASS can provide, the FASS Ultimate Industrial Fuel System Upgrade combines our Industrial Series PLUS and Drop-In Series HD technology into one comprehensive solution engineered for reliability, longevity, performance, and maximum uptime.
