Stealth MACH-1 (64mm) HE300VG Turbo - 2019-2024 Dodge RAM 6.7L Cummins - CPS200257

Calibrated Power Stealth MACH-1 64mm HE300VG Turbo – 2019–2024 Ram 6.7L Cummins

Part Number: CPS200257

Upgrade the power, towing capability, and reliability of your 2019–2024 Ram 2500 or 3500 6.7L Cummins with the Calibrated Power Stealth MACH-1 64mm HE300VG VGT Turbo. Designed as a direct bolt-on replacement for the factory turbocharger, the Stealth MACH-1 increases airflow and performance while maintaining quick spool-up, excellent everyday drivability, and full factory exhaust-brake operation.

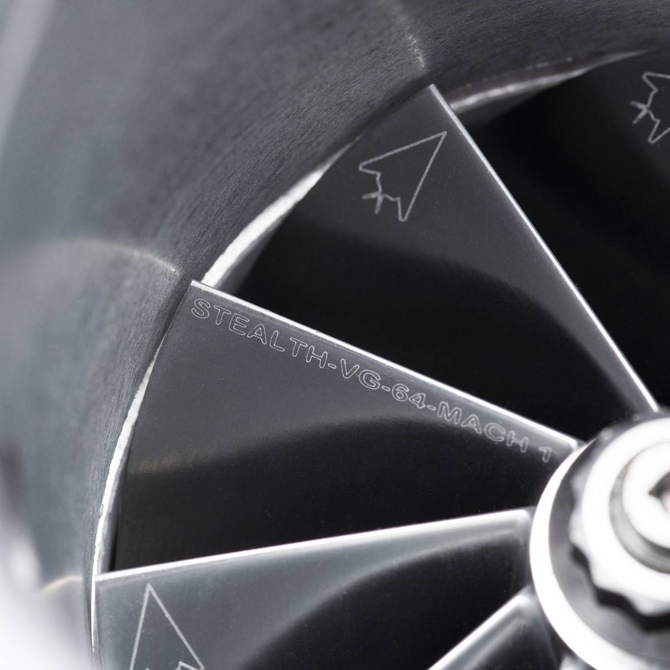

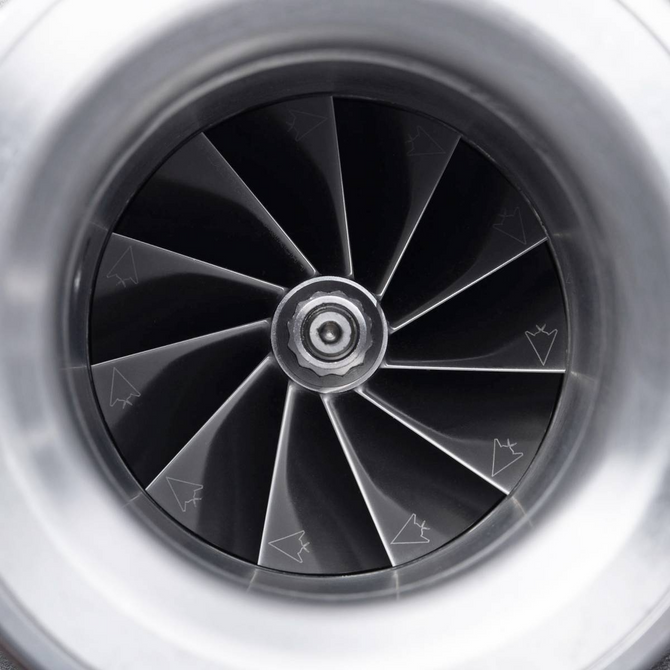

The Stealth MACH-1 features a 64mm-class, 11-blade extended-tip billet compressor wheel manufactured from lightweight, high-strength 2618 aluminum alloy. Its advanced extended-tip design provides a wider operating range and substantially more airflow than the stock compressor while helping eliminate compressor surge during towing and other high-load conditions.

The upgraded compressor is capable of moving approximately 72 pounds of air per minute compared to approximately 48 pounds per minute from the factory unit. This additional airflow allows the turbo to support more than 700 horsepower and produce over 41 PSI of boost at sea level with proper tuning and supporting modifications.

On the exhaust side, an oversized 67mm 10-blade turbine wheel provides increased exhaust flow and improved energy capture. The custom nickel-alloy turbine is approximately 25% larger at the inducer and 30% larger at the exducer than the factory turbine. This larger, more efficient design helps reduce drive pressure, lower exhaust gas temperatures, and improve performance under sustained load.

Calibrated Power’s High Flow Vane technology uses a custom billet nozzle assembly with taller and wider vanes to reduce restriction and direct more exhaust energy into the turbine wheel. This upgraded variable-geometry system helps the larger turbo maintain spool-up and throttle response comparable to the factory charger while providing improved performance at higher engine speeds.

The Stealth MACH-1 has been tested to approximately 600 RWHP with factory emissions equipment and can support more than 700 RWHP with the proper fuel system, tuning, and supporting upgrades. No special tuning is required for installation, allowing the turbo to operate correctly on a completely stock truck.

A brand-new genuine Holset HE300VG electronic actuator is included for dependable vane control and proper VGT operation. The complete turbocharger is manufactured from brand-new components, carries no core charge, and requires no core return.

Features and Benefits

• Fits 2019–2024 Ram 2500 and 3500 trucks
• Designed for the 6.7L Cummins diesel engine
• Direct bolt-on replacement for the factory HE300VG turbocharger
• Supports more than 700 horsepower with proper supporting modifications
• Tested to approximately 600 RWHP with factory emissions equipment
• Provides approximately 30% more overall airflow than the stock turbo
• Compressor wheel moves approximately 72 pounds of air per minute
• Factory compressor flows approximately 48 pounds per minute
• Capable of producing more than 41 PSI of boost at sea level
• 64mm-class 11-blade extended-tip billet compressor wheel
• Actual compressor inducer measurement of approximately 62.45mm
• Compressor wheel manufactured from 2618 aluminum alloy
• Lightweight, high-strength compressor construction
• Designed to reduce compressor surge while towing
• Expertly balanced for durability and long service life
• 67mm 10-blade nickel-alloy turbine wheel
• Turbine inducer approximately 25% larger than stock
• Turbine exducer approximately 30% larger than stock
• Improved exhaust-energy capture
• Reduced drive pressure under heavy load
• Lower exhaust gas temperatures
• Improved EGT control for towing and performance use
• Calibrated Power High Flow Vane technology
• Custom billet VGT nozzle assembly
• Taller and wider vanes reduce exhaust restriction
• Quick spool-up comparable to the factory turbo
• Improved boost-to-drive-pressure ratio
• Retains full factory exhaust-brake operation
• Distinctive Stealth turbo and exhaust sound
• Works on stock or tuned trucks
• No special performance tuning required
• Includes a new genuine Holset HE300VG actuator
• Manufactured from brand-new components
• No core charge or core return required
• One-year manufacturer warranty

Vehicle Fitment

• 2019-2024 Ram 2500-3500 6.7L Cummins

Who Is This Turbo Best For?

The Calibrated Power Stealth MACH-1 is an excellent choice for Ram Cummins owners who:

• Need to replace a damaged or worn factory HE300VG turbocharger
• Want more airflow without converting to a fixed-geometry turbo
• Frequently tow trailers or haul heavy loads
• Want improved EGT and drive-pressure control
• Need quick, factory-like spool-up and throttle response
• Want to retain the factory exhaust brake
• Have a completely stock truck and do not want special tuning
• Plan to add custom tuning or fuel-system upgrades
• Want enough airflow to support a future 600–700+ HP build
• Want a brand-new genuine Holset actuator included
• Do not want to pay a core charge or return the original turbo

Important Notes

No special performance tuning is required, and the turbo can be operated on a stock truck. Custom tuning and upgraded fuel-system components will be required to reach higher horsepower and boost levels.

Actual horsepower, boost, and airflow will vary depending on tuning, fuel delivery, supporting modifications, engine condition, elevation, and dyno type. Professional installation and actuator setup according to manufacturer procedures are recommended.

This turbo has undergone testing to demonstrate compliance with applicable federal emissions requirements and is marketed as a 49-state turbocharger. It is not available for shipment to California.

Replaces the following OEM Part Numbers: 68444771AA, 68444771AB, HE300VG

The Stealth Mach 1 64 HE300VG has undergone testing to demonstrate that it complies with federal emissions regulations. This testing provides the reasonable basis required by the standards defined by the EPA. Here you can find a PDF which documents this testing.

Supersedes model DM1LO2080203000
