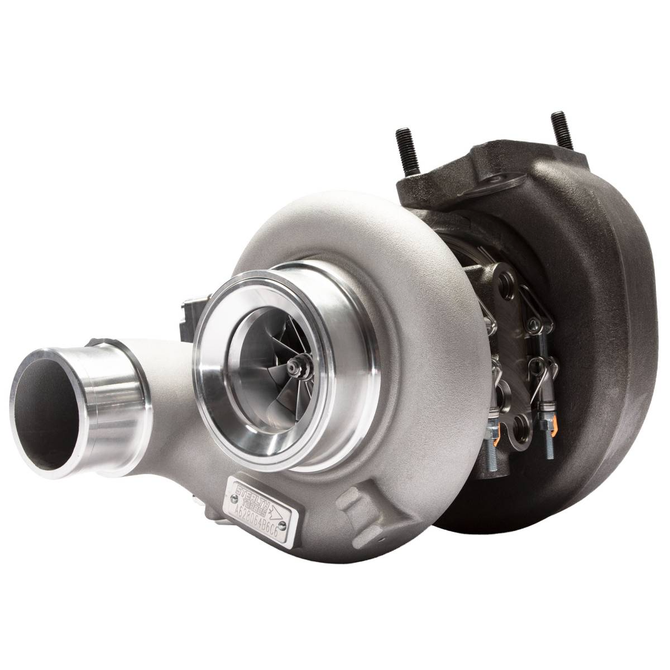

Upgrade the power, towing performance, and reliability of your 2007.5–2018 Dodge Ram or Ram 2500/3500 6.7L Cummins with the Calibrated Power Stealth MACH-1 64mm VGT Turbo. Designed as a direct bolt-on replacement for the factory Holset HE351VE or HE300VG turbocharger, the Stealth MACH-1 delivers substantially increased airflow while maintaining quick spool-up, factory exhaust-brake operation, and excellent everyday drivability.

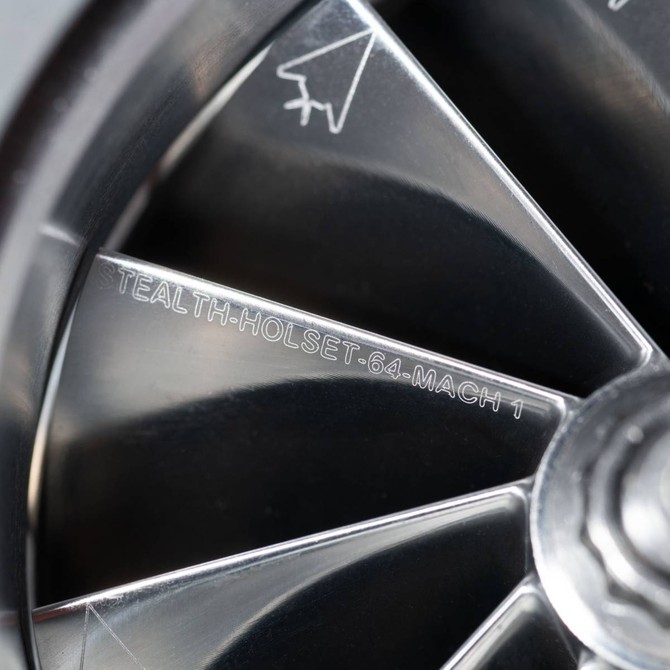

The Stealth MACH-1 features a 64mm-class, 11-blade extended-tip billet compressor wheel precision-machined from high-strength 2618 aluminum alloy. With approximately 30% more airflow than the factory turbo, this advanced compressor design supports higher horsepower while helping prevent compressor surge during towing and other high-load conditions.

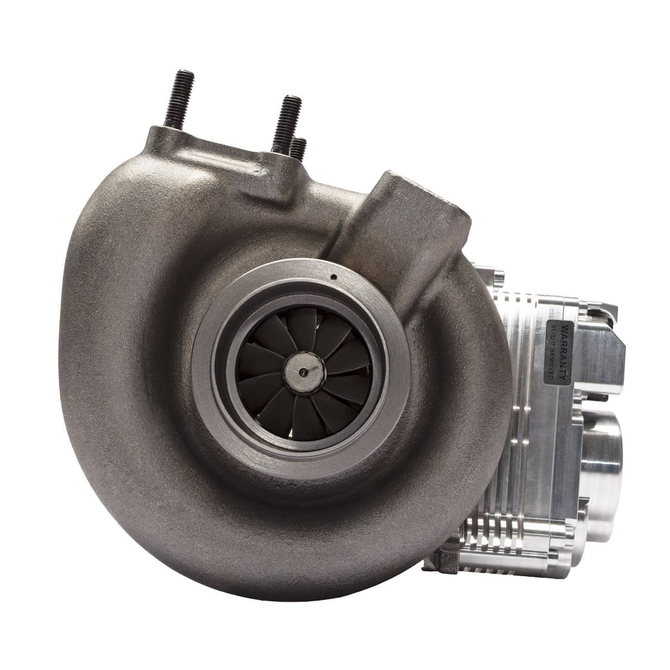

On the exhaust side, an oversized 67mm 10-blade turbine wheel manufactured from heat-resistant 713C nickel alloy provides increased flow and durability. Approximately 25% larger than the factory turbine, it reduces drive pressure under load, improves exhaust-energy management, and helps maintain lower exhaust gas temperatures. The 10-blade design also produces the distinctive Stealth turbo whistle Cummins owners want.
Calibrated Power’s exclusive Stealth nozzle ring uses taller and wider VGT vanes to capture more exhaust energy and improve turbine efficiency. This upgraded vane and shroud-plate assembly helps the larger turbine spool as quickly as the factory turbo while providing improved airflow, boost control, and EGT management at higher engine loads.
The Stealth MACH-1 provides enough airflow to support more than 700 RWHP with the correct fuel system and supporting modifications. It has also been dyno-verified to support approximately 650 RWHP with factory emissions equipment retained. The turbo is capable of producing approximately 42–45 PSI of boost at sea level, depending on the truck’s tuning and supporting components.
A major advantage of the CPS200245 is its included ITI billet AutoSynq actuator. The actuator uses self-calibrating software with a full vane sweep, eliminating the need for dealer programming or turbo relearn procedures. A heavy-duty brushless motor provides quicker response, increased precision, and longer service life than traditional brushed actuator motors. An adapter harness is included for 2007.5–2012 trucks originally equipped with the HE351VE turbocharger.
Built from brand-new components and electronics, this complete turbocharger requires no core return and can be installed on a stock or tuned truck without special tuning.
Features and Benefits
Fits 2007.5–2018 Dodge Ram and Ram 2500/3500 trucks
Designed for the 6.7L Cummins diesel engine
Direct bolt-on replacement for HE351VE and HE300VG turbochargers
Airflow capable of supporting more than 700 RWHP
Dyno-verified to support approximately 650 RWHP with factory emissions equipment
Approximately 30% more airflow than the factory turbo
Capable of approximately 42–45 PSI of boost at sea level
Actual compressor inducer measurement of approximately 62.45mm
Compressor wheel manufactured from 2618 aluminum alloy
Compressor design helps prevent surge while towing
67mm 10-blade 713C nickel-alloy turbine wheel
Turbine wheel approximately 25% larger than stock
Reduced drive pressure during high-load operation
Better EGT control for towing and performance use
Calibrated Power exclusive Stealth nozzle ring
Upgraded VGT vane and shroud-plate assembly
Taller and wider vanes improve turbine efficiency
Quick spool-up comparable to the factory turbo
Retains full factory exhaust-brake functionality
Distinctive Stealth turbo and exhaust sound
Works on completely stock or tuned trucks
No special performance tuning required
Brand-new turbocharger components and electronics
Includes upgraded billet AutoSynq actuator
Self-calibrating actuator requires no dealer programming
Full actuator vane sweep helps keep the turbine vanes clean
Heavy-duty brushless actuator motor
Enhanced vane and boost control
Billet actuator housing improves strength and durability
Retains proper actuator coolant flow
Includes adapter cable for 2007.5–2012 HE351VE applications
No core charge or core return required
12-month manufacturer warranty
Vehicle Fitment
2007.5–2009 Dodge Ram 2500 6.7L Cummins
2007.5–2009 Dodge Ram 3500 6.7L Cummins
2010–2012 Ram 2500 6.7L Cummins
2010–2012 Ram 3500 6.7L Cummins
2013–2018 Ram 2500 6.7L Cummins
2013–2018 Ram 3500 6.7L Cummins
Who Is This Turbo Best For?
The Calibrated Power Stealth MACH-1 is an excellent choice for Cummins owners who:
Need to replace a failed HE351VE or HE300VG turbocharger
Want improved performance without converting to a fixed-geometry turbo
Frequently tow trailers or operate under heavy load
Want lower EGTs and improved drive-pressure control
Need quick, factory-like spool-up and throttle response
Want to retain the factory exhaust brake
Have a completely stock truck and do not want special tuning
Have a tuned truck with upgraded fuel-system components
Want enough airflow to support a future 650–700+ RWHP build
Want a new, self-calibrating actuator included with the turbo
Do not want to pay a core charge or return the original turbo
Important Notes
No special tuning is required, and the turbo can be installed on a completely stock truck. Proper custom tuning and upgraded fuel-system components will be required to reach higher horsepower levels.
Advertised boost and horsepower numbers will vary based on tuning, fuel delivery, supporting modifications, vehicle condition, elevation, and dyno type. Professional installation is recommended.
This turbo has undergone testing to demonstrate compliance with applicable federal emissions requirements. It is not available for shipment to California. Confirm all state and local requirements before purchasing or installing.
WARNING : This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov
