2019 - 2024 Dodge RAM 6.7L (SO) Cummins
2500/3500 Standard Output
Images for reference only and may differ slightly by model/year engine.

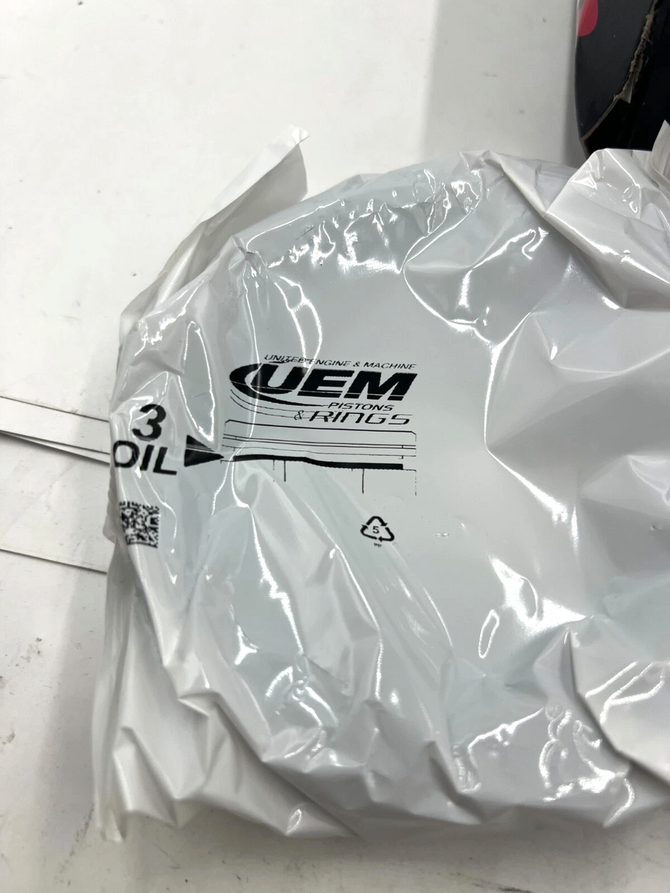

Part #20016.STD, 20016.5MM, or 20016.1.0MM
UEM piston ring set is available in standard, .5mm oversize and 1.0mm oversize to suit your builds needs.
20016.STD = 4.212" / 107mm with 3.0Kmm 2.50mm 3.50mm Ring Packs
20016.5MM = 4.232''/ 107.5mm 3.0Kmm 2.50mm 3.50mm Ring Packs
20016.1.0MM = 4.252" / 108mm 3.0Kmm 2.50mm 3.50mm Ring Packs
| Oversized | STD, 0.5MM, 1.0MM |
|---|---|
| Cylinder Quantity | 6 |
| Top Compression Ring Thickness IN | 0.118 |
| Top Compression Ring Thickness MM | 3.0 |
| Top Ring Face Design | Barrel Face |
| 2nd Ring Face Design | Taper Face |
| 2nd Ring Material | Cast Iron / Phosphate |
| Oil Ring Thickness IN | 0.137 |
| Oil Ring Thickness MM | 3.5 |
| Oil Ring Design | 2 Piece Oil |
| File Fit | No |
WARNING : This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov
