Built to last with more durable components than stock
Lighter rotating assembly than stock
Lightning fast spool-up and immediate throttle response
Loud turbo whistle from 9-blade turbine
Retain your factory exhaust brake
Designed to prevent compressor surge even while towing
Brand New Parts - No core charges
12-month Warranty
Does NOT include actuator. You can retain your factory actuator, but it must be recalibrated professionally to stock Minimum and Maximum Vane Position tables to not void your turbocharger's warranty.

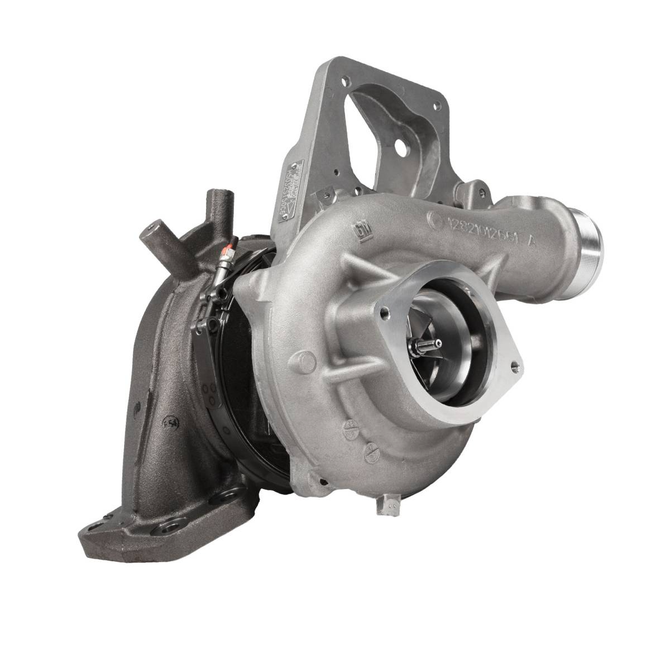

The 2024-2026 L5P / L5D Stealth STR Turbo by Duramaxtuner.com is specifically designed for the 2024, 2025, and 2026 Chevy Silverado and GMC Sierra 2500, 3500, 4500, 5500, and 6500 models as well as 2024+ International CV (Medium Duty) models.
Don't Just Replace Your Stock L5P/L5D Turbo!
There's no better feeling than getting to upgrade your parts instead of just replacing them. That's exactly why Calibrated Power made the Stealth STR for 2024, 2025, and 2026 6.6L L5P Duramax's. Designed to improve turbo performance and reliability while still coming in around the cost of a stock turbo replacement.
The STR has also been designed with easy tuneability in mind. Unlike other "drop-in" upgrades that require much more than just dropping in a turbo to get up and running. The STR requires no custom tuning to get up and running and has been designed to be as simple to tune for as possible. Say goodbye to lengthy tuning and multiple tune revisions!
Features & Benefits:
Airflow to support up to 625HP
Supporting modifications required
Tested and proven to support up to 625HP even with stock emission equipment

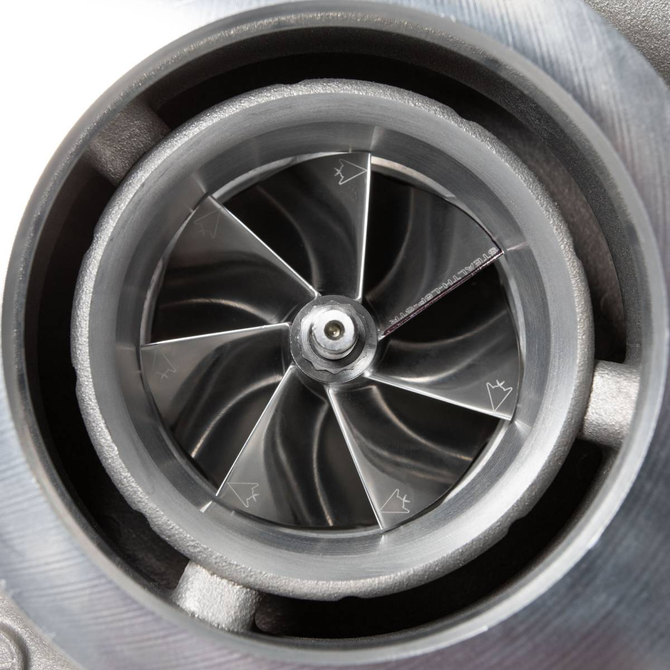

Custom Billet Compressor Wheel
63mm 7x7-Blade extended tip billet compressor wheel
Stronger and lighter than stock
Provides a wide efficiency range
Lightweight and high strength billet construction
Provides 66lbs/min mass airflow compared to 60lbs/min stock
Custom 9-Blade Turbine Wheel
Larger than stock
More aggressive blade angle for better exhaust energy capture
Sized to maximize throttle response
50% Thicker turbine blades for added heat tolerance
Lower drive pressure under high loads
Lower EGT's under high loads
Boosts the effectiveness of compressor wheel upgrade
Produces a distinctive Stealth turbo whistle
Rotating Assembly (Compressor and Turbine Wheels)
6% lighter than the stock rotating assembly
Provides lightning fast spool-up
Boosts turbo efficiency and lowers drive pressures
Precision balanced in-house
Brand New Parts
No Core Charges
This Turbo is designed for you if you...
Need a stock turbo replacement for your 2024+ 6.6L Duramax
Want to upgrade your stock 6.6L L5P/L5D turbo
Have reliability as your top priority
Have a completely stock or lightly modified truck
Daily drive or tow with your truck often
Want more power with excellent street performance
Important Notice:
This turbo must only be operated with tuning that uses stock Minimum and Maximum Vane Position tables. Failure to do so can lead to excessive exhaust pressure and boost which may shorten the life of the turbo or engine and may void the turbo warranty.
Damage caused as a result of non-stock vane position tuning modifications will be the responsibility of the owner, not Calibrated Power Solutions Inc.
Supersedes DM1QQ1070103000 Replaces OEM Part #s 12709701044, 11547786, 12683985, 12689094
WARNING : This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov
